w113959

00010DB94E Bosch
0001105205 Bosch
0001106205 Bosch
0001109205 Bosch
0001109304 Bosch
0001109305 Bosch
0001109324 Bosch
0001109325 Bosch
0001109328 Bosch
0001109329 Bosch
0001109387 Bosch
0001109388 Bosch



Read more
€89.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

First check both relays in the vehicle (common problem)

Information:

Voltage 12

KW 2.0

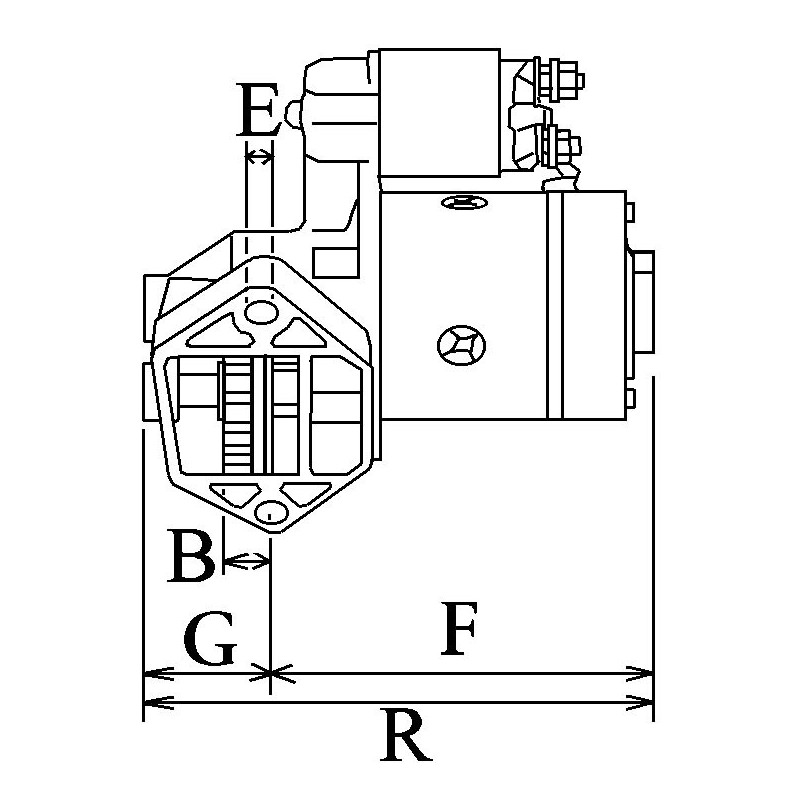

A = Mount flange 89.00

B = Drive distance 36.00

F = Distance / Back 185.50

G = Distance / Front 63.00

H = Nbr of teeth 12,13, B+ M8

Gear type Gr

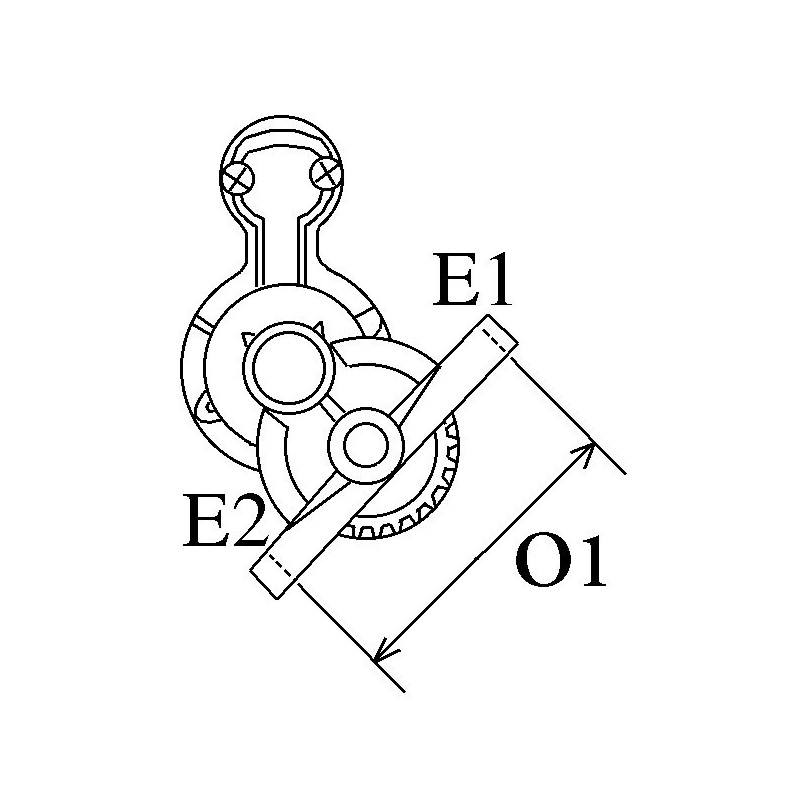

O = Distance 89.00

Rotation Cr

Nbr of mounting holes 2 (0)

Drive Tipo Steel

R = Total length mm 261.50

generic brand

Replacing :

00010DB94E
0001109205
0001109205+
0001109205CO
0001109205R
0001109304
0001109305
0001109305CO
0001109324
0001109324CO
0001109325
0001109325CO
0001109325SP
0001109328
0001109329
0001109329CO
0001109387
0001109388
0001109388CO
0001109391
0001109392
01252761
063521093240
0986021810
113959
1206375
1372739
1385378
1574338
1669558
1709189
212554
231486
253414
33243
33243N
4873SP
5802AS
5802FC
590551122
590551122000
590551122010
590551122015
590551122210
590551122210001
590551122210002
590551122210003
590551122210004
590551122210005
590551122210006
590551122210101
590551122215
590551122230
590551122500
590551122506
590551122550
590551122750
590551122900
6C1T11000AA
6C1T11000AB
6C1T11000AC
6C1T11000AD
6C1T11000AE
6C1T11000AF
726151
7C1911000AB
7H1211002AB
7H1211002AC
8021810F
8080334F
860821
8EA012527611
8EA738258841
910706
95681447
9658144780
AMDF5C11000AA
CS1421
D7R71
D7R71+
D7R71R
DRS0242
DRT1810
F032US0067
F032US0067K2F
HCS1421
KTR1181102244
LR010547
LR025840
LRS02243
NAD500270
OSM11240
STR1386sa
STR1963sa
STR2213A

= BOSCH 0001105205 / 0001109205 / 0001109304 / 0001109305 / 0001109324 / 0001109325 / 0001109328 / 0001109329 / 0001109387 / 0001109388 / 0001109391 / 0001109392 / 0001115092 / 0001115093 / 0986021810

= FORD 1372739 / 1385378 / 1574338 / 1669558 / 1709189 / 1740947 / 6C1T11000AA / 6c1t11000ab / 6c1t11000ac / 6c1t11000ad / 6C1T11000AE / 6C1T11000AF / 7C1911000AB  / 7H1211002AB / 7H1211002AC / CC1T11000AB

= FIAT 95681447 / 9658144780 / 9675092580

= PEUGEOT / CITROEN 9675092580 / 5802AS / 5802FC / 675092580

= ROVER NAD500270 / 7H1211002AA / 7H1211002AB

= DRS0242 / DRT1810 / KTR1181102244 / LR010547 / LR025840 / LRS02243 / NAD500270 / 8EA738258841

fits:

Brand Model Tipo Year
CITROEN Jumper 2.2 HDi [4HU(P22DTE)] 01/04/06
CITROEN Jumper 2.2 HDi [4HV(P22DTE)] 01/04/06
CITROEN Jumper 2.2 HDi 110 [4HG(P22DTE)] 01/07/11
CITROEN Jumper 2.2 HDi 120 [4HU(P22DTE)] 01/04/06
CITROEN Jumper 2.2 HDi 130 [4HH(P22DTE)] 01/07/11
CITROEN Jumper 2.2 HDi 150 [4HJ(P22DTE)] 01/07/11
FIAT Ducato 2.2 Multijet [4HV] 01/07/06
FORD Tourneo 2.2 TDCi [CVFF] 01/12/12
FORD Tourneo 2.2 TDCi [CYF4] 01/12/12
FORD Tourneo 2.2 TDCi [DRF4] 01/12/12
FORD Transit 2.2 TDCi [CVF5] 01/05/14
FORD Transit 2.2 TDCi [CVFF] 01/12/12
FORD Transit 2.2 TDCi [CYF4] 01/12/12
FORD Transit 2.2 TDCi [CYF5] 01/05/14
FORD Transit 2.2 TDCi [CYFA] 01/10/11
FORD Transit 2.2 TDCi [CYFB] 01/10/11
FORD Transit 2.2 TDCi [CYFC] 01/10/11
FORD Transit 2.2 TDCi [CYFD] 01/10/11
FORD Transit 2.2 TDCi [CYFG] 01/05/14
FORD Transit 2.2 TDCi [DRF4] 01/12/12
FORD Transit 2.2 TDCi [DRF5] 01/05/14
FORD Transit 2.2 TDCi [DRFA] 01/10/11
FORD Transit 2.2 TDCi [DRFB] 01/10/11
FORD Transit 2.2 TDCi [DRFC] 01/10/11
FORD Transit 2.2 TDCi [DRFD] 01/10/11
FORD Transit 2.2 TDCi [DRFE] 01/10/11
FORD Transit 2.2 TDCi [DRFF] 01/05/14
FORD Transit 2.2 TDCi [DRFG] 01/05/14
FORD Transit 2.2 TDCi [P8FA] 01/07/06
FORD Transit 2.2 TDCi [P8FB] 01/07/06
FORD Transit 2.2 TDCi [PGFA] 01/10/07
FORD Transit 2.2 TDCi [PGFB] 01/10/07
FORD Transit 2.2 TDCi [QVFA] 01/07/06
FORD Transit 2.2 TDCi [QWFA] 01/07/06
FORD Transit 2.2 TDCi [SRFA] 01/10/08
FORD Transit 2.2 TDCi [SRFB] 01/10/08
FORD Transit 2.2 TDCi [SRFC] 01/10/08
FORD Transit 2.2 TDCi [SRFD] 01/10/08
FORD Transit 2.2 TDCi [SRFE] 01/10/08
FORD Transit 2.2 TDCi [UHFA] 01/10/07
FORD Transit 2.2 TDCi [UHFB] 01/10/07
FORD Transit 2.2 TDCi [UHFC] 01/10/07
FORD Transit 2.2 TDCi Tourneo [PGFA] 01/10/07
FORD Transit 2.2 TDCi Tourneo [PGFB] 01/10/07
FORD Transit 2.2 TDCi Tourneo [QVFA] 01/07/06
FORD Transit 2.2 TDCi Tourneo [QWFA] 01/07/06
FORD Transit 2.2 TDCi Tourneo [SRFA] 01/10/08
FORD Transit 2.2 TDCi Tourneo [SRFB] 01/10/08
FORD Transit 2.2 TDCi Tourneo [SRFC] 01/10/08
FORD Transit 2.2 TDCi Tourneo [SRFD] 01/10/08
FORD Transit 2.2 TDCi Tourneo [SRFE] 01/10/08
FORD Transit 2.4 TDCi [H9FB] 01/07/06
FORD Transit 2.4 TDCi [H9FD] 01/04/06
FORD Transit 2.4 TDCi [H9FD] 01/07/06
FORD Transit 2.4 TDCi [JXFA] 01/04/06
FORD Transit 2.4 TDCi [JXFA] 01/07/06
FORD Transit 2.4 TDCi [JXFC] 01/04/06
FORD Transit 2.4 TDCi [JXFC] 01/07/06
FORD Transit 2.4 TDCi [PHFA] 01/07/06
FORD Transit 2.4 TDCi [PHFC] 01/07/06
FORD Transit 2.4 TDCi 4x4 [H9FB] 01/11/06
FORD Transit 3.2 TDCi [SAFA] 01/09/07
FORD Transit 3.2 TDCi [SAFA] 01/02/08
FORD Transit 3.2 TDCi [SAFB] 01/09/07
FORD Transit 3.2 TDCi [SAFB] 01/02/08
LAND ROVER Defenfromr 2.2 [ZSD422] 01/08/11
LAND ROVER Defenfromr 2.2 TD4 [ZSD422] 01/08/11
LAND ROVER Defenfromr 2.2 TD4 4x4 01/02/15
LAND ROVER Defenfromr 2.4 TD TD4 [244DT] 01/05/07
PEUGEOT Boxer 2.2 HDi [4HG(P22DTE)] 01/03/11
PEUGEOT Boxer 2.2 HDi [4HH(P22DTE)] 01/03/11
PEUGEOT Boxer 2.2 HDi [4HJ(P22DTE)] 01/03/11
PEUGEOT Boxer 2.2 HDi [4HU(P22DTE)] 01/04/06
PEUGEOT Boxer 2.2 HDi [4HV(P22DTE)] 01/04/06

                               NO CORE EXCHANGE NEEDED

                                             TWO YEARS WARRANTY
