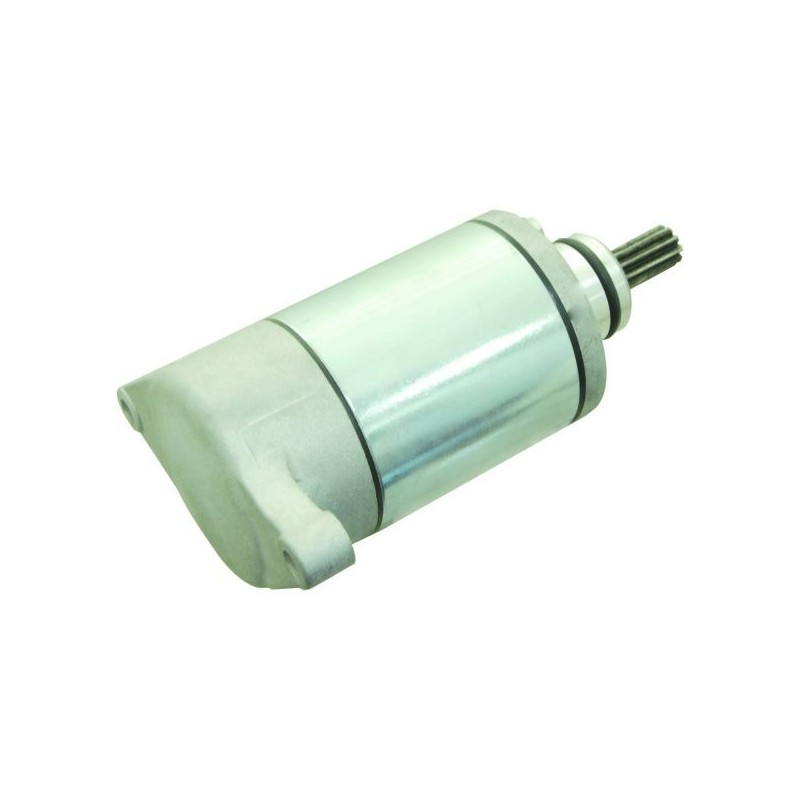

Starter replacing SUZUKI 31100-19B00 / 31100-19B11 / 31100-19B12 / 31100-19B20
=Arctco 3545-003
=ARTIC CAT 3545-003
tecnium 010769

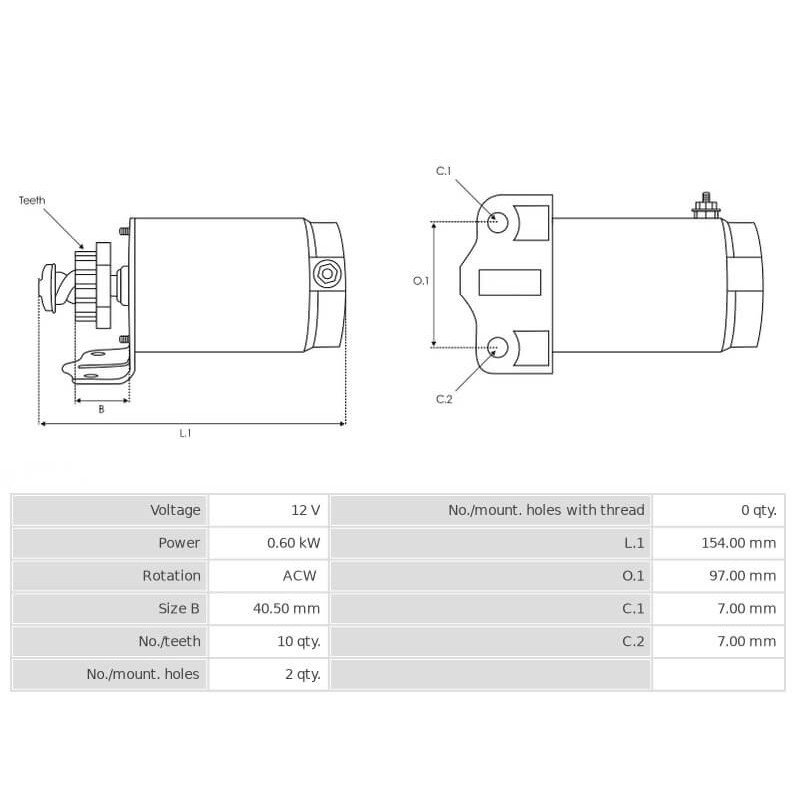

12 Volts - 10 teeth - total length 152 mm - distance between the 2 fixing holes 97 mm - diameter of the starter 62 mm - diameter of the drive 13 mm / length of the drive 23.5 mm - diameter of the ring under the drive 30 mm
Information:
12 Volts - 10 Teeth
Replacing :
| 31100-19B11 | SUZUKI |
| 31100-19B12 | SUZUKI |
| 31100-19B20 | SUZUKI |
| UD19054S | AS-PL |
| 18807 | LESTER |
| 71-26-18807 | WILSON |
| SMU0060 | ARROWHEAD |
| SMU0296 | ARROWHEAD |
| 242-06130 | DIXIE |
| 410-54034 | J&N |
| 18838 | LESTER |
| RS41195 | DELCO |
| 31100-19B00 | SUZUKI |
| 18807N | WAI / TRANSPO |
| 2-2766-MT | WAI / TRANSPO |
| 10439163 | ALANKO |
| 108470 | FARCOM |
| STU1500 | KRAUF |
| 400.904.102.190 | PSH |
| SM14231 | MITSUBA |
| 3545003 | ARCTIC CAT |
| 106-10423 | ROBERT'S |
generic Brand
Mounted on :
| Brand | Model | Typ | Year |
| ARCTIC CAT | 250 2x4 | [249cc] | 01.1999-12.2005 |
| ARCTIC CAT | 250 4x4 | [249cc] | 01.2001-12.2005 |
| ARCTIC CAT | 300 2x4 | [280cc] | 01.1998-12.2003 |
| ARCTIC CAT | 300 4x4 | [280cc] | 01.1998-12.2005 |
| MASSEY FERGUSON | 250 2x4 | [249cc] | 01.2001-12.2005 |
| MASSEY FERGUSON | 250 4x4 | [249cc] | 01.2001-12.2005 |
| MASSEY FERGUSON | 300 2x4 | [280cc] | 01.2000-12.2003 |
| MASSEY FERGUSON | 300 4x4 | [280cc] | 01.2000-12.2005 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1987-12.1987 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1988-12.1989 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1990-12.1991 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1992-12.1995 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1996-12.1996 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1997-12.1997 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1998-12.1998 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1988-12.1989 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1990-12.1991 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1992-12.1997 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1998-12.1999 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.2000-12.2000 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.2001-12.2002 |
| SUZUKI | LT-F300F King Quad | [300cc] | 01.1999-12.1999 |
| SUZUKI | LT-F300F King Quad | [300cc] | 01.2000-12.2000 |
| SUZUKI | LT-F300F King Quad | [300cc] | 01.2001-12.2002 |
| SUZUKI | LT-F4WDX | [250cc] | 01.1991-12.1991 |
| SUZUKI | LT-F4WDX King Quad | [250cc] | 01.1992-12.1995 |
| SUZUKI | LT-F4WDX King Quad | [250cc] | 01.1996-12.1997 |
| SUZUKI | LT-F4WDX King Quad | [250cc] | 01.1998-12.1998 |
