WAGENDASS – French company
20,000 items available

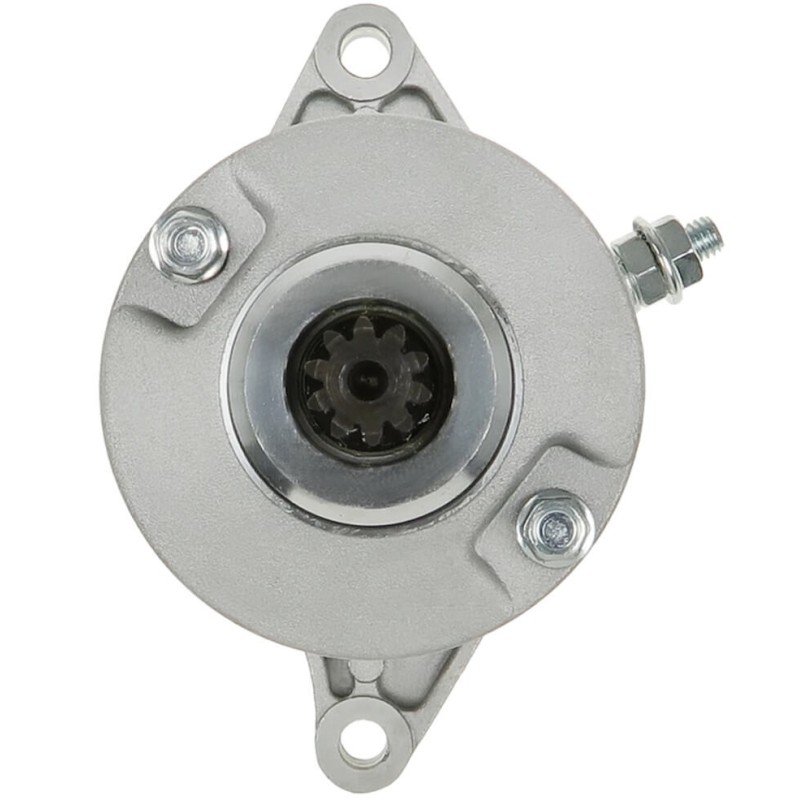

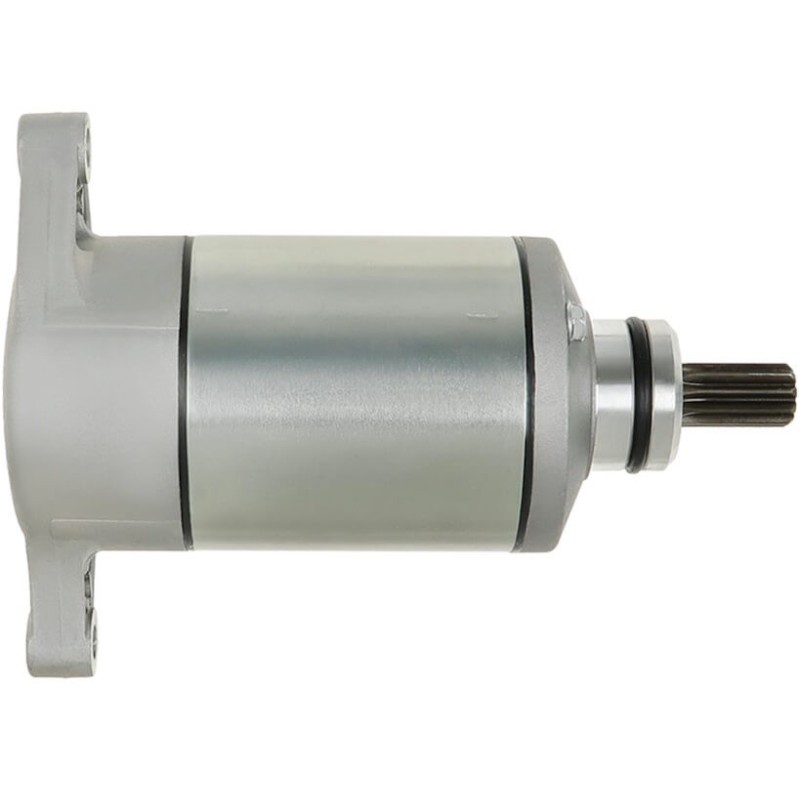

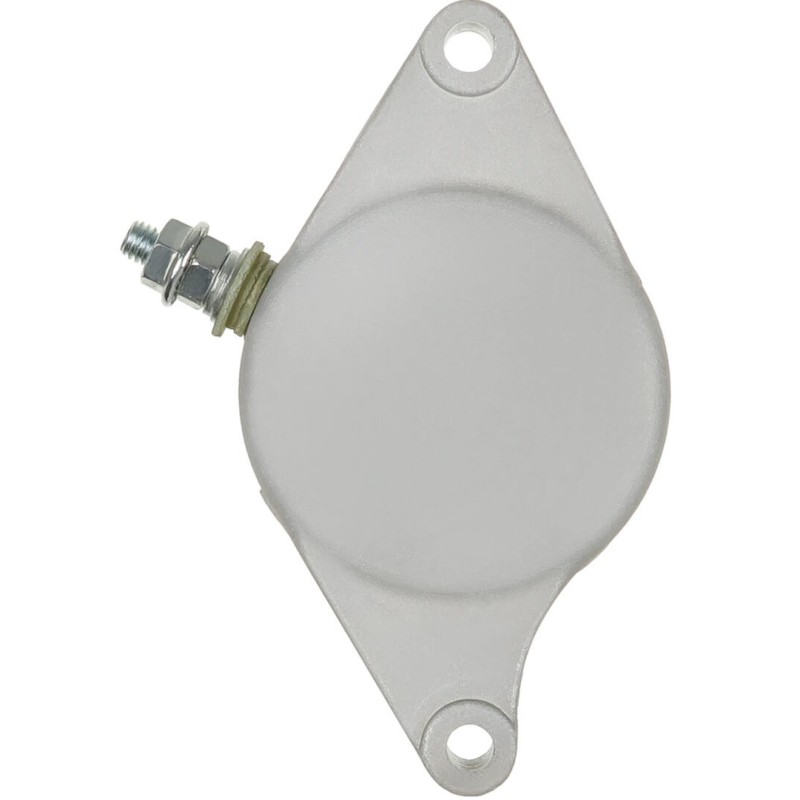

Starter replacing SUZUKI 31100-19B00 / 31100-19B11 / 31100-19B12 / 31100-19B20
=Arctco 3545-003
=ARTIC CAT 3545-003
tecnium 010769

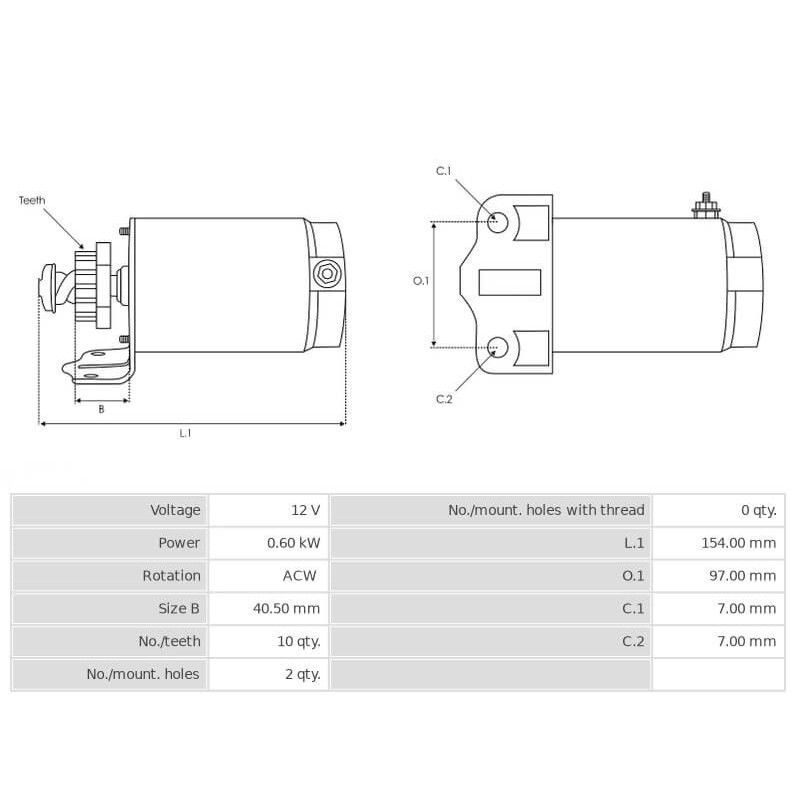

12 Volts - 10 teeth - total length 152 mm - distance between the 2 fixing holes 97 mm - diameter of the starter 62 mm - diameter of the drive 13 mm / length of the drive 23.5 mm - diameter of the ring under the drive 30 mm
| 10439163 | ALANKO |
| 3545003 | ARCTIC CAT |
| SMU0060 | ARROWHEAD |
| SMU0296 | ARROWHEAD |
| UD19054S | AS-PL |
| RS41195 | DELCO |
| 242-06130 | DIXIE |
| 108470 | FARCOM |
| 410-54034 | J&N |
| STU1500 | KRAUF |
| 18807 | LESTER |
| 18838 | LESTER |
| SM14231 | MITSUBA |
| 106-10423 | ROBERT'S |
| 31100-19B00 | SUZUKI |
| 31100-19B11 | SUZUKI |
| 31100-19B12 | SUZUKI |
| 31100-19B20 | SUZUKI |
| 18807N | WAI |
| 2-2766-MT | WAI |
| 400.904.102.190 | WAI |
| 71-26-18807 | WILSON |
Why buy from WAGENDASS?
WAGENDASS is a brand registered and recognized within the European Union.
We have collaborated with our suppliers for 40 years to offer you brand-new equipment
backed by a two-year warranty at the best price on the market,
We are dedicated to providing you with reliable, fast service for repairs and troubleshooting.
Information:
12 Volts - 10 Teeth
Replacing :
| 31100-19B11 | SUZUKI |
| 31100-19B12 | SUZUKI |
| 31100-19B20 | SUZUKI |
| UD19054S | AS-PL |
| 18807 | LESTER |
| 71-26-18807 | WILSON |
| SMU0060 | ARROWHEAD |
| SMU0296 | ARROWHEAD |
| 242-06130 | DIXIE |
| 410-54034 | J&N |
| 18838 | LESTER |
| RS41195 | DELCO |
| 31100-19B00 | SUZUKI |
| 18807N | WAI / TRANSPO |
| 2-2766-MT | WAI / TRANSPO |
| 10439163 | ALANKO |
| 108470 | FARCOM |
| STU1500 | KRAUF |
| 400.904.102.190 | PSH |
| SM14231 | MITSUBA |
| 3545003 | ARCTIC CAT |
| 106-10423 | ROBERT'S |
| Brand | Model | Type | Year |
| ARCTIC CAT | 250 2x4 | [249cc] | 01.1999-12.2005 |
| ARCTIC CAT | 250 4x4 | [249cc] | 01.2001-12.2005 |
| ARCTIC CAT | 300 2x4 | [280cc] | 01.1998-12.2003 |
| ARCTIC CAT | 300 4x4 | [280cc] | 01.1998-12.2005 |
| MASSEY FERGUSON | 250 2x4 | [249cc] | 01.2001-12.2005 |
| MASSEY FERGUSON | 250 4x4 | [249cc] | 01.2001-12.2005 |
| MASSEY FERGUSON | 300 2x4 | [280cc] | 01.2000-12.2003 |
| MASSEY FERGUSON | 300 4x4 | [280cc] | 01.2000-12.2005 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1987-12.1987 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1988-12.1989 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1990-12.1991 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1992-12.1995 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1996-12.1996 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1997-12.1997 |
| SUZUKI | LT-4WD Quadrunner | [250cc] | 01.1998-12.1998 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1988-12.1989 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1990-12.1991 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1992-12.1997 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.1998-12.1999 |
| SUZUKI | LT-F250 Quadrunner | [250cc] | 01.2000-12.2000 |
Do you have any questions?
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
