Starter replacing Mistuba SM710-01 / HONDA 31200-RNA-A50

starter bosch / wai

Information:

Rotation Cr

KW 1.2

Voltage 12

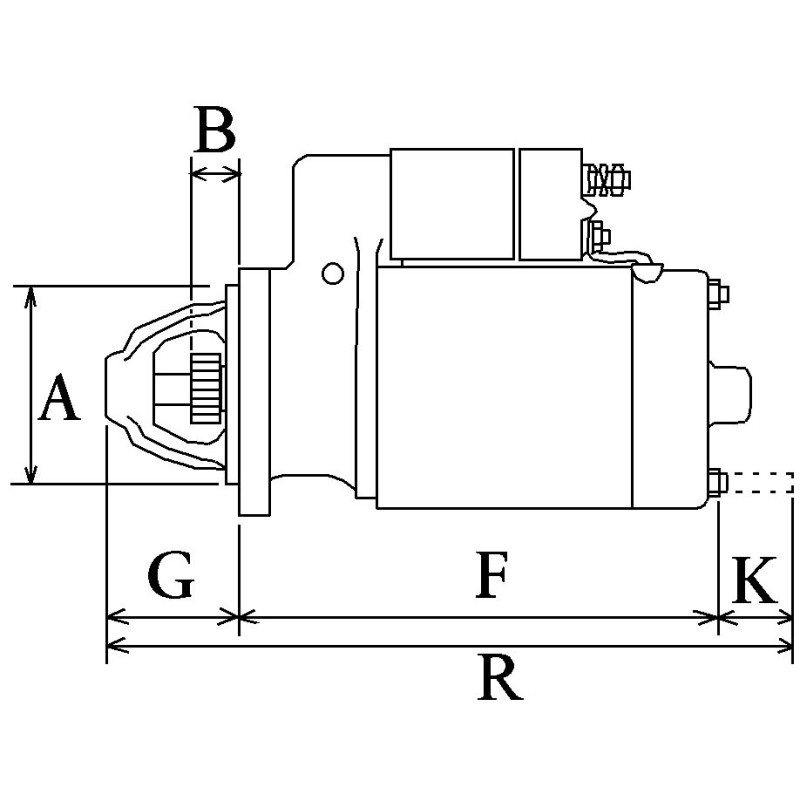

A = Mount flange 75.00

B = Drive distance 34.00

F = Distance / Back 150.00

G = Distance / Front 64.00

H = Nbr of teeth 9

B+ M8

Gear type Gr

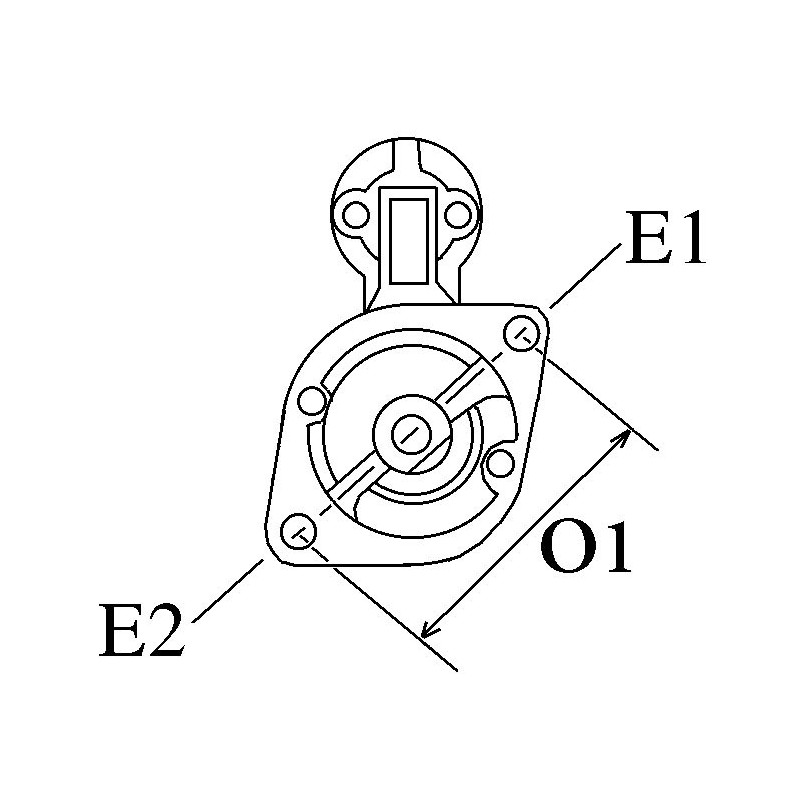

O = Distance mm 125.00

Nbr of mounting holes 2 (0)

R = Total length mm 215.00

                 NO CORE EXCHANGE NEEDED

                                        TWO YEARS WARRANTY
