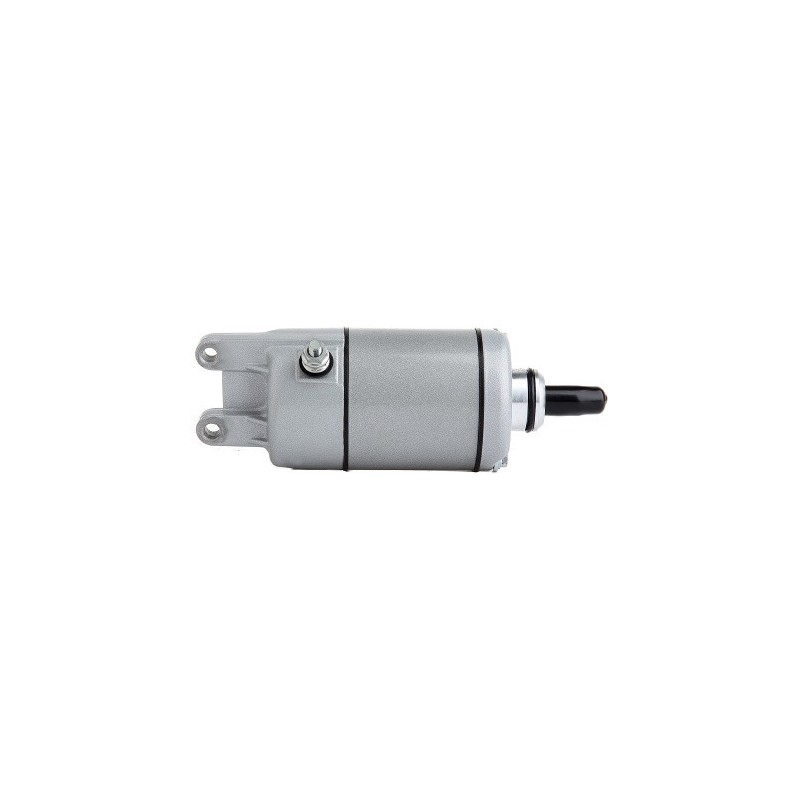

Starter replacing HONDA 31200-HA7-771, 31200-HA7-772, 31200-HA7-773, MITSUBA SM-8, SM13232
10 teeth / CW rotation / diameter of drive end 10 mm then at the teeth 13 mm / diameter of the ring under the drive 30 mm / 2 slightly offset brackets, distance between brackets 35 mm.
NO CORE EXCHANGE NEEDED
Information:
generic brand
replacing
| 31200-HA7-771 | HONDA |
| UD19171S | AS-PL |
| 18339 | LESTER |
| 18339N | WAI / TRANSPO |
| 71-26-18339 | WILSON |
| SMU0031 | ARROWHEAD |
| 111923 | CARGO |
| SM132-32 | MITSUBA |
| 22182MT | WAI / TRANSPO |
| STU1923 | KRAUF |
| 254939 | KUHNER |
| STR5972 | ELECTROLOG |
Mounted on :
HONDA (1987-1989)
1989-87 HONDA TRX350
1989-87 HONDA TRX350D
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
