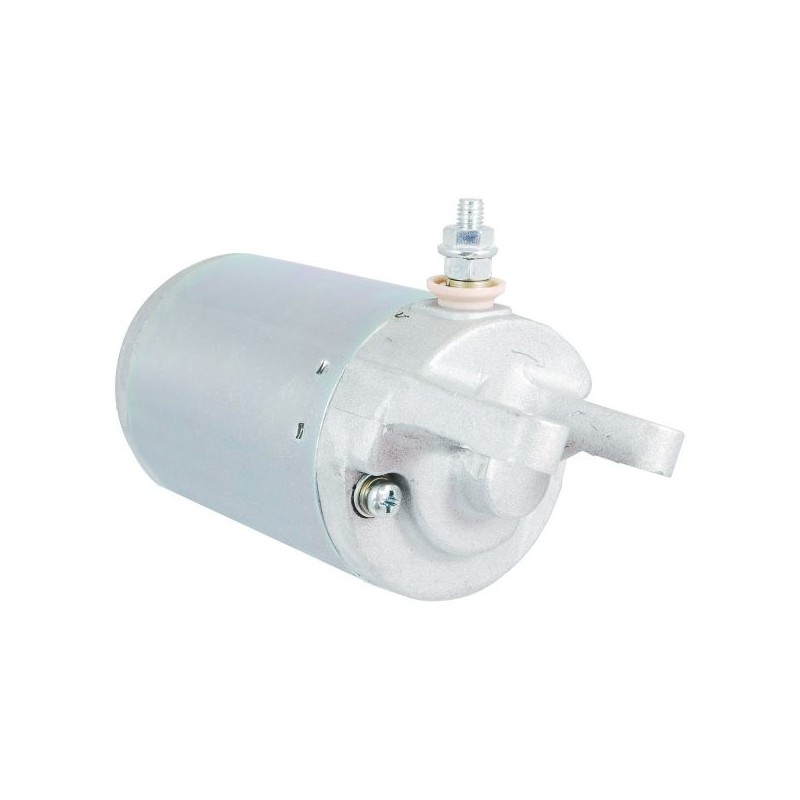

Starter replacing HONDA 31200-HA0-004 / DENSO 128000-1490 / 128000-1491

Information:

12 Volts / 10 Teeth / centre distance between the 2 mounting brackets 35.5 mm (the 2 brackets are slightly offset)

diameter of the nose cone (toothed part) 12.5 mm / diameter of the ring underneath 30 mm / length of the nose cone 16.5 mm

Mounted on :

HONDA (1985-1986)

1986-85 HONDA ATC250ES Big Red
1986-85 HONDA ATC250SX
1986-85 HONDA TRX250

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
