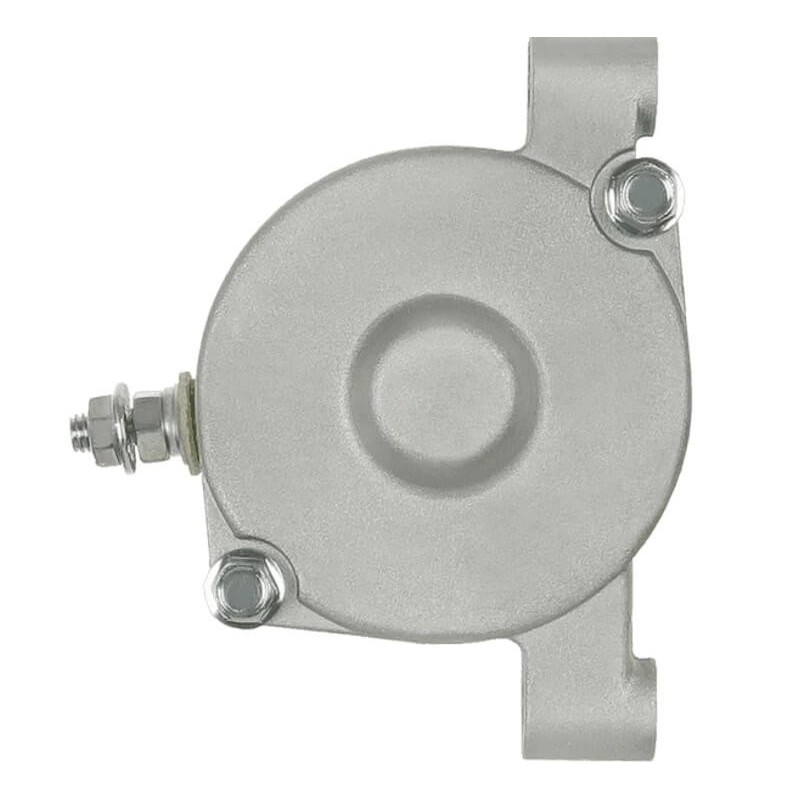

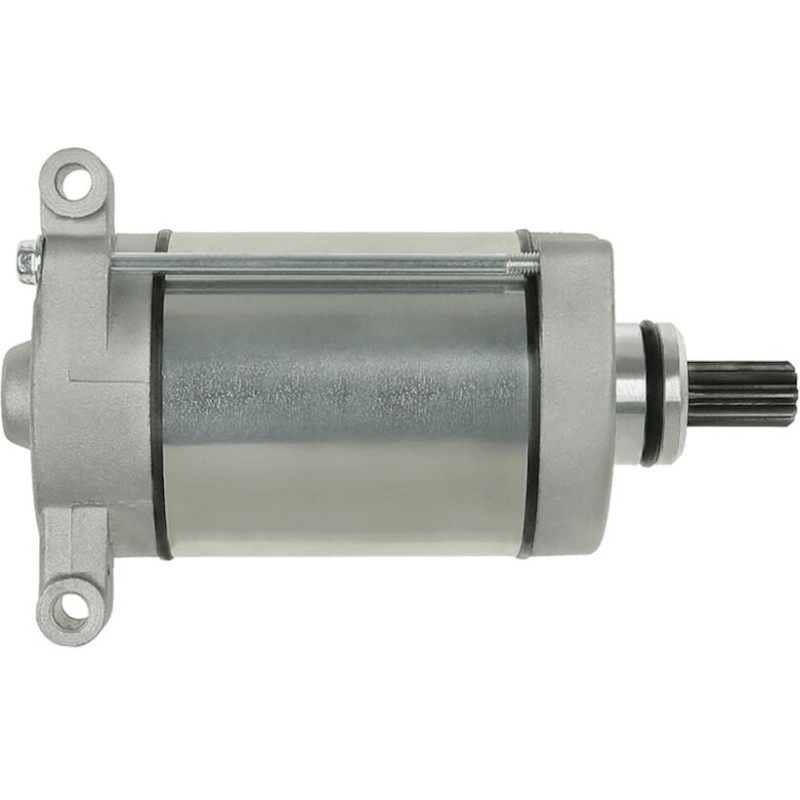

Starter replacing YAMAHA 4WV-81800-00-00 / 4WV-81890-00-00 / 5KM-81890-00-00
Starter replacing YAMAHA 4WV-81800-00-00 / 4WV-81890-00-00 / 5KM-81890-00-00
for moto
12 Volts - 9 Teeth - diameter drive 14 mm / length of the drive 25 mm / diameter of the ring under the drive30 mm
Distance between les 2 holess 85 mm / rotation CCW
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info
Information:
12 Volts - 9 Teeth
Replacing :
YAMAHA 4WV-81800-00-00 / 4WV-81890-00-00 / 5KM-81890-00-00
Original Reference Number 31200-004D-0000 / 31200-F39-0000
brand wai
Mounted on :
Hisun (2012-2015)
YAMAHA (1998-2010)
2008-07 YAMAHA YFM400 Grizzly 4x4 Auto
2004-03 YAMAHA YFM400A Kodiak
2006-04 YAMAHA YFM400F Kodiak 4x4
2008-07 YAMAHA YFM450 Grizzly 4x4 Auto
2010-09 YAMAHA YFM450 Grizzly 4x4 Auto IRS
2006-03 YAMAHA YFM450F Kodiak Auto 4x4
2010-06 YAMAHA YFM450FX Wolverine 4x4
2001-98 YAMAHA YFM600FW Grizzly 4x4
2008-02 YAMAHA YFM660F Grizzly 4x4
2009-06 YAMAHA YXR45F Rhino 450
2008-07 YAMAHA YXR45F Rhino 450 Special Edition
2007-04 YAMAHA YXR66F Rhino 660
2007 YAMAHA YXR66F Rhino 660 Ducks Unlimited
2007-06 YAMAHA YXR66F Rhino 660 Exploring Edition
2007-06 YAMAHA YXR66F Rhino 660 Special Edition
2007 YAMAHA YXR66F Rhino 660 Sport Edition
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
