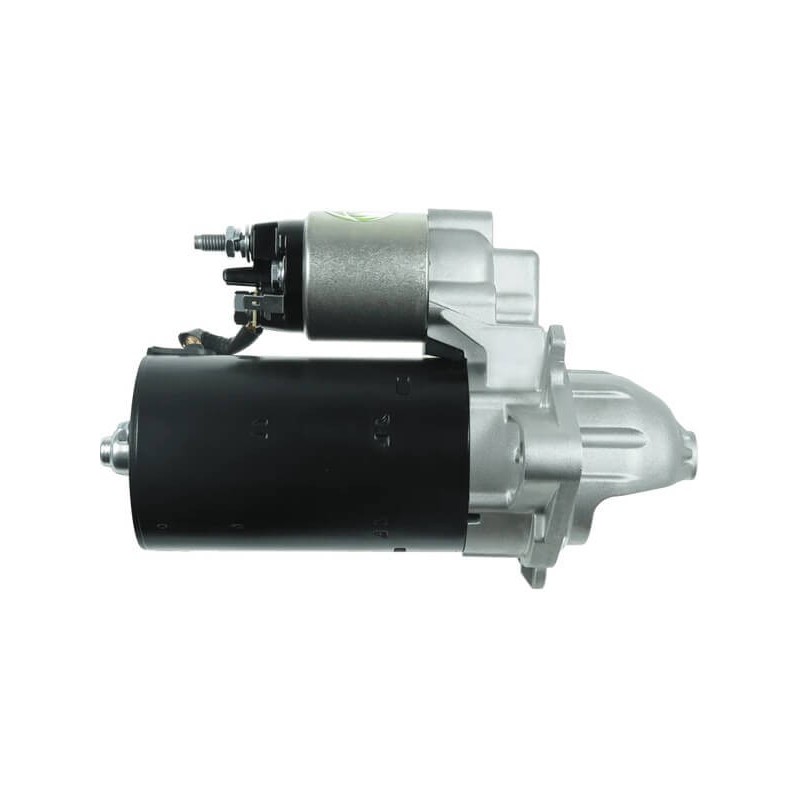

Starter replacing BOSCH 0001109403 / 0001109404
Starter for Jeep
= BOSCH 0001109403 / 0001109404
= DELCO REMY DRS0932
= 68080460AA / 830928102 / 910932
for Jeep cherokee 3.0 CRD
More info

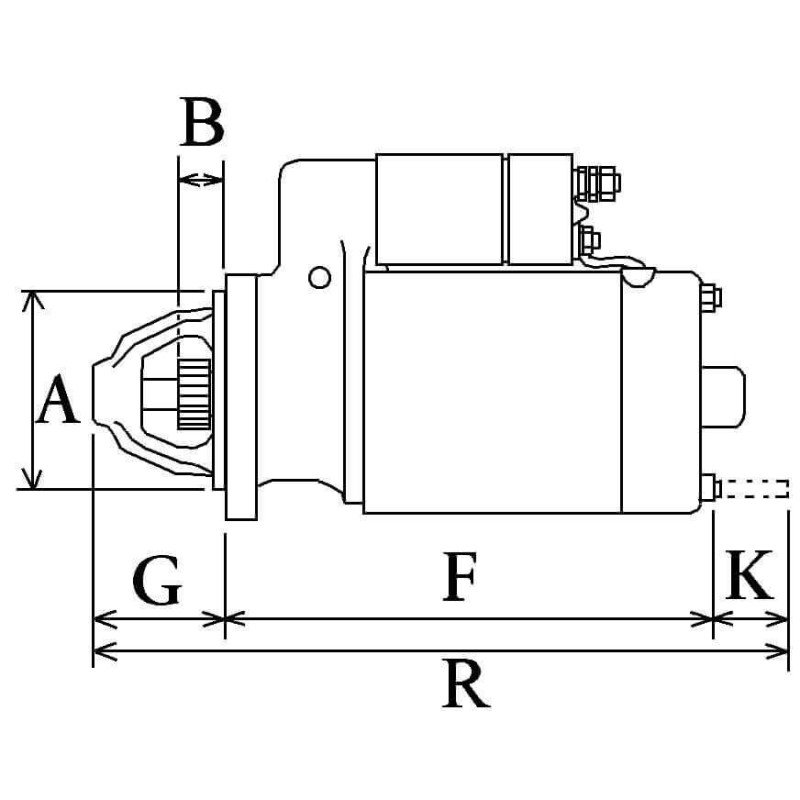

Physical information | ||
|---|---|---|
| H | No./teeth | 10 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 76.00 |
| I | B+ | M8 |
| No./mount. holes | 2 (1) | |
| B | Drive dist. | 21.00 |
| E | Mount. hole 1 mm | M10 |
| E | Mount. hole 2 mm | 10.50 |
| F | Dist./back | 167.90 |
| G | Dist./front | 59.00 |
| O | Dist. mm | 122.90 |
| R | Total length mm | 240.00 |
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| kW | 1.7 | |
generic brand
replaces
| 0001109403 | Bosch |
| 0001109404 | Bosch |
| 11090319 | EuroTec |
| 116082 | Cargo |
| 1986S00747 | Bosch |
| 254497 | Elstock |
| 3740 | CEVAM |
| 670019102 | DRI |
| 68080460AA | Chrysler |
| 68080460AB | Chrysler |
| 830928102 | PSH |
| 910932 | EDR |
| AEY3824 | Auto Electro |
| DRS0932 | Remy |
| K68080460AA | Fiat |
| LRS03824 | Lucas |
| RNL109403 | RNL |
for
| Brand | Model | Typ | Year |
| CHRYSLER | 300C 3.0 CRD | [EXF] | 01/09/11 |
| JEEP | Grand Cherokee 3.0 CRD V6 4x4 | [EXF] | 01/01/11 |
| JEEP | Grand Cherokee 3.0 CRD V6 4x4 | [EXF] | 01/02/11 |
| JEEP | Grand Cherokee 3.0 CRD V6 4x4 | [EXF] | 01/07/13 |
| JEEP | Grand Cherokee 3.0 CRD V6 4x4 | [EXN] | 01/01/11 |
| JEEP | Grand Cherokee 3.0 CRD V6 4x4 | [EXN] | 01/02/11 |
| JEEP | Grand Cherokee 3.0 CRD V6 4x4 | [EXN] | 01/07/13 |
| LANCIA | Thema 3.0 D | [EXF] | 09.2011-10.2014 |
