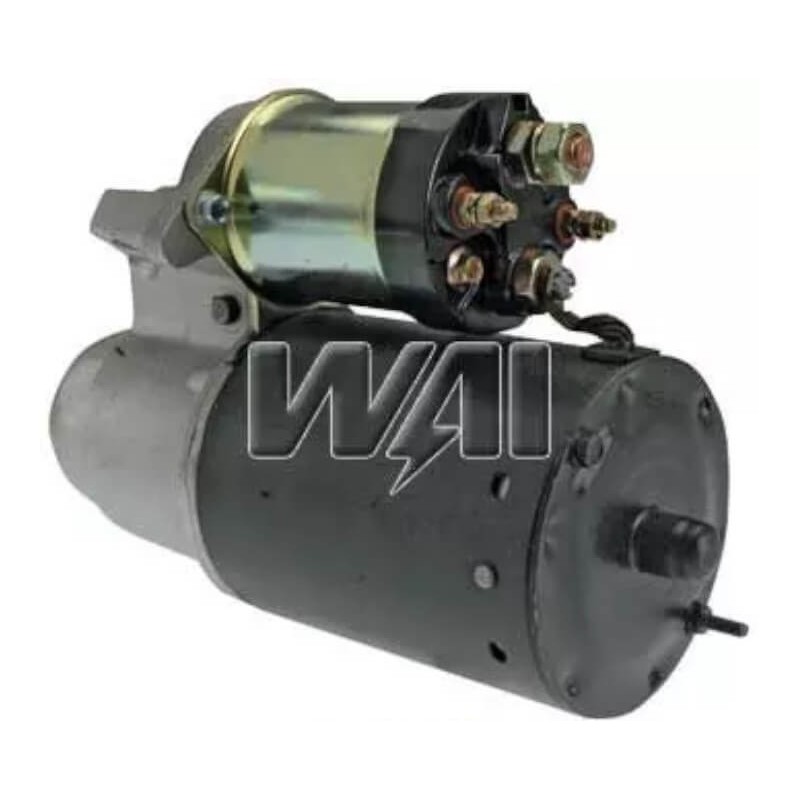

Starter replacing DELCO REMY 1109534 / 1109527 / 1109524

Information:

Voltage 12

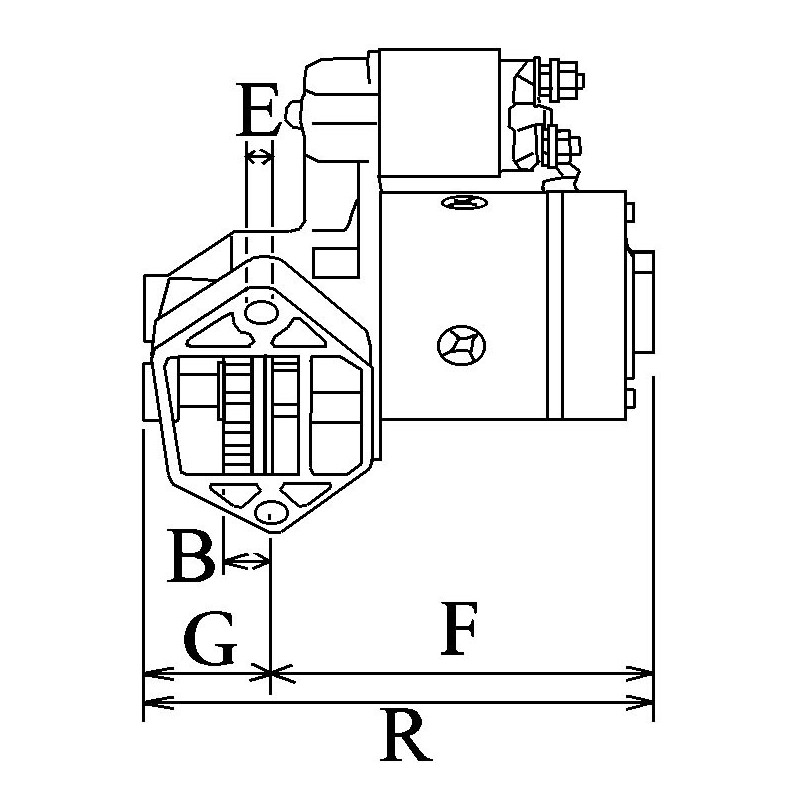

A = Mount flange 68.10

B = Drive distance 16.00

F = Distance / Back 208.00

G = Distance / Front 60.00

H = Nbr of teeth 9

B+ M10

Plug type 15a 8-32 UNC

Gear type Dd

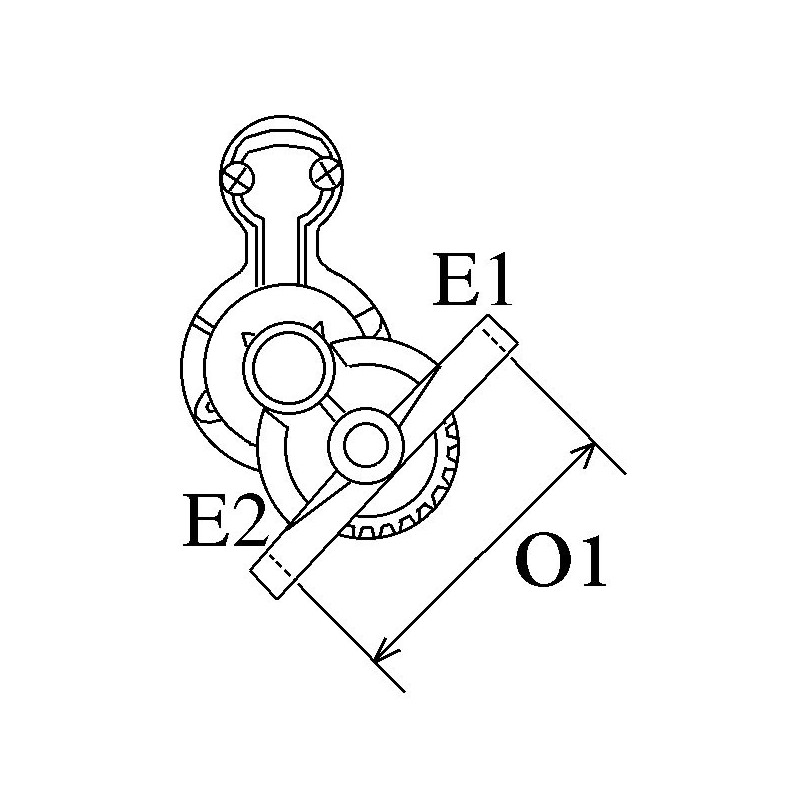

O = Distance 83.50

Rotation Cr

Nbr of mounting holes 2 (0)

Drive Tipo Steel

Remarks Replacing: 8MT.

American brand waiglobal

Chrysler 3236659, 8134193, 8982775000, 8982775002, 9896659, JR775000, JR775002

Delco 1109521, 1109524, 1109527, 1109534, 19136125, 19136142, 19136203, 1977191, 1977194, 1988719, 1988724, 1988725, 1998430, 1998466, 1998527, 1998548

GM 1109521, 1109524, 1109534, 1977191, 1977194, 1988719, 1988724, 1988725, 1998430, 1998527, 1998548, 1998725

Jeep-Eagle 3236659, 8134193, 8982775000, 8982775002, 9896659, JR775000, JR775002

Fits : :

American Motors (1980-1983) ** Buick (1978-1983) ** Chevrolet (1978-1990) ** GMC (1978-1983) ** Jeep (1980-1983) ** Oldsmobile (1978-1982) ** Pontiac (1977-1990)
