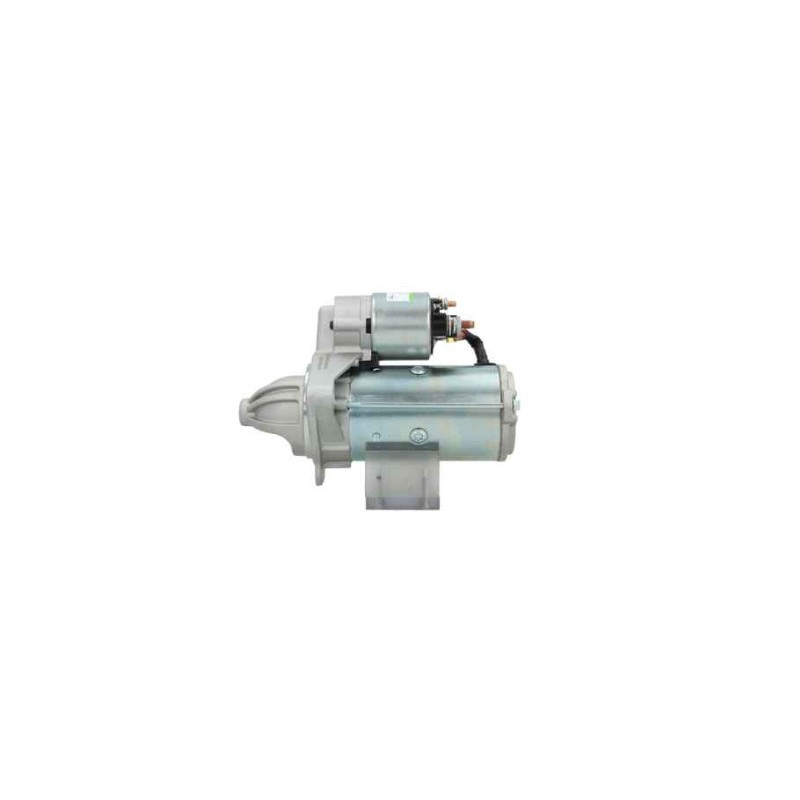

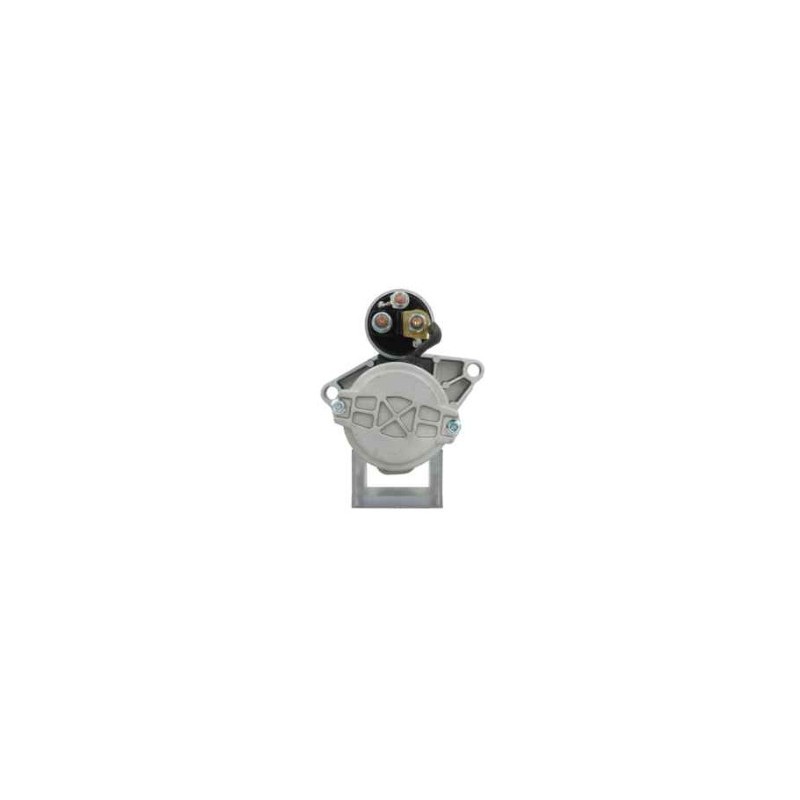

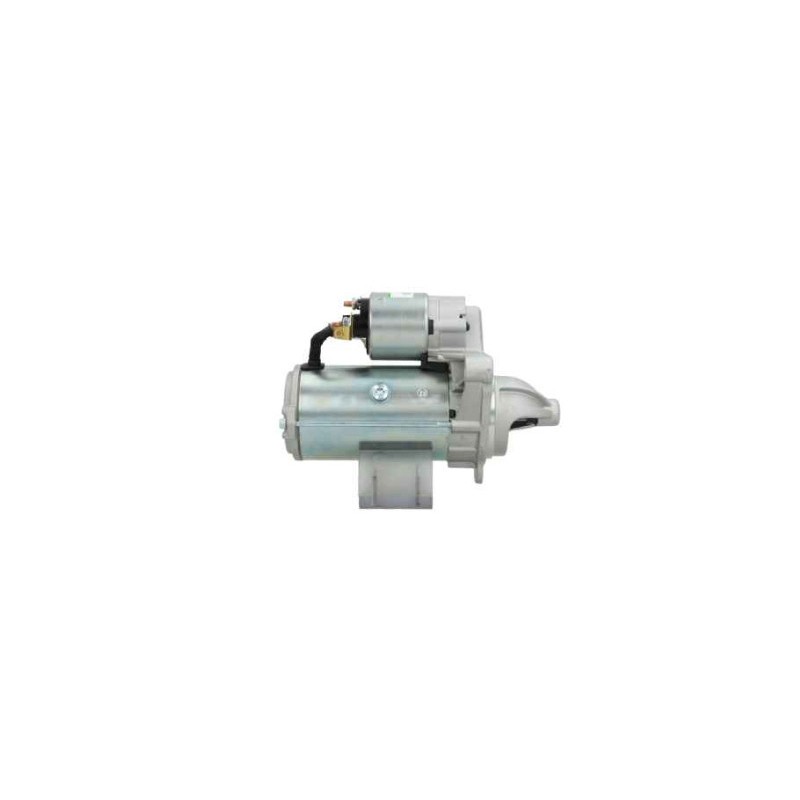

Starter replacing VALEO TS22E20 / 438274 / 458446 / OPEL 55564374
W115745
Starter replacing VALEO TS22E20 / 438274 / 458446 / OPEL 55564374
= DRS0525 / LRS02509
PAS DE CONSIGNE NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 2.2 | |
Physical Information | ||
|---|---|---|
| A | Mount flange | 76.00 |
| E | Mounting holes | 123.00 |
| B | Drive distance | 20.00 |
| F | Distance / Back | 158.00 |
| G | Distance / Front | 59.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 123.00 |
| P | Rotation | Cr |
| R | Total length mm | 218.00 |
Replacing | |
|---|---|
| 55564374 | OPEL |
| TS22E20 | VALEO |
| 115745 |
| 130562092 |
| 130562092000 |
| 130562092500 |
| 195198 |
| 254181 |
| 438274 |
| 458446 |
| 55564374 |
| 910525 |
| DRS0525 |
| LRS02509 |
| TS22E20 |
| TS22E20+ |
Mounted on :
Cadillac
| BLS | BLS | 2.8 | Unleaded | 2007 12 | - | Z28NET | Turbo | 188 | 255 | Break | 2792 | 6 | |
| BLS | BLS | 2.8 | Unleaded | 2008 10 | - | Z28NET | Turbo | 206 | 280 | AWD | 2792 | 6 | |
| BLS | BLS | 2.8 | Unleaded | 2008 10 | - | Z28NET | Turbo | 206 | 280 | Break | AWD | 2792 | 6 |
CHEVROLET
| Trailblazer | Trailblazer | 2.8 | Diesel | 2012 08 | - | LWH | Diesel | 132 | 180 | 2776 | 4 | 31UX |
SAAB
| 9-5 | 9-5 | 2.8 | Unleaded | 2010 05 | - | A28NER | V6 | 221 | 301 | XWD | 2792 | 6 |
PAS DE CONSIGNE NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
