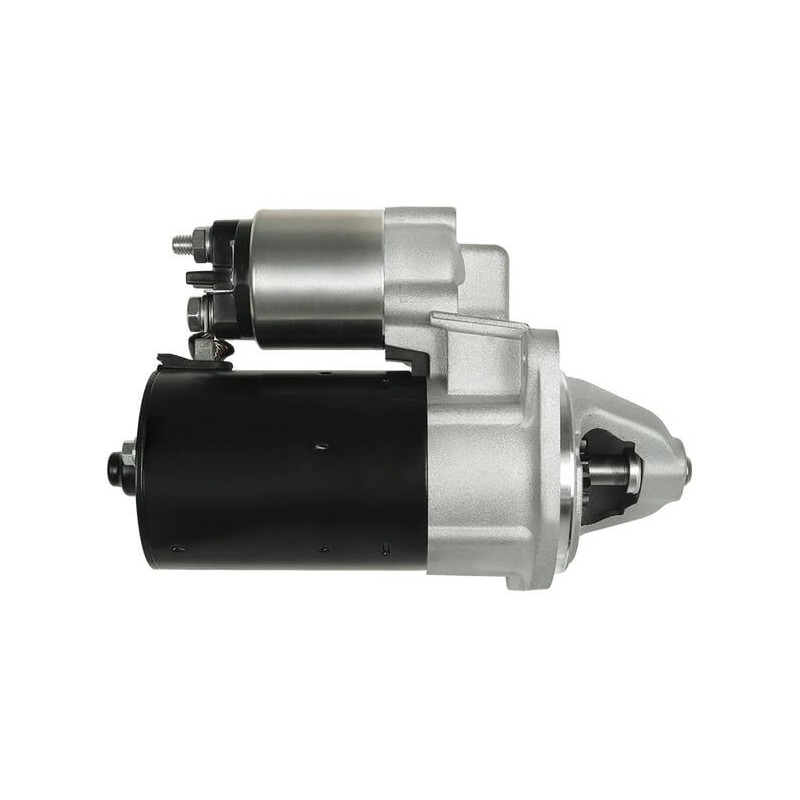

Starter replacing BOSCH 0001108129 / 0001107085 / 0001107062
Starter for Engine LOMBARDINI, industrial engine
= BOSCH 0001107033 / 0001107062 / 0001107085 / 0001108129 / 0986019040 / 0001107051
= VALEO D6RA52 / D6RA22
= LOMBARDINI 58101330 / 58401940 / ED0058401940-S
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.1 | |
Physical Information | ||
|---|---|---|
| A | Mount flange | 76.20 |
| E | Mounting holes | 10.60 |
| E | Mounting holes 2 | 10.60 |
| B | Drive distance | 15.00 |
| F | Distance / Back | 155.40 |
| G | Distance / Front | 53.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 105.00 |
| P | Rotation | Cr |
| R | Total length mm | 216.25 |
Brand adaptable
Replacing | |
|---|---|
| 0001107033 | BOSCH |
| 0001107062 | BOSCH |
| 0001107085 | BOSCH |
| 0001108129 | BOSCH |
| 11.131.928 | ISKRA |
| 58101330 | LOMBARDINI |
| 58401940 | LOMBARDINI |
| 63521070 | MAGNETI MARELLI |
| AZD2127 | ISKRA |
| cs807 | HC-PARTS |
| d6ra22 | VALEO |
| d6ra52 | VALEO |
Mounted on :
| Maker | Model | Tipo | MOTEUR | Tipoe engine |
| Atlas | XAS32 | AC compressor | DEUTZ | F 3M1008 |
| Atlas | XAS32 | AC compressor | DEUTZ | F 3M1008 |
| FALCH | Trailer professionnelle F2 | Nettoyeur | DEUTZ | F 3M1008 |
| HELMKE | 10KVA | Gen Set | DEUTZ | F 4M1008 (L) |
| HELMKE | 4KVA | Gen Set | DEUTZ | F 2M1008 (L) |
| HELMKE | 6,5 KVA | Gen Set | DEUTZ | F 3M1008 (L) |
| Imef | HEY 14 | engins TP | DEUTZ | F 3M1008 |
| Imef | HEY 14 S | engins TP | DEUTZ | F 3M1008 |
| Imef | HEY 16 | engins TP | DEUTZ | F 3M1008 |
| Imef | HEY 16 S | engins TP | DEUTZ | F 3M1008 |
| Imef | SE 225 | engins TP | DEUTZ | F 4M1008 T |
| Imef | SE 230 | engins TP | DEUTZ | F 4M1008 T |
| Imef | HEY 24 | engins TP | DEUTZ | F 4M1008 T |
| Imef | HEY 28 | engins TP | DEUTZ | F 4M1008 T |
| IRMER & ELZE | Irmair 2W | AC compressor | DEUTZ | F 3M1008 |
| NEUHAUSER | 18.2 . 2.01 .01 | AC compressor | DEUTZ | F 2M1008 |
| NEUHAUSER | 28.2 . 2.01 .01 | AC compressor | DEUTZ | F 3M1008 |
| NEUHAUSER | 35.2 . 2.01 .01 | AC compressor | DEUTZ | F 3M1008 |
| O & K | RH 1.15 | engins TP | DEUTZ | F 3M1008 |
| Renfromrs | RME 150 -D | engins TP | DEUTZ | F 3M1008 |
| Renfromrs | RME 170 | engins TP | DEUTZ | F 3M1008 |
| Terex-Schaeff | HR12 | Mini pelle | DEUTZ | F 3M1008 |
| Weifrommann | 1030 D / D | engins TP | DEUTZ | F 3M1008 |
| Maker | Description | MOTEUR | kW | Year |
| LOMBARDINI | LOM 151 | LDW 502 , LDW 502 | 8,3 | 01/06/89 |
| LOMBARDINI | LOM 152 | LDW 602 , LDW 602 | 10 | 01/06/89 |
| LOMBARDINI | LOM 153 | LDW 903 , LDW 903 | 15 | 01/06/89 |
| LOMBARDINI | LOM 154 | LDW 1204 , LDW 1204 | 20 | 01/06/89 |
| LOMBARDINI | LOM 1585 | LDW 1204 T, LDW 1204 T | 27-31 | 01/06/89 |
| DEUTZ / KHD | DEUTZ KHD | BF 4M1008 |
Voiture without permis :
| Bellier |
|
| Numéros from série Bellier |
|
| Chatenet |
|
| Numéros from série Chatenet |
|
| Models Grecav |
|
| Jdm-Simpa |
|
| Numéros from série Jdm-Simpa |
|
| Ligier |
|
| Numéros from série Ligier |
|
| Microcar |
|
| Numéros from série Microcar |
|
Engine flywheel sprocket: 90 teeth
For LOMBARDINI engines :
- FOCS - LDW502 - LDW502/M3 with serial number less than 4776685
- FOCS - LDW502 citycar AL - LDW502/M3 with serial number less than 477668
- FOCS - LDW502 citycar P/F - LDW502/M3 with serial number less than 4776685
CAUTION If the LDW502 motor has a serial number greater than 4776685, model w114052 must be ordered.
JIBS - LDW602 - LDW702 - LDW903 - LDW1003
JIBS - LDW1204 - LDW1204/T - LDW1404
LGW523 with serial number below 4884416
LGW523 MPI with serial number less than 4884416
If the LGW523 motor has a serial number greater than 4884416, order model w114052
