Replacing
Carrier Transicold 25-39476-00, 25-39476-00SV, Kubota 1C010-63010, 1C010-63011, 1C010-63012, 1G772-63010, 1G772-63011, 1G772-63012, 1G772-63013, 1G772-63014, Mitsubishi M008T70971, M008T70972, M008T70974, M008T71671, M008T71672, M008T71674

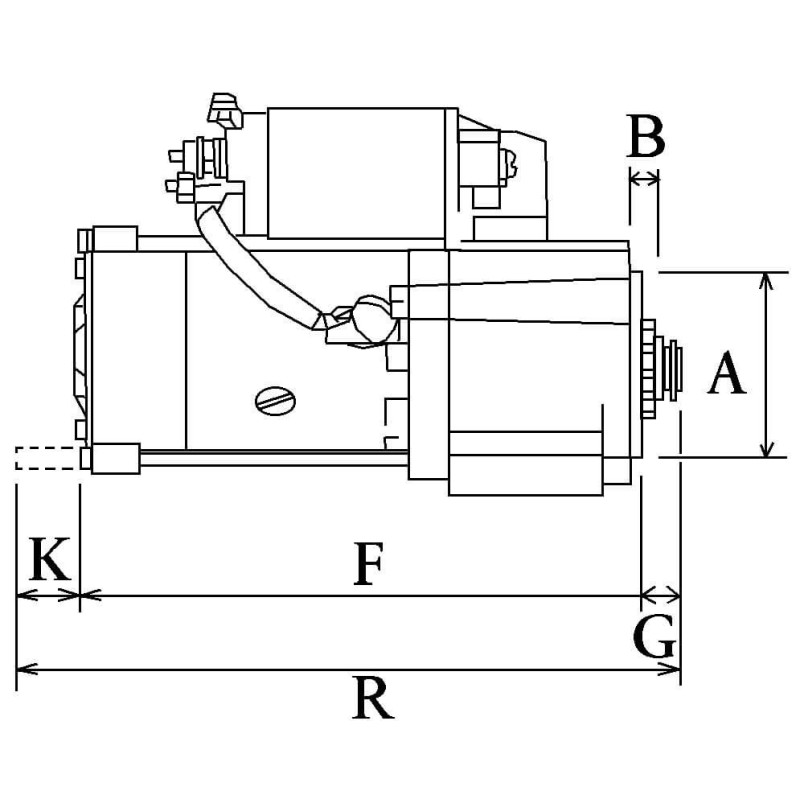

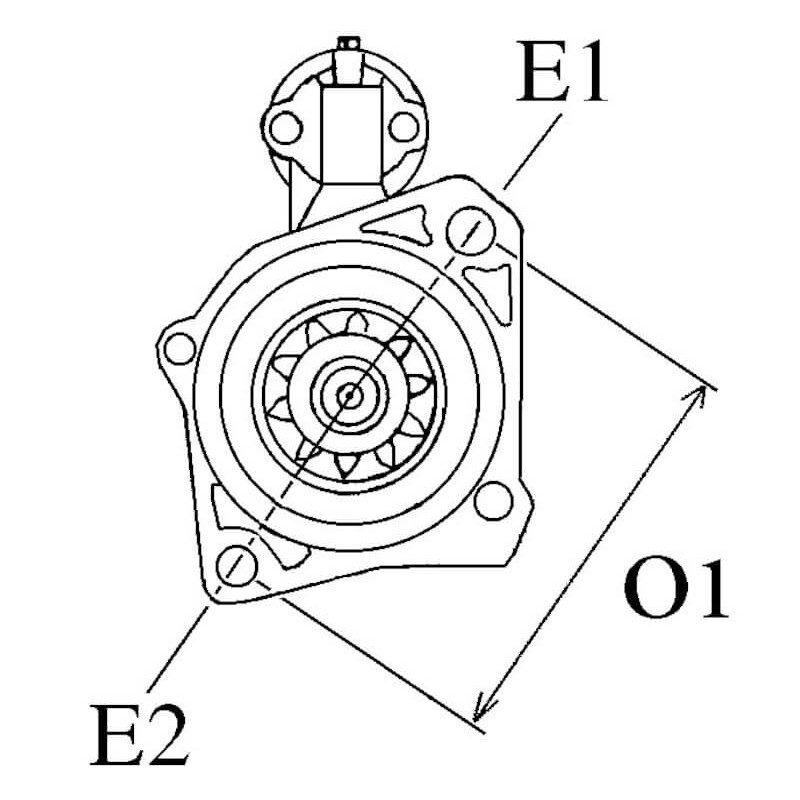

Physical information |
||
|---|---|---|
| A | Mount. flange | 82.50 |
| B | Drive dist. | 26.00 |
| E | Mount. hole 2 mm | 11.00 |
| E | Mount. hole 1 mm | 11.00 |
| F | Dist./back | 223.00 |
| G | Dist./front | 35.50 |
| H | No./teeth | 9 |
| I | B+ | M8 |
| L | Terminal 50 | 6.30 |
| N | Gear type | GR |
| O | Dist. mm | 105.00 |
| P | Rotation | CW |
| R | Total length mm | 259.00 |
| No./mount. holes | 2 (0) | |
Electrical information |
||
|---|---|---|
| Voltage | 12 | |
| kW | 2.5 | |
generic brand
Simeurt m.
Identical starter (Translated review)
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
