Starter replacing BOSCH 0001417075 / 0001417065

Information:

Voltage 24

KW 6.6

Insulated return Oui

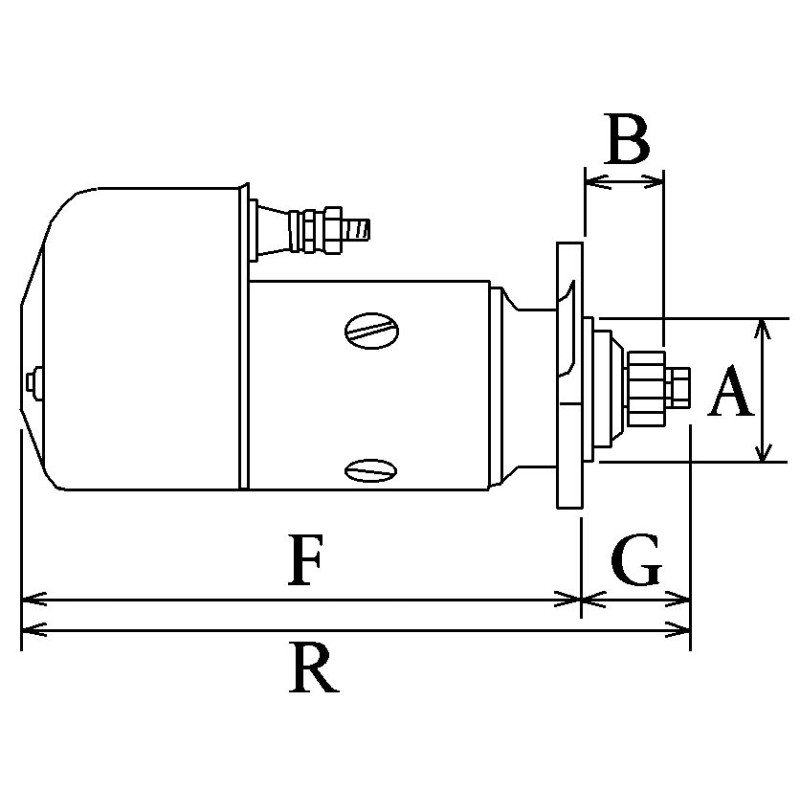

A = Mount flange 92.00

B = Drive distance 47.00

F = Distance / Back 338.00

G = Distance / Front 62.00

H = Nbr of teeth 12

B+ M12

B- M12

Gear type Dd

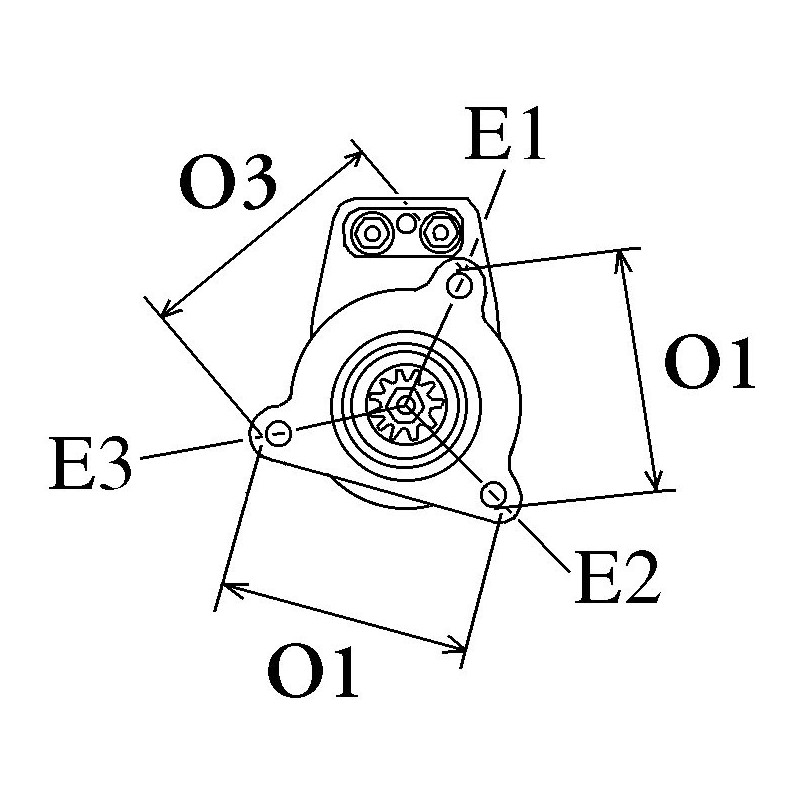

O = Distance mm 126.00

O = Distance 2 126.00

O = Distance 3 126.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 407.00

generic brand

replacing

= Butec 860511

= DELCO REMY DRS8090 / DRS8090N

= ISKRA 11.139.107 / azk5456 / IS9096

= Monark 81467065

= DELCO REMY 19024085

= VOLVO 1547049 / 20451445 / 20536466 / 3964839 / 8113165 / 8113918 / 85000186

                                  NO CORE EXCHANGE NEEDED
