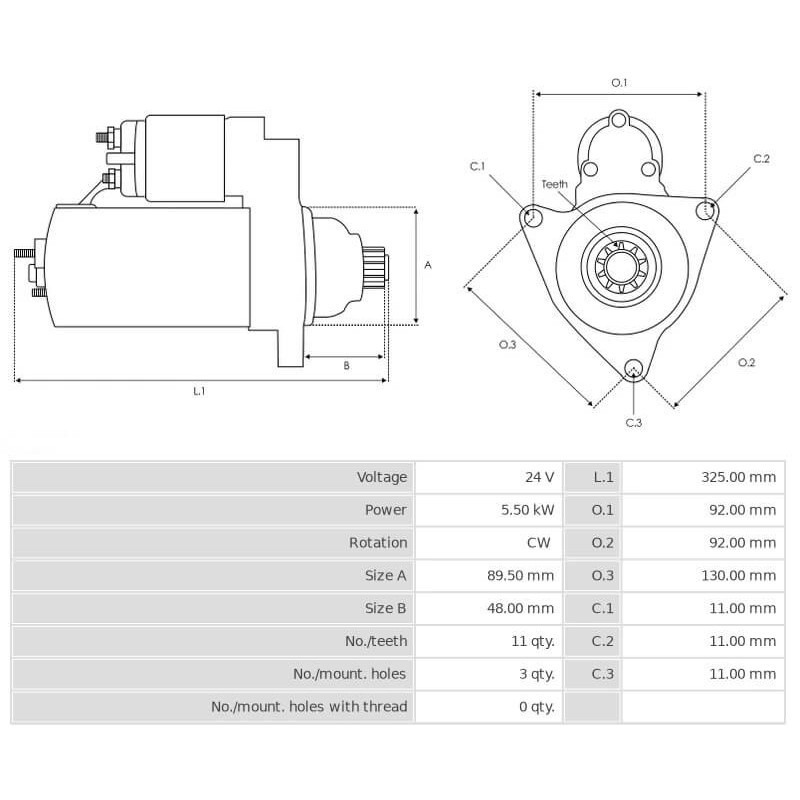

| Voltage [ V ] | 24 |
| Power [ kW ] | 5.50 |
| Rotation | CW |
| Size A [ mm ] | 89.50 |
| Size B [ mm ] | 48.00 |
| No./teeth [ qty. ] | 11 |
| No./mount. holes [ qty. ] | 3 |
| L.1 [ mm ] | 325.00 |
| O.1 [ mm ] | 92.00 |
| O.2 [ mm ] | 92.00 |
| O.3 [ mm ] | 130.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
generic brand
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
