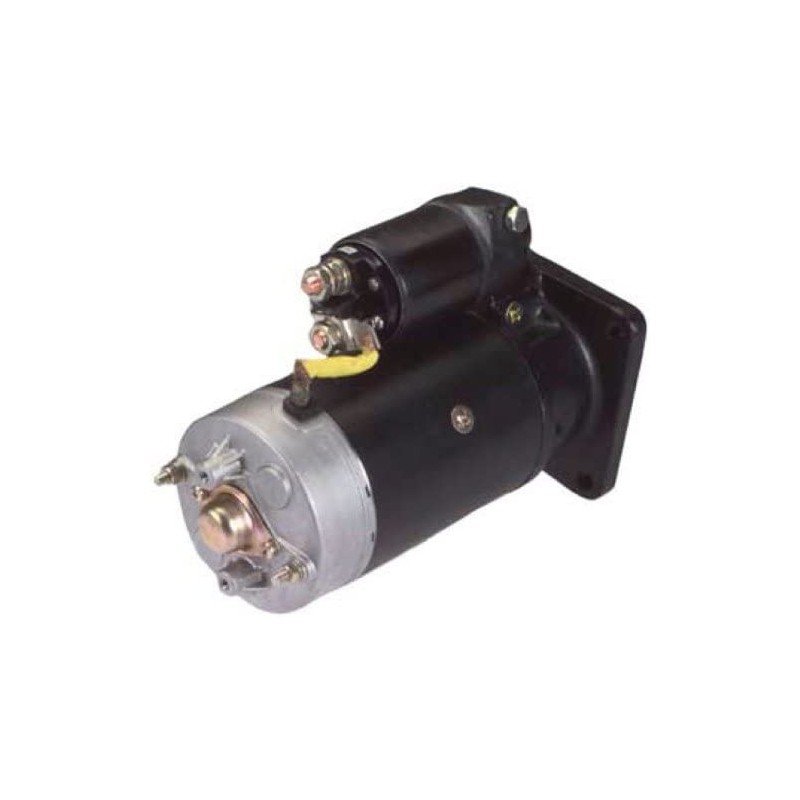

Starter replacing BOSCH 0001368019 / 0001360043 / 0001360015

Information:

Voltage 24

KW 4.0

A = Mount flange 110.00

B = Drive distance 27.00

F = Distance / Back 255.00

G = Distance / Front 75.00

H = Nbr of teeth 9

B+ M10

Gear type Dd

O = Distance 1 147.00

O = Distance 2 103.00

O = Distance 3 103.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 343.00

generic brand

replacing

= ISKRA  AZJ3546 / AZJ3459 / AZJ3133 / AZF3542 / 11.139.453 / 11.130.492 / 11.130.225

 = MAGNETI MARELLI MT67DB / MT67DA / MT67D / MT67AD / MT67AC / MT67AB

MT67AA / MT67A / 63224580 / 63224170 / 63216748 / 63216701

63216704 / 63216725 / 63216726 / 63216727 / 63216731

63216747 / 63216748 / 63224170 / 63224580

= MAGNETON 9142320

= DELCO REMY 19024273 / 19024231

= FIAT 04763995 / 4172004 / 4187587 / 4231016 / 4231018 / 4232191 / 4269114 / 4682999 / 4692477 / 4692877 / 4699704 / 4701920 / 4735444 / 4737754 / 4755108 / 4763995 / 4807378 / 77040560 / 77040561 / 7740560 / 77414430 / 77414431 / 77444430 / 77445430

                                     NO CORE EXCHANGE NEEDED
