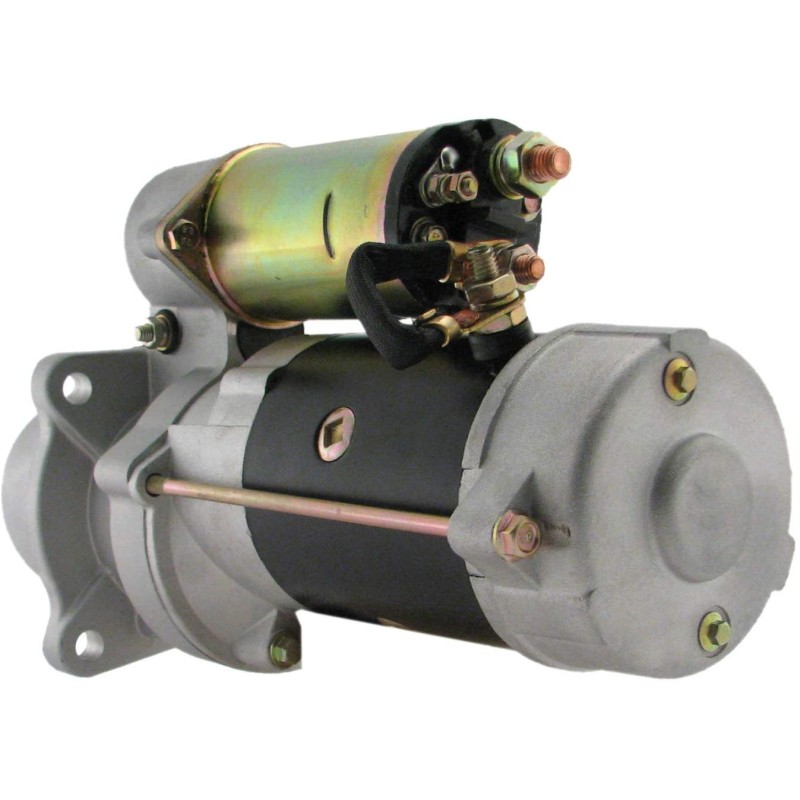

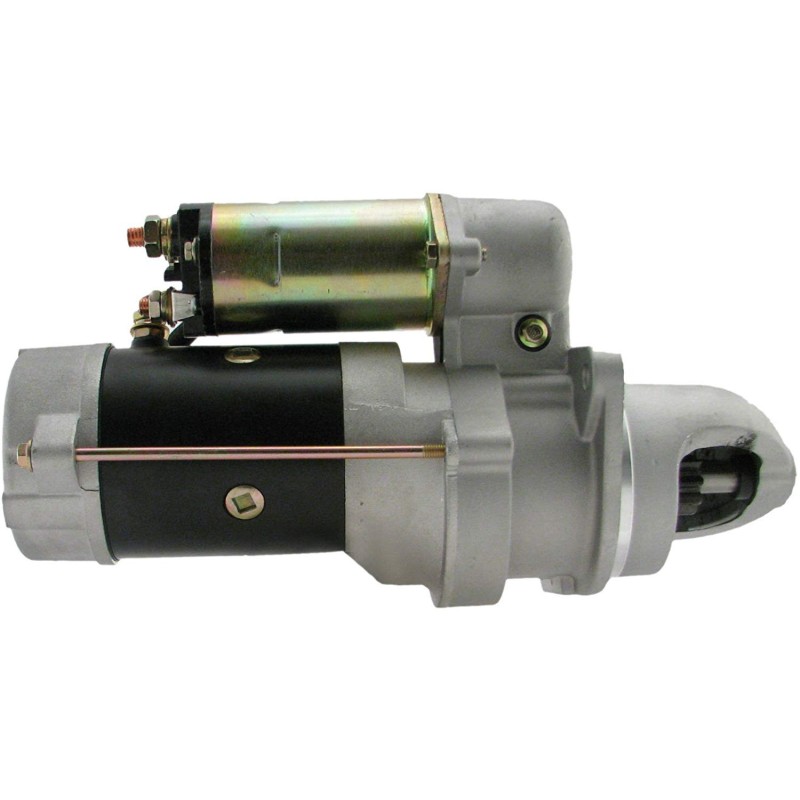

Starter replacing DELCO REMY 10461286 / 1998488 / 1113594 / 1113291

Information:

Voltage 24

KW 4.0

A = Mount flange 89.00

B = Drive distance 45.00

F = Distance / Back 250.50

G = Distance / Front 88.30

H = Nbr of teeth 10

B+ M10

Gear type Gr

O = Distance mm 89.00

O = Distance 2 127.00

O = Distance 3 90.00

Rotation Cr

Nbr of mounting holes 3 (0)

Clutch Tipo Dry

Drive Tipo Steel

Remarks Replacing: 7MT, 28MT.

R = Total length mm 339.00

generic brand

= DELCO REMY 1998488 / 1113594 / 1113291 / 1113277 / 10479656 / 10479623 / 10479622 /  10461486

= NIKKO 0-23000-2470 / 0-23000-2270 / 0-23000-2040 / 0-23000-2031 / 0-23000-2030

= AC-DELCO REMY 323-911

= CUMMINS 367520rx / 3918377 / 3918378 / 3926932

= Butec 860318

= Dresser Engine Mfr 1268855H91

= LEECE NEVILLE 35261185

= PRESTOLITE 860318

Butec 860318, CUMMINS 3604677RX, 3675204, 3675204RX, 3909914, 3918377, 3926932, DAF 1516994R, DELCO REMY 10455500, 10461283, 10461468, 10461469, 10461486, 10479622, 10479623, 10496884, 1113277, 1113291, 1113594, 1998459, 1998488, Dresser Engine Mfr 1268855H91, LEECE NEVILLE 35261185, LETRIKA (ISKRA) 11.131.359, LETRIKA (ISKRA) Tech. AZF4594, PRESTOLITE 860318

Used on :

- CUMMINS 6BT engine 5900 cc after 1994

- HITACHI FX210 excavator engine 6bt 5900 ccm from 1995 to 2006

- HYUNDAI 130LC excavator engine 4BTA 3900 ccm from 1996 to 2006

- JOHN DEERE 1458 wheel forwarfromr engine cumins 6BTA 5900 ccm from 1997 to 2006

- NEW HOLLAND EC130 excavator engine 4BT 3900 ccm from 2000 to 2001

                            NO CORE EXCHANGE NEEDED

                                             TWO YEARS WARRANTY
