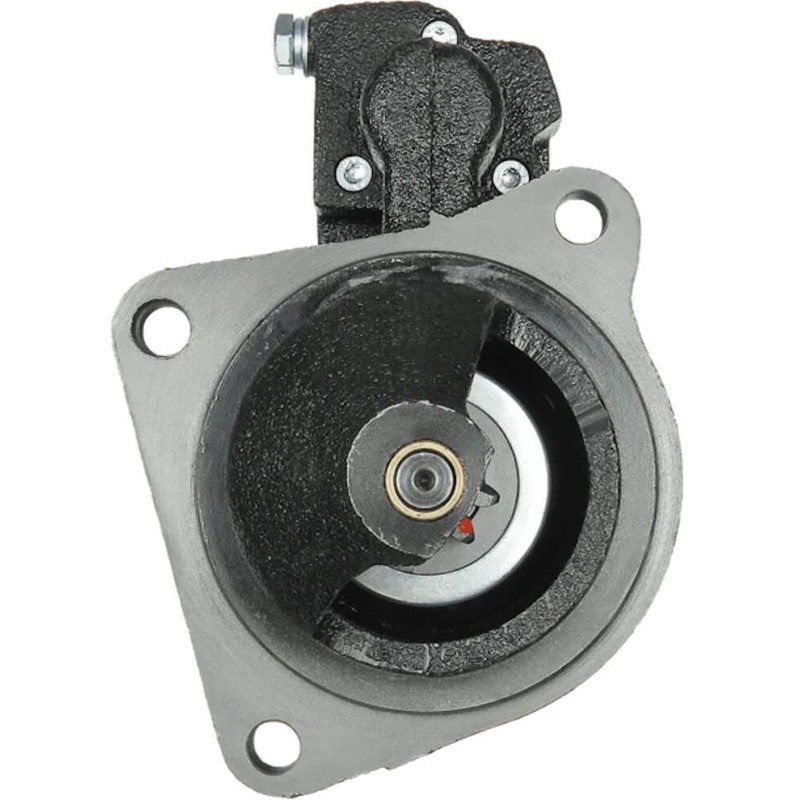

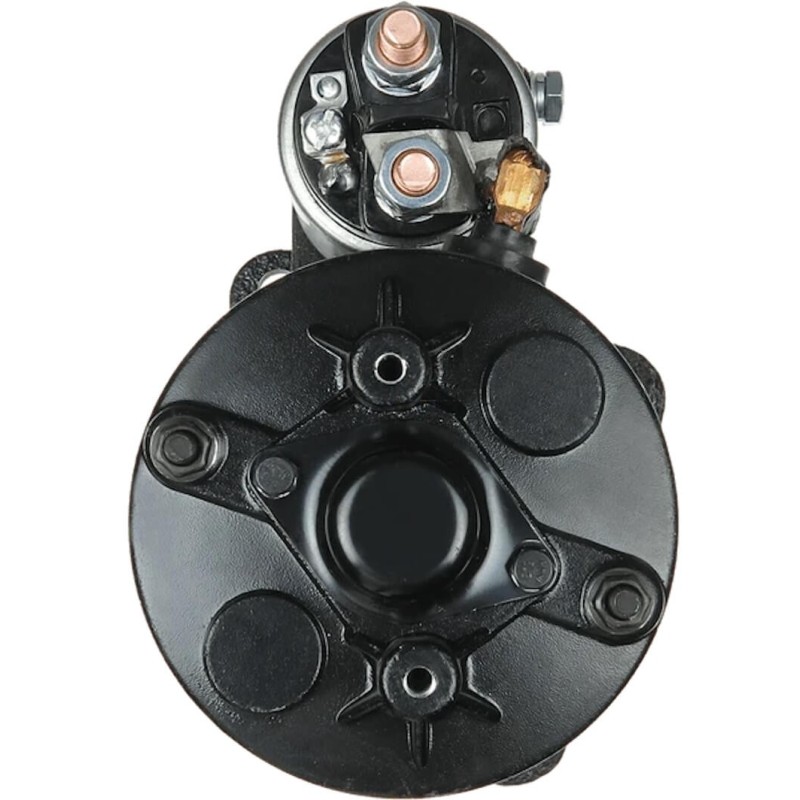

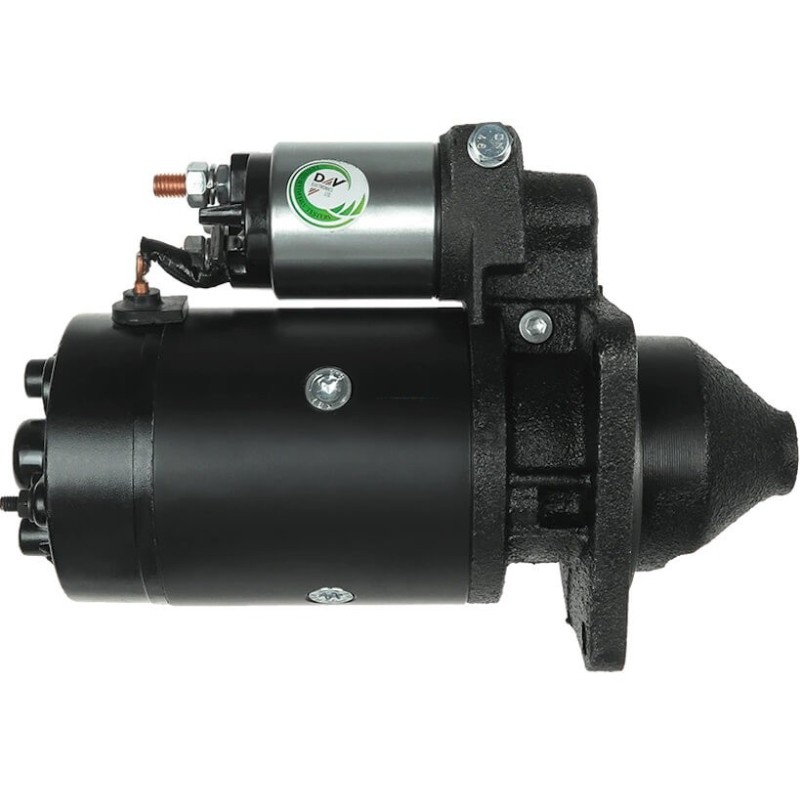

Starter replacing BOSCH 0001362105 / 0001362039 / 0001362032
Starter for Agriful / Allis chalmer / Benfra / FIAT / GOLDINI / IVECO
= FIAT 4169096 / 4682998 / 4710224 / 4722682 / 4728682 / 4759929 / 4807373 / 88205005
= ISKRA 11.130.203 / 11.131.603 / 11.139.452 / aze6531 / azj3458 / azj3538
= IVECO 500333269 / 500338953
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 2.7 | |

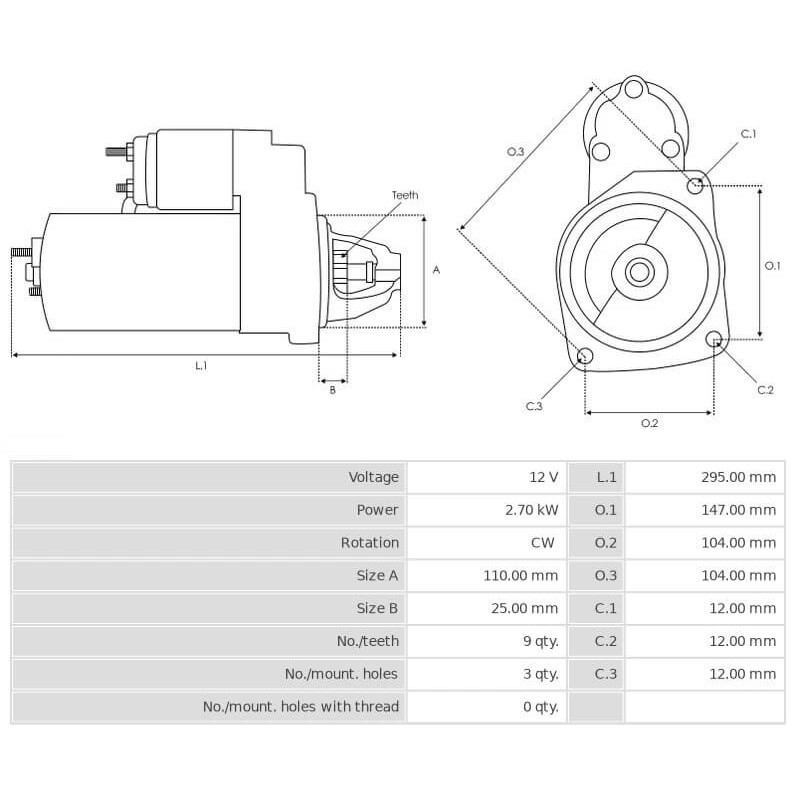

Physical Information | ||
|---|---|---|
| A | Mount flange | 110.00 |
| E | Mounting holes | 12.20 |
| E | Mounting holes 2 | 12.20 |
| E | Mounting holes 3 | 12.20 |
| B | Drive distance | 27.00 |
| F | Distance / Back | 222.00 |
| G | Distance / Front | 72.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M10 |
| N | Gear type | Dd |
| O | Distance mm | 144.75 |
| O | Distance 2 | 101.65 |
| O | Distance 3 | 101.65 |
| P | Rotation | CW |
| R | Total length mm | 294.00 |
= BOSCH 0001223504 / 0001223503
= FIAT 4169096 / 4682998 / 4710224 / 4722682 / 4728682 / 4759929 / 4807373 / 88205005
= ISKRA 11.130.203 / 11.131.603 / 11.139.452 / aze6531 / azj3458 / azj3538
= IVECO 500333269 / 500338953
= LUCAS 26290 / 26390 / 26390a / 26390b / 26390e / 61924015 / 61924066 / s0850
= MAGNETI MARELLI 30380319 / 63217101 / 63217125 / 63217126 / 63522235 / mt71a / mt71aa / mt71ab / mt71ac
= MAGNETON 9144745
= NEW HOLLAND 82980757
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
