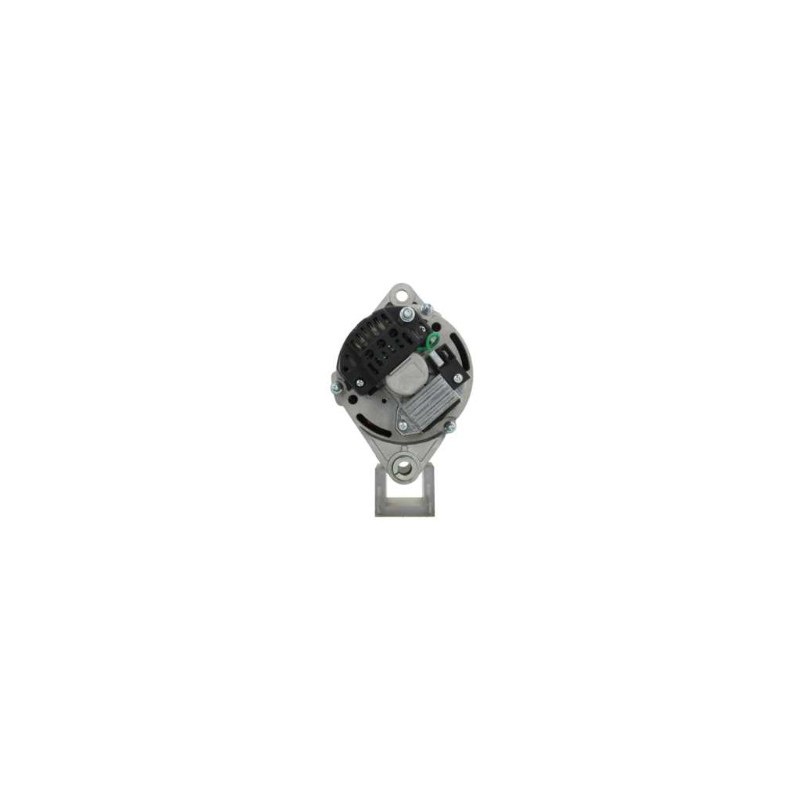

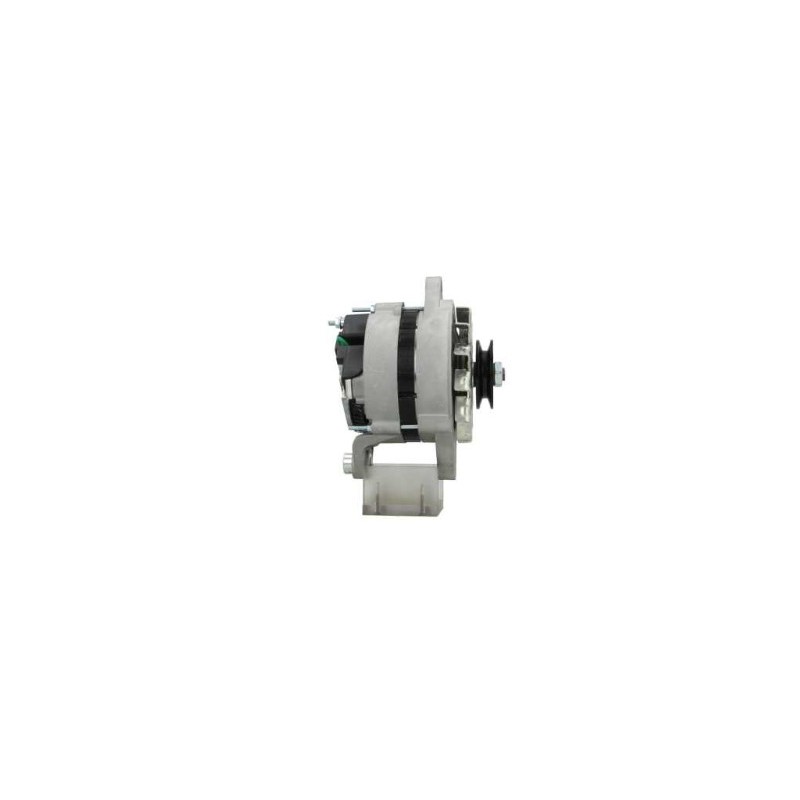

Alternator replacing MAGNETI MARELLI 63320003 / 63320007 / 63320008 / 63320031 / 63320053
Alternator NEW replacing MAGNETI MARELLI 63320003 / 63320007 / 63320008 / 63320031 / 63320053
FIAT 46445102 / 46446292 / 7552284 / 7651812
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 55 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 12.20 |
| G | Belt. adj. bracket hole | 11.00 |
| B | Width/holder arm | 17.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 66.00 |
| H | Pulley dia. | 65.00 |
| A | Pulley dist. | 46.00 |
| i | Grooves/pulley | 1 |
| j | Radius | 85.00 |
| j | Radius 2 | 81.00 |
| k | Position B + | M6 |
| n | Rotation | CW |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 162.00 |
Replacing | |
|---|---|
| 063321112010 | MAKO |
| 063321112020 | MAKO |
| 063395575000 | MAKO |
| 13470 | EFEL |
| 46445102 | FIAT |
| 46446292 | FIAT |
| 63320003 | MAGNETI MARELLI |
| 63320007 | MAGNETI MARELLI |
| 63320008 | MAGNETI MARELLI |
| 63320031 | MAGNETI MARELLI |
| 63320053 | MAGNETI MARELLI |
| 63320125 | MAGNETI MARELLI |
| 63321011 | MAGNETI MARELLI |
| 63321028 | MAGNETI MARELLI |
| 63321103 | MAGNETI MARELLI |
| 63321112 | MAGNETI MARELLI |
| 63321120 | MAGNETI MARELLI |
| 63321191 | MAGNETI MARELLI |
| 63321409 | MAGNETI MARELLI |
| 63395575 | MAGNETI MARELLI |
| 7552284 | FIAT |
| 7651812 | FIAT |
generic brand
Mounted on
FIAT
| Elba | Elba | 1.7 | Diesel | 1989 04 | 1996 12 | 146B2.000 | Diesel | 43 | 58 | Break | 1698 | 4 | 146_ | |
| Fiorino | Fiorino | 1.7 | Diesel | 1988 05 | 1999 10 | 149B3.000 | Diesel | 44 | 60 | Pick Up | 1698 | 4 | 146 | |
| Fiorino | Fiorino | 1.7 | Diesel | 1993 10 | 1999 10 | 146B2.000 | Diesel | 42 | 57 | Pick Up | 1697 | 4 | 146 | |
| Fiorino | Fiorino | 1.7 | Diesel | 1988 05 | 1996 10 | 146B2.000 | Diesel | 42 | 57 | Boîte/Trucksnette | 1697 | 4 | 146 | |
| Fiorino | Fiorino | 1.7 | Diesel | 1987 12 | 1990 12 | 149B3.000 | Diesel | 44 | 60 | Boîte/Trucksnette | 1698 | 4 | ||
| Fiorino | Fiorino | 1.7 | Diesel | 1988 05 | 2000 05 | 149B3.000 | Diesel | 44 | 60 | Boîte/Trucksnette | 1698 | 4 | 146 | |
| Fiorino | Fiorino | 1.7 | Diesel | 1997 01 | 2001 05 | 146D7.000 | TD | 46 | 63 | Pick Up | 1698 | 4 | 146 | |
| Fiorino | Fiorino | 1.7 | Diesel | 1988 01 | 1993 10 | 149B2.000 | Diesel | 42 | 57 | Boîte/Trucksnette | 1697 | 4 | ||
| Tipo | Tipo | 1.7 | Diesel | 1988 01 | 1994 10 | 149B4.000 | Diesel | 43 | 58 | Hayon | 1697 | 4 | 160AG | |
| Tipo | Tipo | 1.7 | Diesel | 1988 01 | 1995 10 | 149B4.000 | Diesel | 45 | 61 | Hayon | 1697 | 4 | 160 |
| Uno | Uno | 1.7 | Diesel | 1986 07 | 1989 08 | 149B3.000 | Diesel | 44 | 60 | Hayon | 1698 | 4 | ||
| Uno | Uno | 1.9 | Diesel | 1989 09 | 1994 03 | 149B5.046 | Diesel | 44 | 60 | Hayon | 1929 | 4 | 146A | |
| Uno | Uno | 1.7 | Diesel | 1989 09 | 1993 12 | 146B2.000 | Diesel | 42 | 57 | Hayon | 1698 | 4 | ||
| Uno | Uno | 1.4 | Diesel | 1986 10 | 1990 10 | 146B3.000 | TD | 52 | 71 | Hayon | 1367 | 4 |
LANCIA
| Prisma | Prisma | 1.9 | Diesel | 1983 01 | 1992 02 | 831D.000 | Diesel | 48 | 65 | 1911 | 4 |
