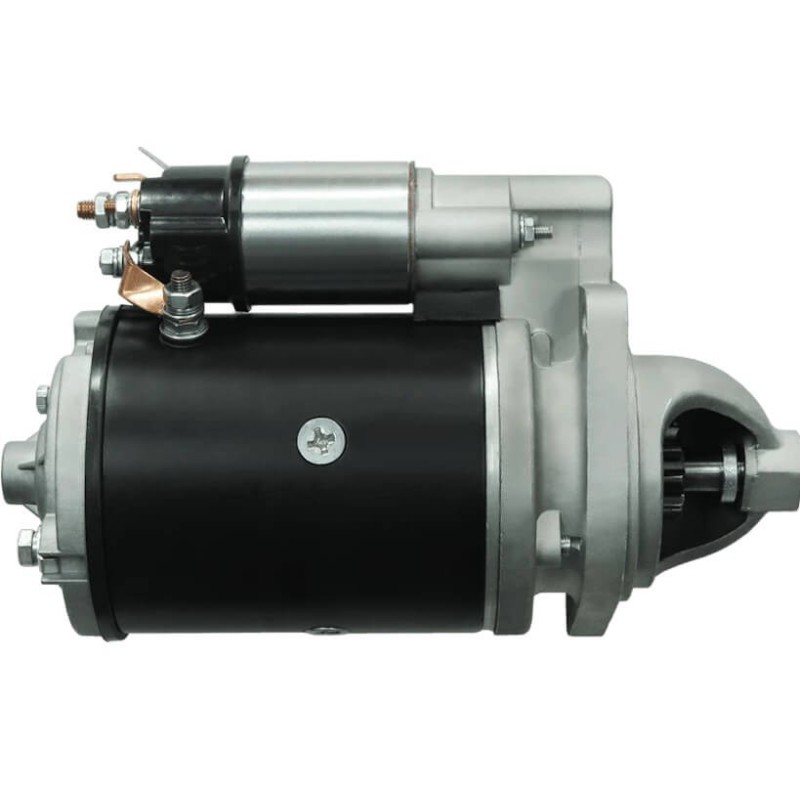

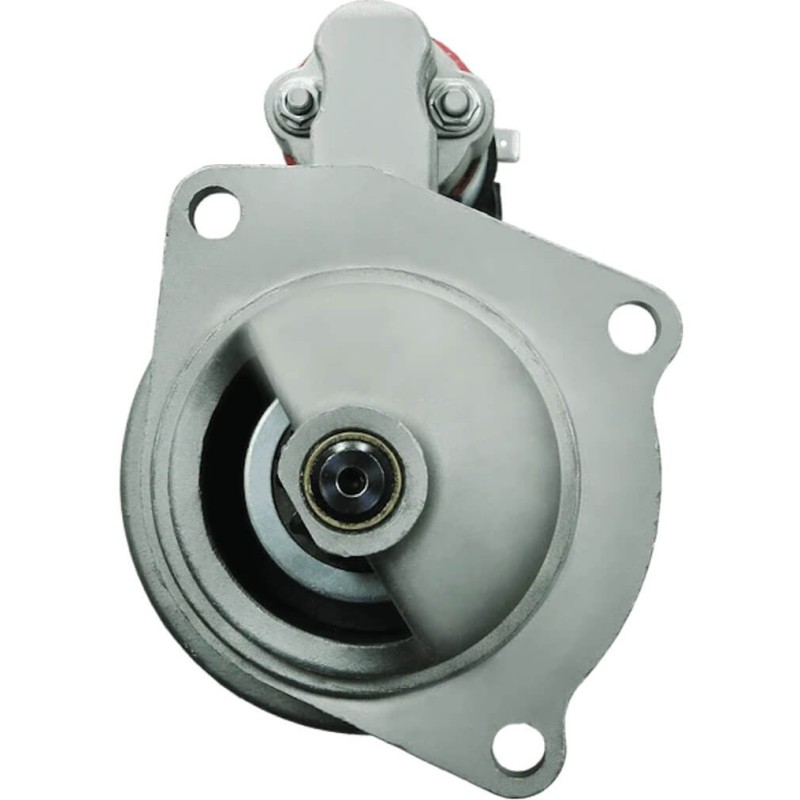

Starter replacing 0001359116 / 26246 / 26304 / 26343a / 26376 for LEYLAND Tractor / JCB Backhoe Loader

All of our alternators and starters are new and come with a two-year warranty.

About Us

WAGENDASS is a French company based north of Lyon.
WAGENDASS is a registered trademark recognized by the European Union.

Our Logistics

Thanks to our numerous warehouses across Europe and our partnerships with suppliers,
orders are shipped quickly via various carriers.

Product Quality
Our alternators and starters are sold new, come with a two-year warranty, and require no return of the old unit
to simplify the ordering process for the customer
there is therefore no need to return the old product

Our Suppliers
Thanks to our extensive experience in the electrical field
and a partnership spanning some forty years with our suppliers
we are able to ensure high-quality products for our customers

Information:

Rotation Cr

KW 2.8

Voltage 12

A = Mount flange 101.00

B =  Drive distance 25.50

F =  Distance / Back 238.70

G =  Distance / Front 72.40

H =  Nbr of teeth 10

B+ M8

Gear type Dd/gr

O =  Distance mm 102.25

O =  Distance 2 144.90

O =  Distance 3 102.75

Nbr of mounting holes 3 (0)

Drive Type Steel

R =  Total length mm 311.00

= LUCAS 26246  / 26246A / 26246E / 26246L / 26246M / 26304
26304A   / 26304B / 26304D / 26343 / 26343A / 26343B / 26343D
26343K / 26351 / 26376 / 26376A / 26376K / 26376L / 27513
27513A / 27526 / 27526A / 27526D

= JCB 71403000R

                 NO CORE EXCHANGE NEEDED

                                 TWO YEARS WARRANTY
