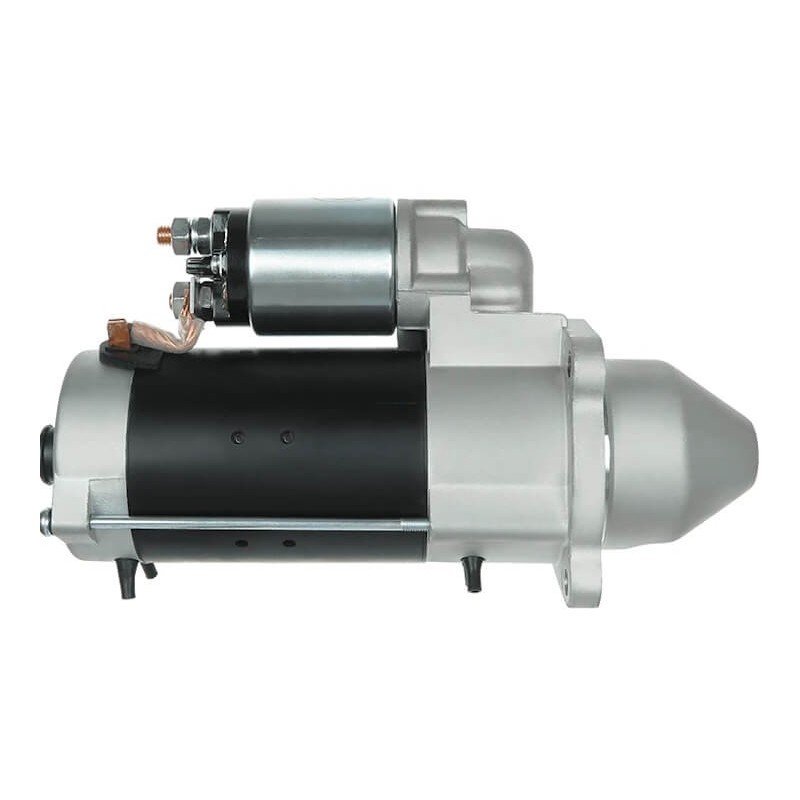

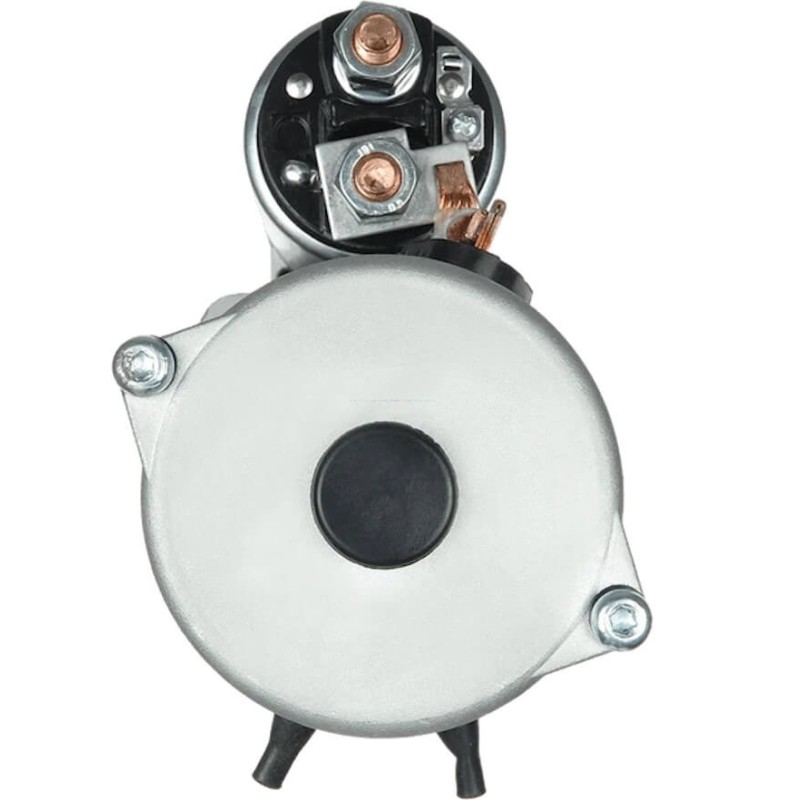

Starter replacing BOSCH 0001262002 / 0001230014 / 0001230006
Starter for tractor / DEUTZ-FAHR
= ISKRA AZF4514 / AZF4197 / 11.131.769 / 11.131.754 / 11.130.841
= FENDT f716900060060
= KHD 01180928 / 01180928KZ / 01181976 / 01182233KZ / 01183235 / 01183677 / 1180928
1180928KZ / 1181976 / 1182233KZ / 1183235 / 1183677
NO CORE EXCHANGE NEEDED
More info

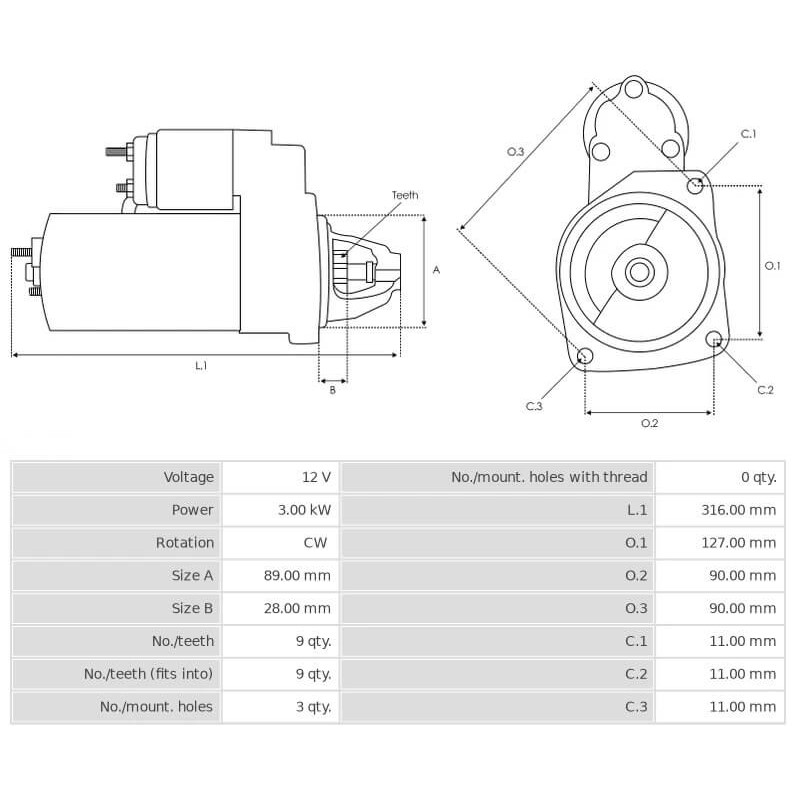

Information:
Voltage 12
KW 3.0
A = Mount flange 89.00
B = Drive distance 28.80
F = Distance / Back 228.50
G = Distance / Front 76.80
H = Nbr of teeth 9
B+ M10
Gear type Gr
O = Distance mm 126.60
O = Distance 2 89.60
O = Distance 3 89.60
Rotation Cr
Nbr of mounting holes 3 (0)
Drive Tipo Steel
R = Total length mm 315.80
generic brand
= BOSCH 0001230006 / 0001230014 / 0001262001 / 0001262002 / 0001262033 / 0001262034 / 0986019020 / 0986019021
= ISKRA AZF4514 / AZF4197 / AZF4194 / 11.131.769 / 11.131.754 / 11.130.841 / IS0841 / IS1254 / IS1440
= FENDT f716900060060
= KHD 01180928 / 01180928KZ / 01181976 / 01182233KZ / 01183235 / 01183677 / 1180928 / 1180928KZ / 1181976 / 1182233KZ / 1183235 / 1183677
= 8EA737629001 / DRS9020 / KTR1021004186 / LRS01603 / SM2822 / STR1110sa / STR1424sa / STR2301 / STR7988sa
used on :
| Atlas Copco, Industrie | |||
| Modèle | Modèle série | Tipo moteur | Tipo |
| DC SERIES | DC SERIES | BF4M1012E B | Underground Mining Equipm |
| XAS146/XAHS106 | XAS146/XAHS106 | BF4M1012E B | Air Compressors |
| Bomag, Industrie | |||
| Modèle | Modèle série | Tipo moteur | modèle |
| BW 211 SERIES | BW 211 SERIES | TCD 2013 L4 2V | Rollers |
| BW 211 D-40 & BW 211 PD-40 | BW 211 D-40 & BW 211 PD-40 | TCD 2013 L4 2V | Rollers |
| BW 211 D-4 & BW 211 PD-4 | BW 211 D-4 & BW 211 PD-4 | TCD 2013 L4 2V | Rollers |
| BW 212 D-40 & BW 212 PD-40 | BW 212 D-40 & BW 212 PD-40 | TCD 2013 L4 2V | Rollers |
| BW 213 DH-4 BVC & BW 213 DI-4 BVC | BW 213 DH-4 BVC & BW 213 DI-4 BVC | TCD 2013 L4 2V | Rollers |
| Case, Industrie | |||
| Modèle | Modèle série | Tipo moteur | modèle |
| MH 2.8 | MH 2.8 | BF4M1012E B | Excavators |
| MH 4 PMS | MH 4 PMS | BF4M1012E B | Excavators |
| RH 4 PMS | RH 4 PMS | BF4M1012E B | Excavators |
| MH 4 | MH 4 | BF4M1012E B | Excavators |
| MH 4.5 | MH 4.5 | BF4M1012E B | Excavators |
| RH CITY | RH CITY | BF4M1012E B | Excavators |
| MH CITY | MH CITY | BF4M1012E B | Excavators |
| MH PLUS | MH PLUS | BF4M1012E B | Excavators |
| MH S | MH S | BF4M1012E B | Excavators |
| DEUTZ-FAHR, Machines agricultural | |||
| Modèle | Modèle série | Tipo moteur | modèle |
| AGROTRON 80 | AGROTRON 80 | BF4M1012E B | Ag Tractors |
| AGROTRON 85 | AGROTRON 85 | BF4M1012E B | Ag Tractors |
| Agri | Agri 605 | ||
| JOHN DEERE, Industrie | |||
| Modèle | Modèle série | Tipo moteur | modèle |
| 2320 (D) | 2320 (D) | BF4M1012E B | Rollers |
| 2322 DS/DSB | 2322 DS/DSB | BF4M1012E B | Rollers |
| 3011 D | 3011 D | BF4M1012E B | Rollers |
| 3012 DS/DSB | 3012 DS/DSB | BF4M1012E B | Rollers |
| DV 8(K) | DV 8(K) | BF4M1012E B | Rollers |
| VOLVO PENTA, Marine | |||
| Modèle | Modèle série | Tipo moteur | modèle |
| D5A T | D5A T | D5A | Pleasure Craft Engines |
| D5A T | D5A T | D5A | Pleasure Craft Engines |
| UCM274C | UCM274C | D5A | Marine Auxiliary |
| YANMAR, Marine | |||
| Modèle | Modèle série | Tipo moteur | modèle |
| DT43 | DT43 | BF4M1012E B | DT43 |
TWO YEARS WARRANTY
