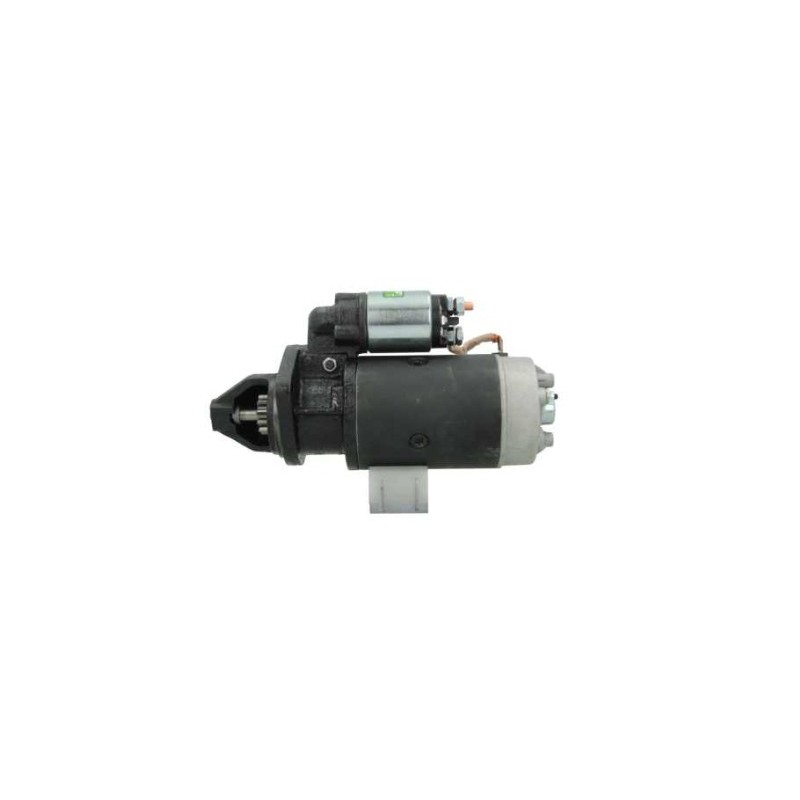

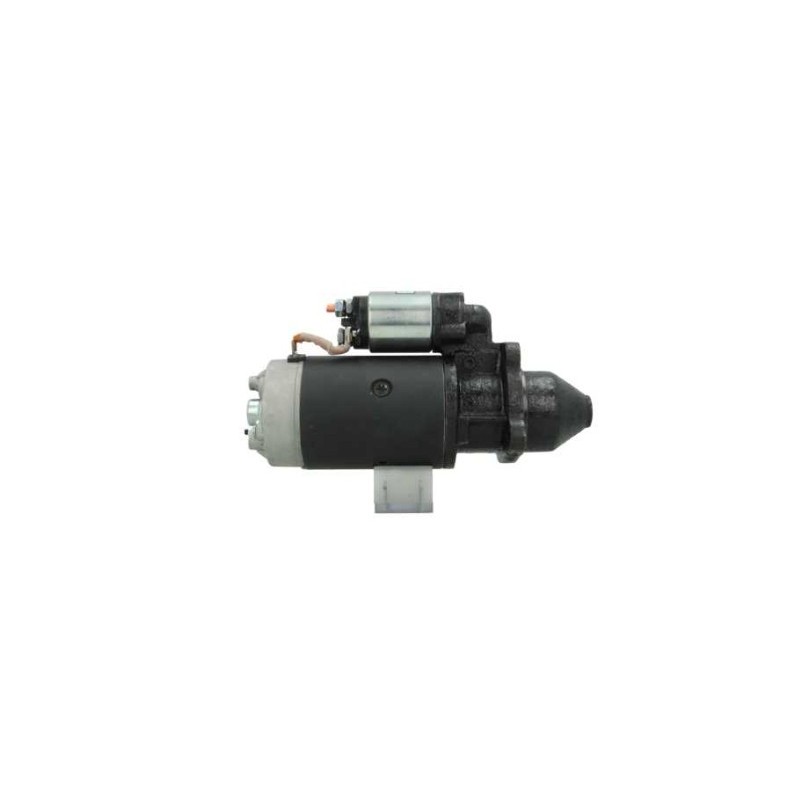

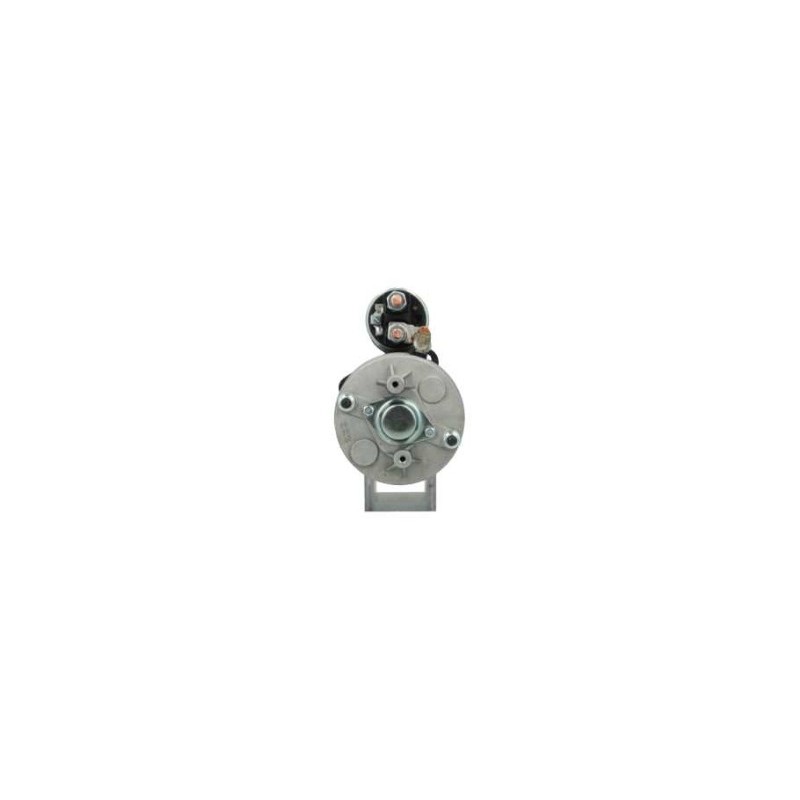

Starter replacing BOSCH 0001368056 / 0001368305 / 0001368310 / 0001368317
= MAN 51262017085 / 51262017118 / 51262017143 / 51262017152 / 51262017162 / 51262019143
= ISKRA azj3199 / azj3374 / azj3388 / azj3404 / 11130626 / 11131085 / 11131144 / 11131236
= REMY 19024286
= MONARK 81388310
= FENDT F926900060130
NO CORE EXCHANGE NEEDED
Information:
Electrical Information |
||
|---|---|---|
| Voltage | 24 | |
| KW | 4.0 | |

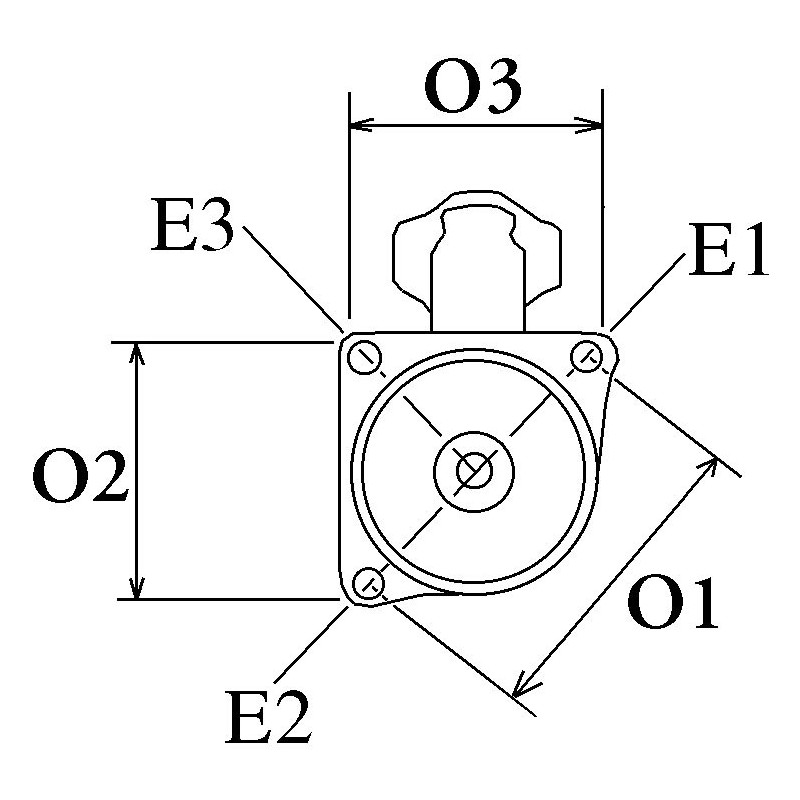

Physical Information |
||
|---|---|---|
| A | Mount flange | 89.00 |
| E | Mounting holes | 10.50 |
| E | Mounting holes 2 | 10.50 |
| E | Mounting holes 3 | 10.50 |
| B | Drive distance | 27.00 |
| F | Distance / Back | 256.00 |
| G | Distance / Front | 74.70 |
| H | Nbr of teeth | 11 |
| I | B+ | M10 |
| N | Gear type | Dd |
| O | Distance mm | 127.00 |
| O | Distance 2 | 81.70 |
| O | Distance 3 | 93.60 |
| P | Rotation | Cr |
| R | Total length mm | 340.00 |
Replacing |
|
|---|---|
| 0001368056 | BOSCH |
| 0001368305 | BOSCH |
| 0001368310 | BOSCH |
| 0001368317 | BOSCH |
| 11.130.626 | ISKRA |
| 11.131.085 | ISKRA |
| 11.131.144 | ISKRA |
| 11.131.236 | ISKRA |
| 113479 | CARGO |
| 19024286 | DELCO REMY |
| 51.26201-7085 | MAN |
| 51.26201-7118 | MAN |
| 51.26201-7143 | MAN |
| 51.26201-7152 | MAN |
| 51.26201-7162 | MAN |
| 51.26201-9143 | MAN |
| 81388310 | MONARK |
| azj3199 | ISKRA |
| azj3374 | ISKRA |
| azj3388 | ISKRA |
| azj3404 | ISKRA |
| cs595 | HC-PARTS |
| F926900060130 | FENDT |
generic brand
replacing
| 0001368056 | BOSCH |
| 0001368317 | BOSCH |
| 0986013720 | BOSCH ruil |
| 11013720 | EuroTec |
| 11017870 | EuroTec |
| 11130626 | MAHLE |
| 113379 | Cargo |
| 113468 | Cargo |
| 113479 | Cargo |
| 1206084 | PIC |
| 1629SP | Spidan |
| 30104 | Lester |
| 33899 | EAI |
| 451154 | VALEO |
| 455622 | VALEO |
| 51262017085 | MAN |
| 51262017118 | MAN |
| 51262017152 | MAN |
| 51262017204 | MAN |
| 51262019118 | MAN |
| 551004113 | PSH |
| 726219001 | HELLA |
| 8813710F | Friesen |
| 8813720F | Friesen |
| 913720 | EDR |
| 943252284 | MAGNETI MARELLI |
| A13720 | ATL |
| A17870 | ATL |
| AZJ3199 | MAHLE |
| CS595 | HC |
| DEM219 | ADI |
| DRS3720 | DELCO REMY |
| DRS7870 | DELCO REMY |
| F042S01202 | BOSCH |
| HCS595 | HC |
| IS0626 | MAHLE |
| JST3036 | HC |
| LRS00765 | LUCAS |
| LRS765 | LUCAS |
| MS356 | MAHLE |
| STR1379sa | Electrolog |
| STR7910 | UNIPOINT |
| STR7910sa | Electrolog |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
