Starter replacing BOSCH 0001416079 / 0001416078 / 0001416023

Information:

Voltage 24

KW 5.4

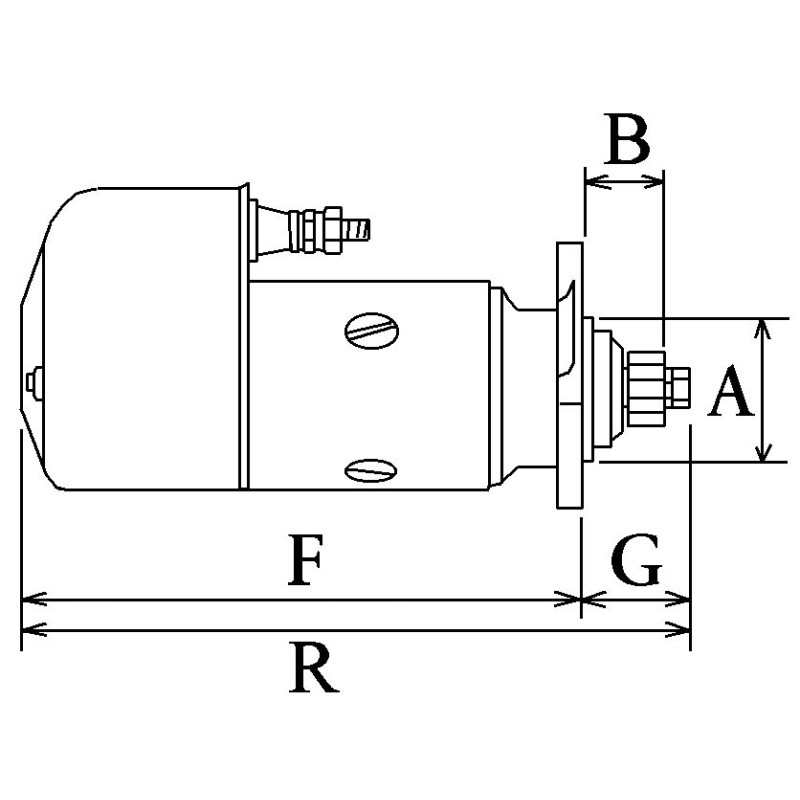

A = Mount flange 92.00

B = Drive distance 47.50

F = Distance / Back 328,00

G = Distance / Front 62.00

H = Nbr of teeth 9

B+ M12

B- M10

Gear type D

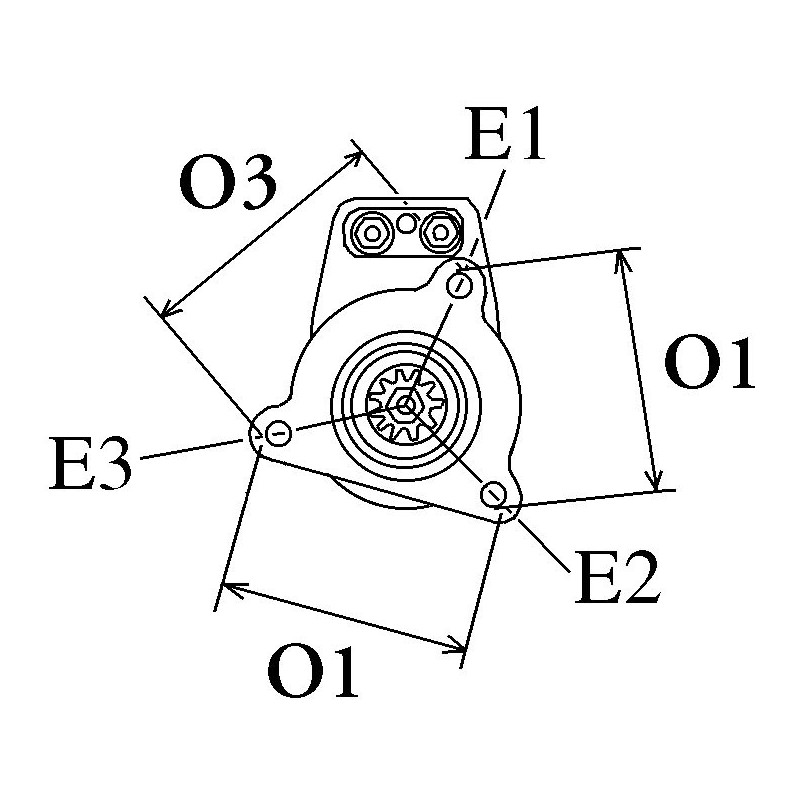

O =  Distance 126.50

O = Distance 2 126.50

O = Distance 3 126.50

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 390.00

generic brand

= BOSCH 0001416079 / 0001416078 / 0001416023

0001416002 / 0001415027 / 0001415001 / 0001410088

0001410002

= Butec 860508 / 857470

= CAV S115HD24-1 / 2998011 / 1403000

= ISKRA AZK5545 / AZK5401 / 11.139.506 / 11.130.041

= MAGNETON 9125330 / 9125260 / 9125220

= DELCO REMY 19024109 / 19024025 / 19024010

= MERCEDES-BENZ 0021510201 / 0021515301 / 0031514101

0031514501 / 0041516001 / 0051512701 / A0021510201

A0021515301 / A0031514101 / A0031514501 / A0031516401

A0041516001 / A0051512701

= MAN 51.25201-7181 / 51.25201-9181 / 51.26201-7092

51.26201-7108 / 51.26201-7114 / 51.26201-7125

51.26201-7127 / 51.26201-7129 / 51.26201-7137

51.26201-7159 / 51.26201-7181 / 51.26201-9117

51.26201-9127 / 51.26201-9181

= RENAULT 5000822346 / 5001000061

= LIEBHERR 6001075

AVF IM310, IM501, IM502, IM523, BOSCH 0 001 410 013, 0 001 410 024, 0 001 410 088, 0 001 415 001, 0 001 415 027, 0 001 416 002, 0 001 416 023, 0 001 416 078, 0 001 416 079, F 042 002 090, Case 0605 329 43, CAV 1403000, S115HD24-1, CLAAS 00 0132 693 0, 0001471630, 1326930, 1471630, DAF 1516707R, DELCO REMY 19024010, 19024025, Elmot SA 6080000, R2308, Kassbohrer 7-431-026-000, LETRIKA (ISKRA) 11.139.023, 11.139.041, LETRIKA (ISKRA) Tech. AZK5164, AZK5182, AZK5401, AZK5403, AZL3611, IS9035K, LIEBHERR 600-10-75, MAGNETON 9-125-010, 9-125-220, 9-125-330, MAN 0001231008, 0001231029, 0001368016, 51 26201 7092, 51 26201 7095, 51 26201 7109, 51 26201 7119, 51 26201 7123, 51 26201 7125, 51 26201 7153, 51 26201 7157, 51 26201 7158, 51 26201 7181, 51 26201 7183, 51 26201 7212, 51 26201 7213, 51 26201 7239, 51 26201 9119, 51-25201-7181, 51-25201-9181, 51-26201-7061, 51-26201-7092, 51-26201-7108, 51-26201-7109, 51-26201-7125, 51-26201-7127, 51-26201-7159, 51-26201-9061, 51-26201-9117, 51-26201-9127, 51-26201-9159, MAGNETI MARELLI 063524160020, 063524160780, 943252194, 943252210, 943252250, MSR692, MSR702, MERCEDES-BENZ 002 151 02 01, 002 151 53 01, 002 151 53 01 80, 002-151-02-01, 002-151-53-01, 003 151 41 01, 003 151 45 01, 003 151 45 01 80, 003-151-41-01, 003-151-45-01, 004 151 60 01, 004 151 60 01 80, 004 151 68 01, 004 151 68 01 80, 004-151-60-01, 004-151-68-01, 005 151 27 01, 743 103 10 00, A 002 151 02 01, A 002 151 53 01, A 003 151 41 01, A 003 151 45 01, A 004 151 60 01, A 004 151 68 01, A 005 151 27 01, A 743 103 10 00, A0021510201, A0021515301, A002151530180, A0031514101, A0031514501, A003151450180, A0041516001, A004151600180, A0041516801, A004151680180, A0051512701, PRESTOLITE 860508GB, 860615, RENAULT 50 00 822 887, 5000241521, 5000241777, 5000822346, 5001000061, STEYR 513210050000, VALEO 455531, 455623

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
