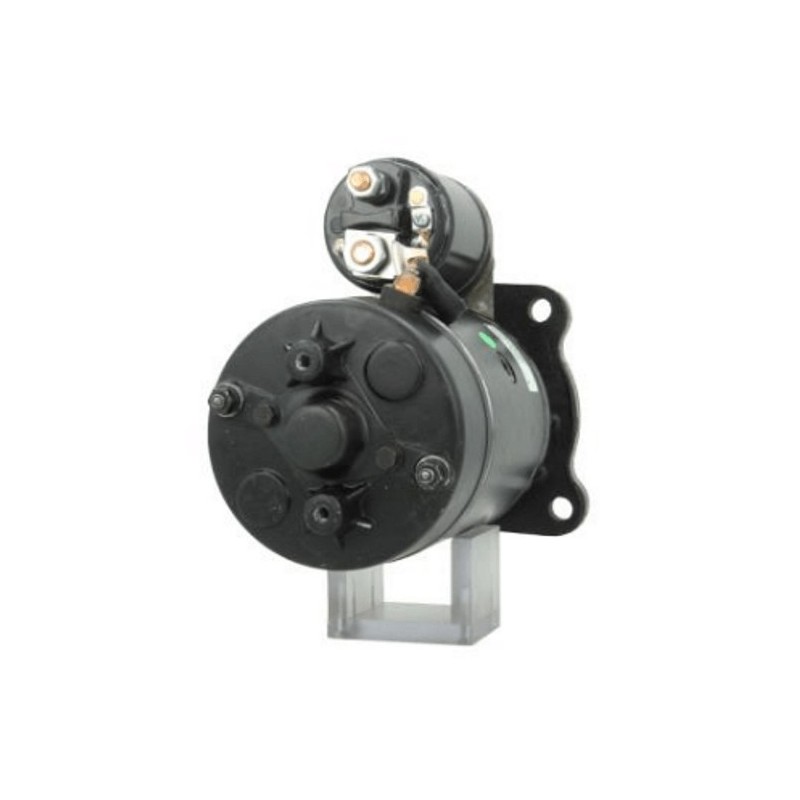

Starter replacing 26215 / 26215A / 26215B / 26215E / 26301
replacing Bosch 0986UN1199 / 0986UR1199 / Magneti Marelli 63227421010 / Wilson 91178868 / ATL A73240 / A73440 / A77450 / ADI DEM902 / CASE K763904 / Lucas LRS00166 / LRS01663 / LRS01664
for Case / David Brown
Features

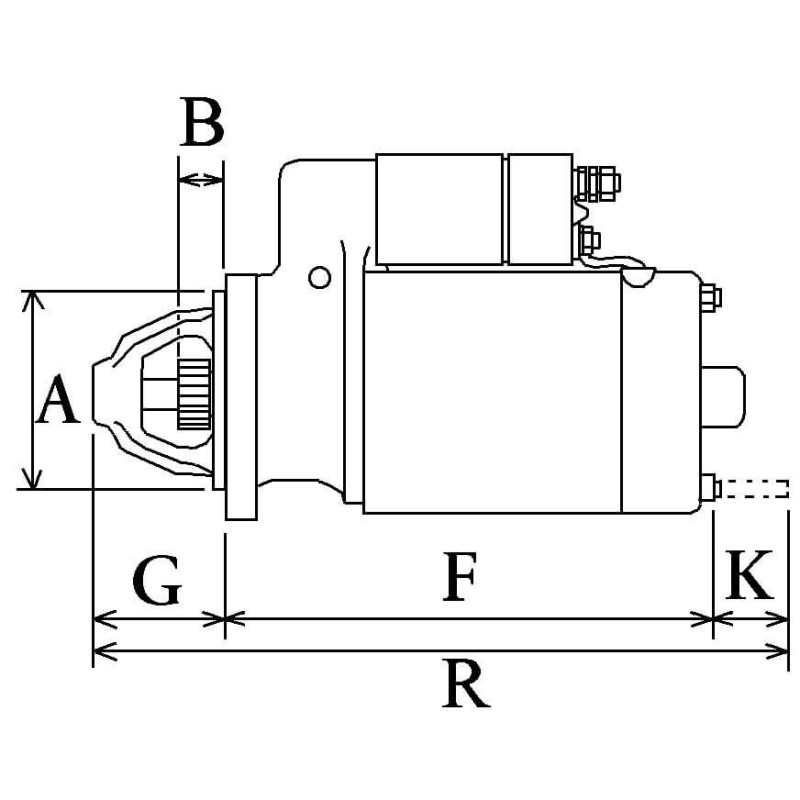

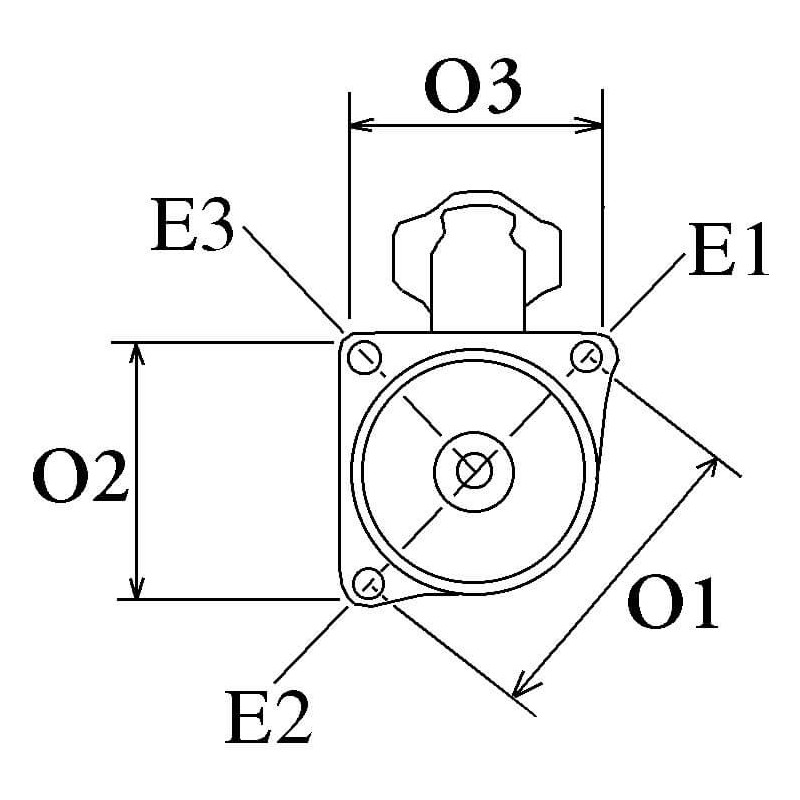

Physical information | ||
---|---|---|
H | No./teeth | 11 |
P | Rotation | CW |
N | Gear type | DD |
A | Mount. flange | 92.00 |
I | B+ | M8 |
No./mount. holes | 3 (0) | |
B | Drive dist. | 27.00 |
E | Mount. holes | 11.00 |
E | Mount. hole 2 | 11.00 |
E | Mount. hole 3 | 11.00 |
F | Dist./back | 230.00 |
G | Dist./front | 70.00 |
O | Dist. mm | 146.00 |
O | Dist. 2 | 103.25 |
O | Dist. 3 | 103.25 |
Electrical information | ||
---|---|---|
Voltage | 12 | |
Kw | 2.2 |
generic brand
replacing
020105 |
Da Silva |
---|---|
0986UN1199 |
Bosch Exchange |
0986UR1199 |
Bosch Exchange |
104926 |
Farcom |
114713 |
Cargo |
250141 |
Elstock |
254438 |
DAS |
26146 |
Lucas |
26215 |
Lucas |
26215A |
Lucas |
26215B |
Lucas |
26215D |
Lucas |
26215E |
Lucas |
26215F |
Lucas |
26301 |
Lucas |
26301A |
Lucas |
26301E |
Lucas |
26301F |
Lucas |
26301H |
Lucas |
26301J |
Lucas |
26301K |
Lucas |
27421 |
Lucas |
27421A |
Lucas |
27421B |
Lucas |
33397 |
EAI |
48212244 |
Artec |
540005113 |
PSH |
540005113SEL |
+line |
600008112 |
DRI |
63227421010 |
Magneti Marelli |
716665 |
NAPA |
8778 |
CEVAM |
91178863 |
Wilson |
91178868 |
Wilson |
A73240 |
ATL |
A73440 |
ATL |
A77450 |
ATL |
CGB27015 |
Ainde |
DEM902 |
ADI |
DRS3469 |
Delco Remy |
IR9151 |
Protech |
K763904 |
Case |
K913007 |
Case |
K957341 |
Case |
KTR1080010226 |
KTR |
LRS00166 |
Lucas |
LRS01665 |
Lucas |
LRS166 |
Lucas |
LRS1665 |
Lucas |
LRS166SEL |
+line |
MTL121 |
Femsa |
RNL166 |
RNL |
S133227 |
Short code |
S168439 |
Short code |
S168440 |
Short code |
SBO1155 |
Quasar |
SLE1001 |
Everkraft |
SR3240X |
Bosch (USA) |
ST00076 |
TMI |
STR56007 |
Wood Auto |
WOOSTR56007 |
Wood Auto |
