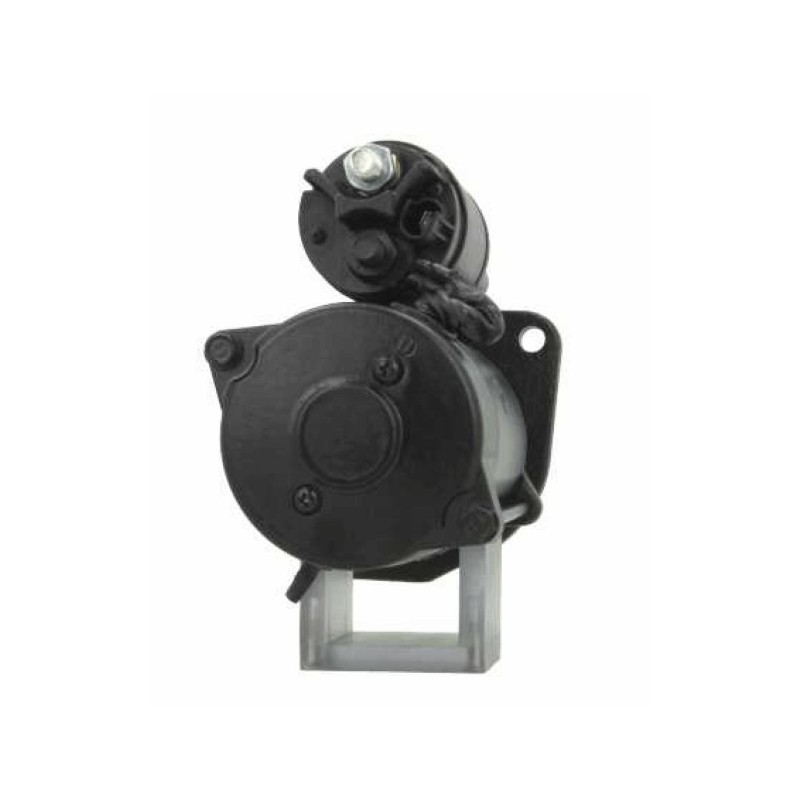

Starter Iskra / Mahle MS235 / AZE4230 / AZE4540 / IS1303 for Valtra
Replacing | |
|---|---|
| 11.131.116 | Mahle Letrika |
| 11.131.426 | Mahle Letrika |
| 11.131.728 | Mahle Letrika |
| 11.132.101 | Mahle Letrika |
| 83646400 | Valmet |
| 836667365 | SISU |
| 836673289 | SISU |
| 836867365 | SISU |
| AZE4166 | Mahle Letrika |
| AZE4230 | Mahle Letrika |
| AZE4540 | Mahle Letrika |
| AZE4597 | Mahle Letrika |
More info
Mahle Letrika
Physical information | ||
|---|---|---|
| H | No./teeth | 11 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 89.00 |
| I | B+ | M10 |
| No./mount. holes | 3 (0) | |
| B | Drive dist. | 48.00 |
| E | Mount. holes | 11.00 |
| E | Mount. hole 2 | 11.00 |
| E | Mount. hole 3 | 11.00 |
| F | Dist./back | 200.50 |
| G | Dist./front | 92.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 89.30 |
| O | Dist. 2 | 89.30 |
| O | Dist. 3 | 126.50 |
| R | Total length mm | 297.50 |
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 3.0 | |
for
| brand | Model | Typ | Year |
| CASE | 110 4.4 | 01.1997-12.2003 | |
| CASE | 68 3.3 | 01.1998-12.2004 | |
| CASE | 75 3.3 | 01.1998-12.2004 | |
| CASE | 80 PRO | 01/10/07 | |
| CASE | 86 | 01.1999-01.2004 | |
| CRYSTAL TRACTOR | ORION 13 | ||
| MASSEY FERGUSON | MF 5300 | ||
| VALTRA | 1180 S | ||
| VALTRA | A650 3.3 | ||
| VALTRA | A650 3.3 | 01/01/10 | |
| VALTRA | A650 F 3.3 | 01/01/10 | |
| VALTRA | A72 3.3 | [33DTA] | |
| VALTRA | A75 4WD 3.3 | [33DTA] | |
| VALTRA | A750 3.3 | ||
| VALTRA | A750 3.3 | 01/06/09 | |
| VALTRA | A750F 3.3 | 01/06/09 | |
| VALTRA | A75n/A75L 3.3 | [33DT] | |
| VALTRA | A83 3.3 | [33CTA] | |
| VALTRA | A850 3.3 | ||
| VALTRA | A850 3.3 | 01/05/09 | |
| VALTRA | A850 F 3.3 | 01/06/09 | |
| VALTRA | A93 3.3 | [33CTA] | |
| VALTRA | A950 4.4 | ||
| VALTRA | A950 4.4 | 01/03/09 | |
| VALTRA | A950 F 3.3 | ||
| VALTRA | A95N 4.4 | [33DTA] | |
| ZETOR | 3320 2.6 | [Z5201] | 01/01/92 |
| ZETOR | 3511 2.7 | [Z5201] | 01/01/94 |
| ZETOR | 3513 | [Z3001] | |
| ZETOR | 3520. 3540 | [7201] | 01/01/95 |
| ZETOR | 4320 3.9 | [Z6201] | 01/01/92 |
| ZETOR | 4320 3.9 | [Z6202] | |
| ZETOR | 4341 3.9 | [6202] | 01/01/97 |
| ZETOR | 4712 2.5 | [Z4701] | 01.1974-12.1977 |
| ZETOR | 4718 2.5 | [Z4701] | 01.1974-12.1977 |
| ZETOR | 4911 2.6 | [Z4901] | 01.1976-12.1980 |
| ZETOR | 5011 2.6 | [Z5001] | 01.1980-12.1984 |
| ZETOR | 5211 2.6 | [Z5001] | 01.1984-12.1990 |
| ZETOR | 5213 | ||
| ZETOR | 5243 | ||
| ZETOR | 5245 | ||
| ZETOR | 5320.534 3.5 | [Z7201] | 01/01/92 |
| ZETOR | 5321 3.5 | [7202] | 01/01/97 |
| ZETOR | 5511.5545 | [Z5501] | |
| ZETOR | 5516 | [Z5501] | |
| ZETOR | 5611.5645 | [Z5501] | |
| ZETOR | 5647 | [Z5501] | |
| ZETOR | 5711.5718 3.1 | [Z5501] | 01.1974-12.1977 |
| ZETOR | 5745.5748 | [Z5501] | |
| ZETOR | 5911.5945 3.4 | [Z5901] | 01.1978-12.1980 |
| ZETOR | 6011.6045 3.4 | [Z6001] | 01.1980-12.1984 |
| ZETOR | 6211 3.4 | [Z6201] | 01.1984-12.1990 |
| ZETOR | 6212.6245 3.4 | [Z6201] | 01.2984-12.1990 |
| ZETOR | 6320.634 3.9 | [Z7701] | 01/01/92 |
| ZETOR | 6321.6341 3.9 | [Z7701] | 01/01/77 |
| ZETOR | 6511.6518 | ||
| ZETOR | 6522 | ||
| ZETOR | 6711.6718 3.4 | [Z6701] | 01.1974-12.1977 |
| ZETOR | 6745.6748 3.4 | [Z6701] | 01.1974-12.1977 |
| ZETOR | 6911 3.4 | [Z6901/] | 01.1978-12.1980 |
| ZETOR | 6918.6945 3.4 | [Z6901/] | 01.1978-12.1980 |
| ZETOR | 7011.7045 3.4 | [Z7001/] | 01.1980-12.1984 |
| ZETOR | 7211.7245 3.5 | [Z7201] | 01.1984-12.1990 |
| ZETOR | 7321.7341 3.9 | [Z7302] | 01/01/97 |
| ZETOR | 7340 3.9 | [Z7301] | 01/01/92 |
| ZETOR | 7520 4.1 | [7801/] | 01/01/91 |
| ZETOR | 7520.754 | ||
| ZETOR | 7711.7745 3.9 | [Z7701] | 01.1986-12.1990 |
