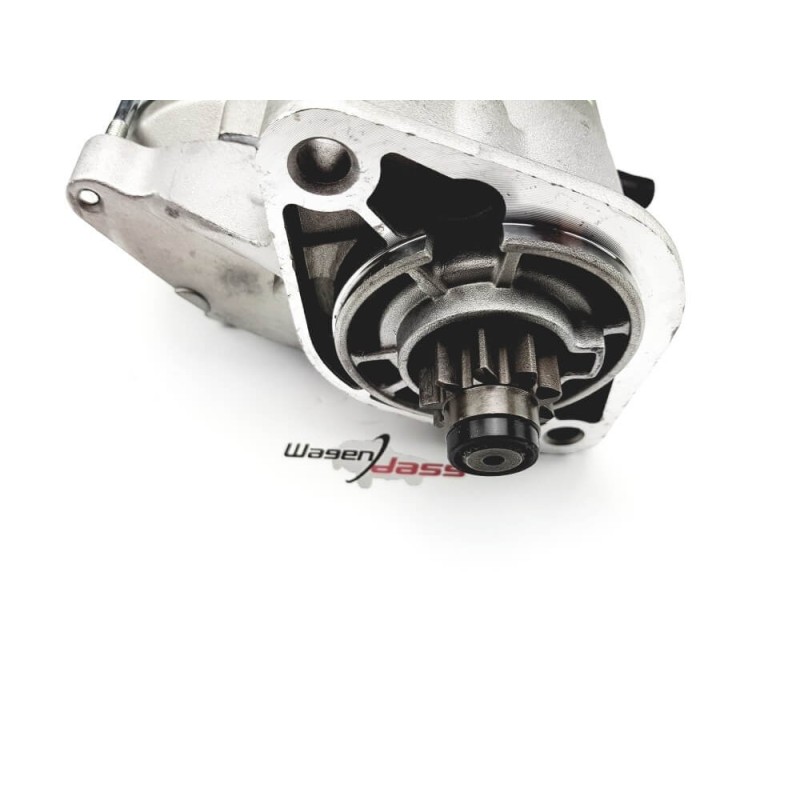

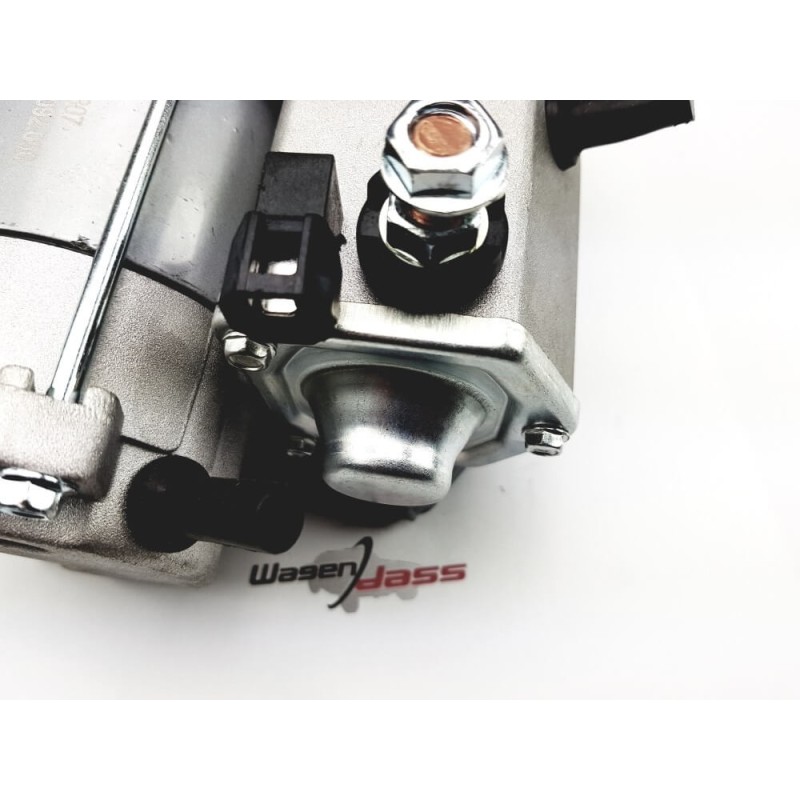

Starter DENSO DSN2087 / 228000-6322 / 428000-2640 pour KUBOTA
Starter 13 teeth for KUBOTA
DENSO 228000-6321 / 228000-6320 / 228000-6322 / 428000-1160 / 428000-1161 / 428000-2640 / DSN2087
KUBOTA 15852-63010 / 16235-63010 / 16235-63011 / 16235-63012 / 17423-63012
NO CORE EXCHANGE NEEDED
More info
Information:
Voltage 12
KW 1.4
A = Mount flange 66.00
B = Drive distance 17.00
F = Distance / Back 126.00
G = Distance / Front 30.00
H = Nbr of teeth 13
B+ M8
Gear type Gr
O = Distance 108.75
Rotation Cr
Nbr of mounting holes 2 (0)
Clutch Tipo Wet
Drive Tipo Steel
generic brand

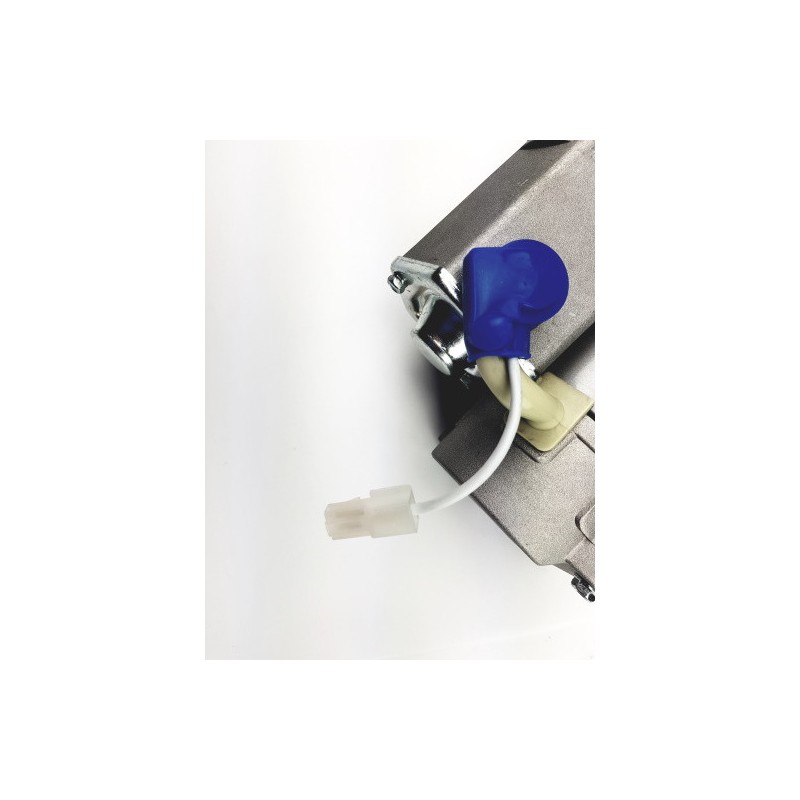

THE PLUG ON THE BACK IS AN EXTRA CONNECTION PRESENT ONLY ON SOME MODELS IF YOU DON'T HAVE IT IT DOESN'T CONNECT THIS PLUG
DELCO REMY DRS0235
Kramer 0000803921
KTR KTR1381040184
Elstock 253480
LUCAS LRS02308
PRESTOLITE 20513076
UNIPOINT STR8090
TWA TRS188
WILSON 91295578 / 91295605
fits:
| Model | Annèe | Engine |
| 528 | 2008 | KUBOTA D1105 |
| 528 | 2009 | KUBOTA D1105 |
| 528 | 2010 | KUBOTA D1105 |
| 528 | 2011 | KUBOTA D1105 |
| 528 | 2012 | KUBOTA D1105 |
| 528+ | 2001 | KUBOTA D1105-E |
| 528+ | 2002 | KUBOTA D1105-E |
| 528+ | 2003 | KUBOTA D1105-E |
| 528+ | 2004 | KUBOTA D1105-E |
| 528+ | 2005 | KUBOTA D1105-E |
| 530+ | 2002 | KUBOTA D1105-E |
| 530+ | 2003 | KUBOTA D1105-E |
| 530+ | 2004 | KUBOTA D1105-E |
| 530+ | 2005 | KUBOTA D1105-E |
| 530+ | 2006 | KUBOTA D1105-E |
| 530+ | 2007 | KUBOTA D1105-E |
| 530+ | 2008 | KUBOTA D1105-E |
| 630 | 2006 | KUBOTA D1105 |
| 630 | 2007 | KUBOTA D1105 |
| 630 | 2008 | KUBOTA D1105 |
| 630 | 2009 | KUBOTA D1105 |
| 630 | 2010 | KUBOTA D1105 |
| 630 | 2011 | KUBOTA D1105 |
| 630 | 2012 | KUBOTA D1105 |
| BX22 | 2002 | KUBOTA D905E-BX 22HP Dsl |
| BX22 | 2003 | KUBOTA D905E-BX 22HP Dsl |
| BX2200D | 2001 | KUBOTA D905E-BX 22HP Dsl |
| BX2200D | 2002 | KUBOTA D905E-BX 22HP Dsl |
| BX2200D | 2003 | KUBOTA D905E-BX 22HP Dsl |
| KX41-2 | 0 | KUBOTA D1105BH 21.6HP Dsl |
| KX41-2 | 95 | KUBOTA D1105BH 21.6HP Dsl |
| KX41-2S | 0 | KUBOTA D1105BH 21.6HP Dsl |
| KX41-2SV | 0 | KUBOTA D1105BH 21.6HP Dsl |
| KX61-2 | 0 | KUBOTA D1105BH 27HP Dsl |
| KX61-2 | 95 | KUBOTA D1105BH 27HP Dsl |
| KX61-2S | 0 | KUBOTA D1105BH 27HP Dsl |
| KX61-2S | 95 | KUBOTA D1105BH 27HP Dsl |
| KX91-2 | 0 | KUBOTA V1505BH 27.5HP Dsl |
| KX91-2 | 95 | KUBOTA V1505BH 27.5HP Dsl |
| KX91-2S | 0 | KUBOTA V1505EBH 27.5HP Dsl |
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
