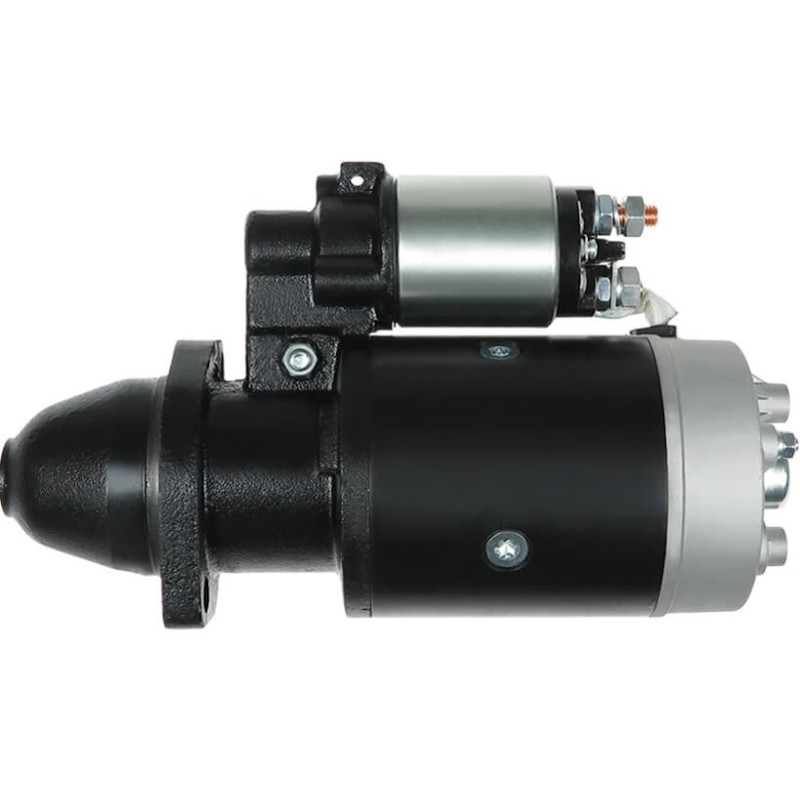

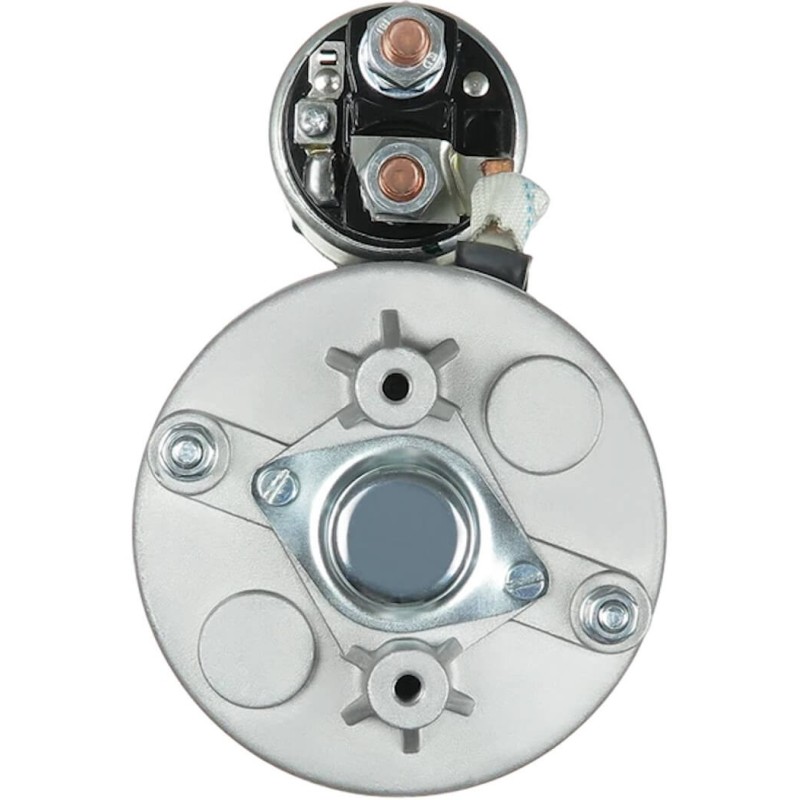

Starter replacing 0001362303 / 0001362304 / 0986017970
Starter replacing 0001362303 / 0001362304 / 0986017970
Starter replacing 0001362303 / 0001362304 / 0986017970
Previous
Next
Starter replacing 0001362303 / 0001362304 / 0986017970
Starter replacing 0001362303 / 0001362304 / 0986017970
Starter replacing 0001362303 / 0001362304 / 0986017970

Starter replacing 0001362303 / 0001362304 / 0986017970

w115472

Starter for HATZ / DEUTZ-FAHR / GOLDONI

= DELCO REMY DRS6200 / DRS7970

= ISKRA IS0250 / IS1033 / AZJ3386 / AZJ3554 / 11.130.736 / 11.131.140

= 501835000513 / 40000700 / 40000901

                               NO CORE EXCHANGE NEEDED

                                               TWO YEARS WARRANTY

Read more
€149.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

0001362303 BOSCH
0001362304 BOSCH
101073 KUHNER
101073M KUHNER
11.131.140 ISKRA / LETRIKA
115472 CARGO
120-30107 ROBERT'S
12411333980 BMW
18236N WAI / TRANSPO
18236R WAI / TRANSPO
19083024 DELCO
20401432 REAL
25-1266 ELSTOCK
260-62119 DIXIE
33701 EAI
6010234 SANDO
6021180 SANDO
71-15-18236 WILSON
72735765 MAHLE
730.002.112 PSH
8213578 POWERMAX
8546 CEVAM
91-15-7003 WILSON
A17970 CASE
AZJ3386 ISKRA / LETRIKA
CGB-27970 AINDE
CST10234 CASCO
CST10234AS CASCO
CST10234ES CASCO
CST10234GS CASCO
CST10234OS CASCO
CST10234RS CASCO
CST21180 CASCO
CST21180AS CASCO
CST21180ES CASCO
CST21180GS CASCO
CST21180OS CASCO
CST21180RS CASCO
DRS7970 DELCO
DS9080 DELCO
IS1033 ISKRA / LETRIKA
LRS01202 LUCAS
LRS1202 LUCAS
MAHMS137 WOODAUTO
MAV122340 SIOM
MS 137 MAHLE
MS137 MAHLE
RNL362304 RNL
STB4964 KRAUF
STB9964 KRAUF
STI4964 KRAUF
STN4964 KRAUF
STR22040 WOODAUTO
STRS093 3EFFE
UD16581S AS-PL
UD16925S AS-PL
S0753S AS-PL
STR7959 ELECTROLOG
STR1619 ELECTROLOG
1333980 BMW
3.553.0061A VM
35530061A VM
50801333980 MERCURY
50854178 MERCURY
813255 CATERPILLAR
STX210079 STARDAX
730.002.112.460 PSH
F032115472 CARGO
S135.336 PSH
S144.304 PSH

Features

Information:

Voltage 12

KW 2.7

A = Mount flange 82.50

B = Drive distance 21.20

F = Distance / Back 246.50

G = Distance / Front 68.50

H = Nbr of teeth 11

B+ M10

Gear type Dd

O1 = Distance 105.00

Rotation Cr

Nbr of mounting holes 2 (0)

generic brand

= BOSCH 0001362303 / 0001362304 / 0001354108 / 0001358013 / 0001358027 / 0001359060 / 0001362011 / 0001362059 / 0986016200 / 0986017970

= DELCO REMY DRS6200 / DRS7970

= ISKRA IS0250 / IS1033 / AZJ3386 / AZJ3554 / 11.130.736 / 11.131.140

= 501835000513 / 40000700 / 40000901

                   NO CORE EXCHANGE NEEDED

                                            TWO YEARS WARRANTY

Mounting on

Brand Model Typ Year
BMW Engine D150   01.1981 - 12.1985
BMW Engine D190   01.1982 - 12.1986
BMW Engine D530   01.1986 - 12.1987
BMW Engine D636   01.1986 - 12.1987
CUMMINS EL 300 4.2   01/01/04
CUMMINS ES 300 4.2   01/01/04
CUMMINS EL 250 4.2   01/01/04
CUMMINS ES 250 4.2   01/01/04
HATZ 2-4L/M41   -
HATZ 3L30   01.1980 - 12.1988
HATZ 4L40   01/01/81
HATZ V108   01.1980 - 12.1985
HATZ 2L30S   01.1980 - 12.1989
HATZ 4L30   01.1980 - 12.1989
HATZ D108   01.1980 - 12.1985
HATZ 2L30C   01.1980 - 12.1989
HATZ Engine 2L41C -
HATZ 2M41 1.7   -
HATZ 3M41 2.6   -
HATZ 3M43-EGR 2.6   -
HATZ 4M42-EGR 3.4   -
HATZ 4M41 3.4   -
HATZ 4M43-EGR 3.4   -
LAND ROVER RANGE ROVER I 2.4 TD 4x4 11A 04.1986 - 12.1990
LAND ROVER RANGE ROVER I 2.4 TD 4x4 11A 04.1986 - 07.1994
LAND ROVER RANGE ROVER I 2.5 TD 4x4 95A 10.1989 - 11.1992
LANZ Zetcat 41 3M40 01/01/93
LEE BOY Sand Spreader   01/01/80
MERCEDES-BENZ T2/L Van L 613 D (310.510, 313.424, 313.427, 313.429) OM353.963 04.1977 - 12.1988
MERCEDES-BENZ T2/L Van L 613 D (310.510, 313.424, 313.427, 313.429) OM353.966 04.1977 - 12.1988
MERCEDES-BENZ T2/L Platform/Chassis L 613 D (313.402, 313.404) OM353.963 04.1977 - 12.1988
MERCEDES-BENZ T2/L Platform/Chassis L 613 D (313.402, 313.404) OM353.966 04.1977 - 12.1988
MERCRUISER 530D-TA 3.0   -
MERCRUISER D183 3.0   -
MERCRUISER 636D-TA 3.6   -
MERCRUISER D219 3.6   -
MERCRUISER D254 4.2   -
MERCRUISER EH700 6.5   -
VM HR 692 HI 9   -
VM HR 692HT9 4.2   01/01/81
VM 694HT10 4.2   -
VW TRANSPORTER T3 Bus (25_) 1.6 D CS 01.1981 - 07.1987
VW TRANSPORTER T3 Platform/Chassis (24_) 1.6 D CS 01.1981 - 07.1987
VW TRANSPORTER T3 Van (24_, 25_) 1.6 D CS 01.1981 - 07.1987
VW TRANSPORTER T3 Bus (25_) 1.6 TD JX 08.1984 - 07.1992
VW TRANSPORTER T3 Van (24_, 25_) 1.6 TD JX 10.1984 - 07.1992
VW TRANSPORTER T3 Platform/Chassis (24_) 1.6 TD JX 10.1984 - 07.1992
VW TRANSPORTER T3 Platform/Chassis (24_) 1.6 TD Syncro JX 03.1986 - 07.1992
VW TRANSPORTER T3 Bus (25_) 1.6 TD Syncro JX 03.1986 - 07.1992
VW TRANSPORTER T3 Van (24_, 25_) 1.6 TD Syncro JX 03.1986 - 07.1992
VW TRANSPORTER T3 Van (24_, 25_) 1.7 D KY 08.1984 - 07.1992
VW TRANSPORTER T3 Bus (25_) 1.7 D KY 10.1986 - 07.1992
VW TRANSPORTER T3 Platform/Chassis (24_) 1.7 D KY 08.1985 - 07.1992
