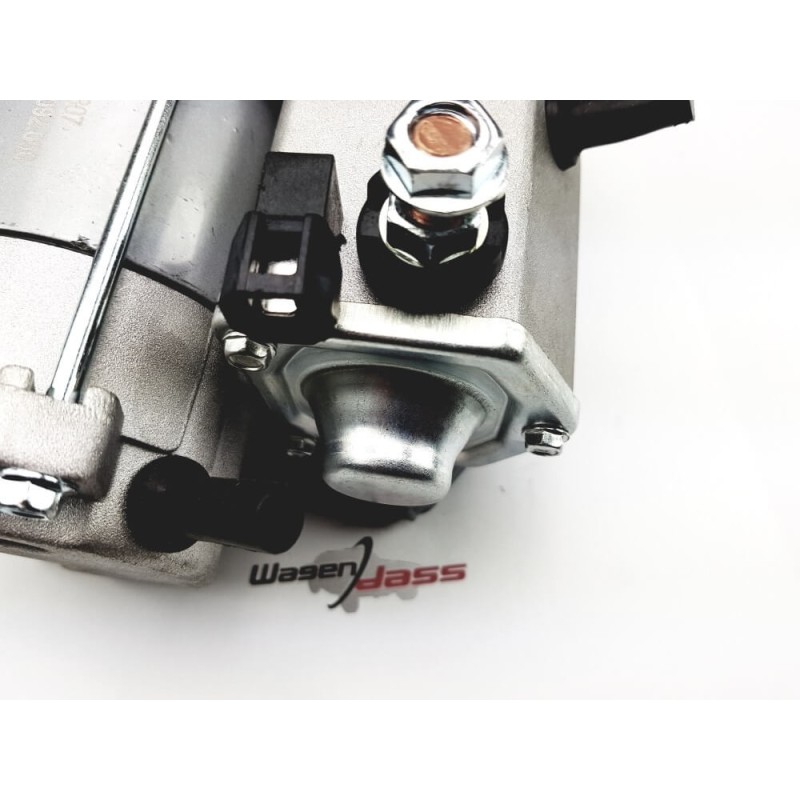

Anlasser DENSO DSN2087 / 228000-6322 / 428000-2640 pour KUBOTA
Anlasser 13 tooths for KUBOTA
DENSO 228000-6321 / 228000-6320 / 228000-6322 / 428000-1160 / 428000-1161 / 428000-2640 / DSN2087
KUBOTA 15852-63010 / 16235-63010 / 16235-63011 / 16235-63012 / 17423-63012
KEINE RÜCKGABE DES ALTEN ANTRAGS
Mehr Infos
Information:
Volt 12
KW 1.4
A = Montageflansch 66.00
B = Ritzelabs. 17.00
F = Abs./Hinten 126.00
G = Abs./Vorne 30.00

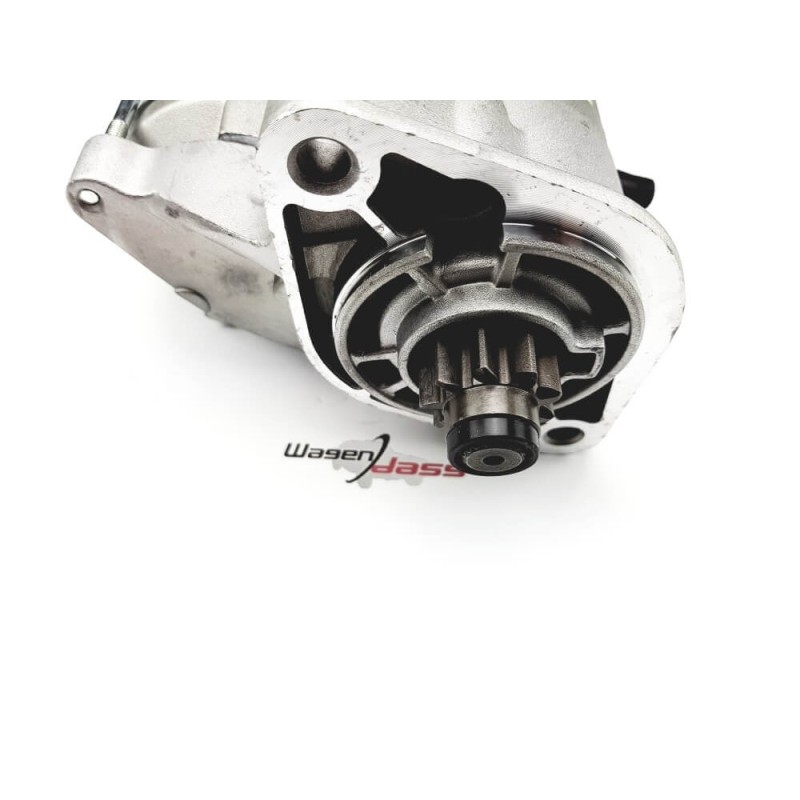

H = Anzahl der Zähne 13
B+ M8
Getriebetyp Gr
O = Abstand 108.75
Umlaufsrichtung Cr
Löcheranzahl 2 (0)
Kupplungstyp Wet
Ritzeltyp Stahl
generische Marke

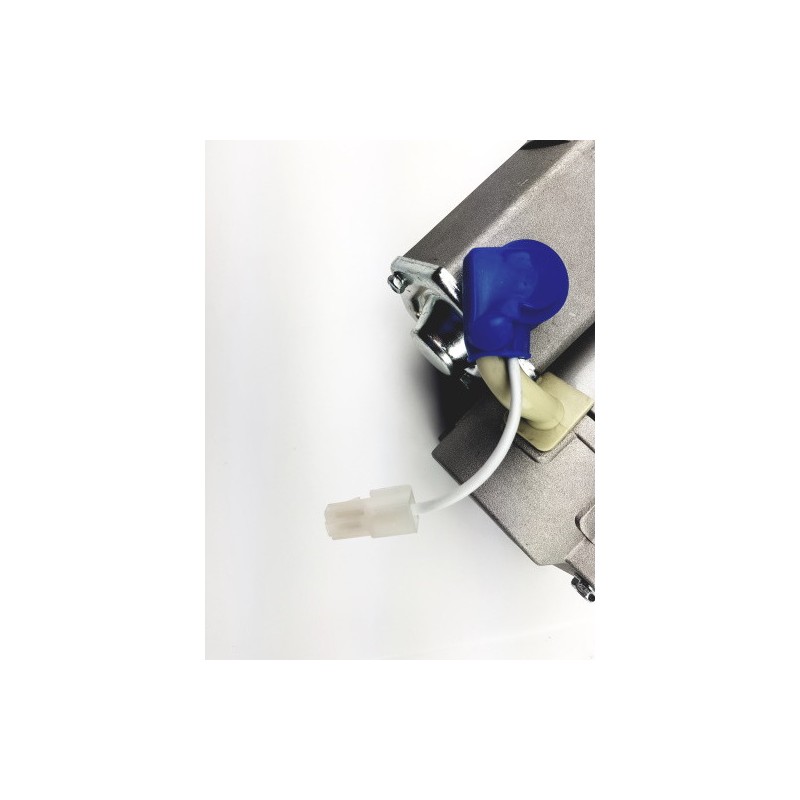

THE PLUG ON THE BACK IS AN EXTRA CONNECTION PRESENT ONLY ON SOME MODELS IF YOU DON'T HAVE IT IT DOESN'T CONNECT THIS PLUG
DELCO REMY DRS0235
Kramer 0000803921
KTR KTR1381040184
Elstock 253480
LUCAS LRS02308
PRESTOLITE 20513076
Unipoint STR8090
TWA TRS188
Wilson 91295578 / 91295605
für :
| Model | Annèe | Motor |
| 528 | 2008 | KUBOTA D1105 |
| 528 | 2009 | KUBOTA D1105 |
| 528 | 2010 | KUBOTA D1105 |
| 528 | 2011 | KUBOTA D1105 |
| 528 | 2012 | KUBOTA D1105 |
| 528+ | 2001 | KUBOTA D1105-E |
| 528+ | 2002 | KUBOTA D1105-E |
| 528+ | 2003 | KUBOTA D1105-E |
| 528+ | 2004 | KUBOTA D1105-E |
| 528+ | 2005 | KUBOTA D1105-E |
| 530+ | 2002 | KUBOTA D1105-E |
| 530+ | 2003 | KUBOTA D1105-E |
| 530+ | 2004 | KUBOTA D1105-E |
| 530+ | 2005 | KUBOTA D1105-E |
| 530+ | 2006 | KUBOTA D1105-E |
| 530+ | 2007 | KUBOTA D1105-E |
| 530+ | 2008 | KUBOTA D1105-E |
| 630 | 2006 | KUBOTA D1105 |
| 630 | 2007 | KUBOTA D1105 |
| 630 | 2008 | KUBOTA D1105 |
| 630 | 2009 | KUBOTA D1105 |
| 630 | 2010 | KUBOTA D1105 |
| 630 | 2011 | KUBOTA D1105 |
| 630 | 2012 | KUBOTA D1105 |
| BX22 | 2002 | KUBOTA D905E-BX 22HP Dsl |
| BX22 | 2003 | KUBOTA D905E-BX 22HP Dsl |
| BX2200D | 2001 | KUBOTA D905E-BX 22HP Dsl |
| BX2200D | 2002 | KUBOTA D905E-BX 22HP Dsl |
| BX2200D | 2003 | KUBOTA D905E-BX 22HP Dsl |
| KX41-2 | 0 | KUBOTA D1105BH 21.6HP Dsl |
| KX41-2 | 95 | KUBOTA D1105BH 21.6HP Dsl |
| KX41-2S | 0 | KUBOTA D1105BH 21.6HP Dsl |
| KX41-2SV | 0 | KUBOTA D1105BH 21.6HP Dsl |
| KX61-2 | 0 | KUBOTA D1105BH 27HP Dsl |
| KX61-2 | 95 | KUBOTA D1105BH 27HP Dsl |
| KX61-2S | 0 | KUBOTA D1105BH 27HP Dsl |
| KX61-2S | 95 | KUBOTA D1105BH 27HP Dsl |
| KX91-2 | 0 | KUBOTA V1505BH 27.5HP Dsl |
| KX91-2 | 95 | KUBOTA V1505BH 27.5HP Dsl |
| KX91-2S | 0 | KUBOTA V1505EBH 27.5HP Dsl |
ZWEI JAHRE GARANTIE
KEINE RÜCKGABE DES ALTEN ANTRAGS
