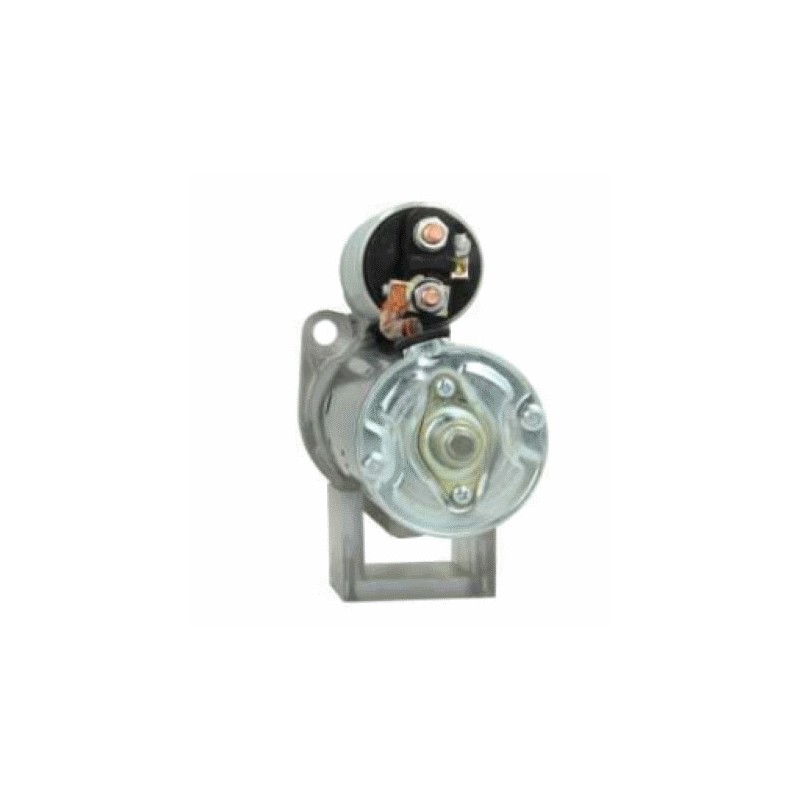

Starter replacing 0001314047 / 001109363 / 0986018080 / 0986018081 for engine HATZ

Information:

Voltage 12

KW 1.5

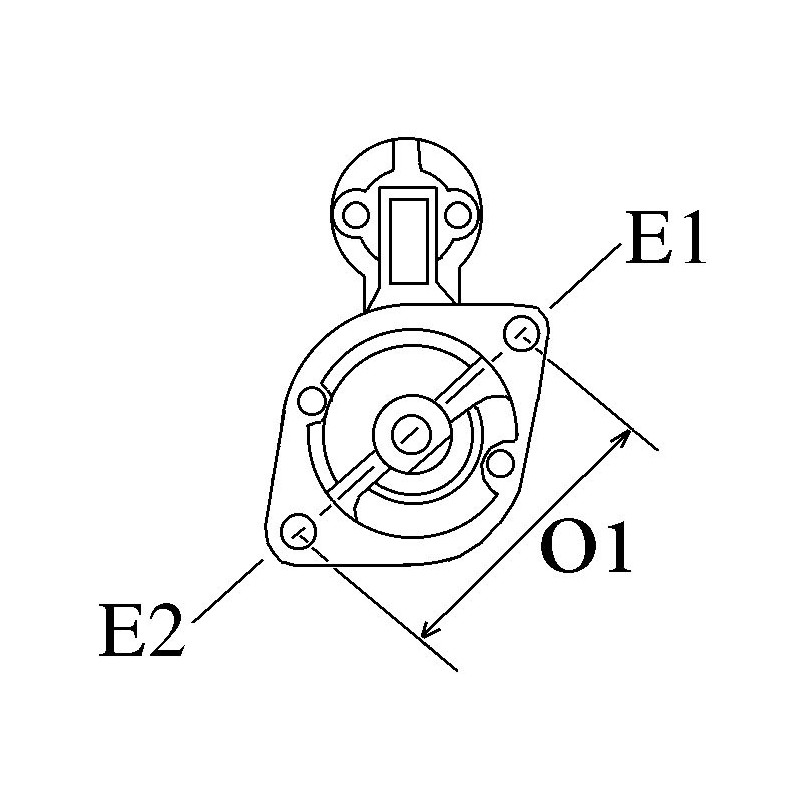

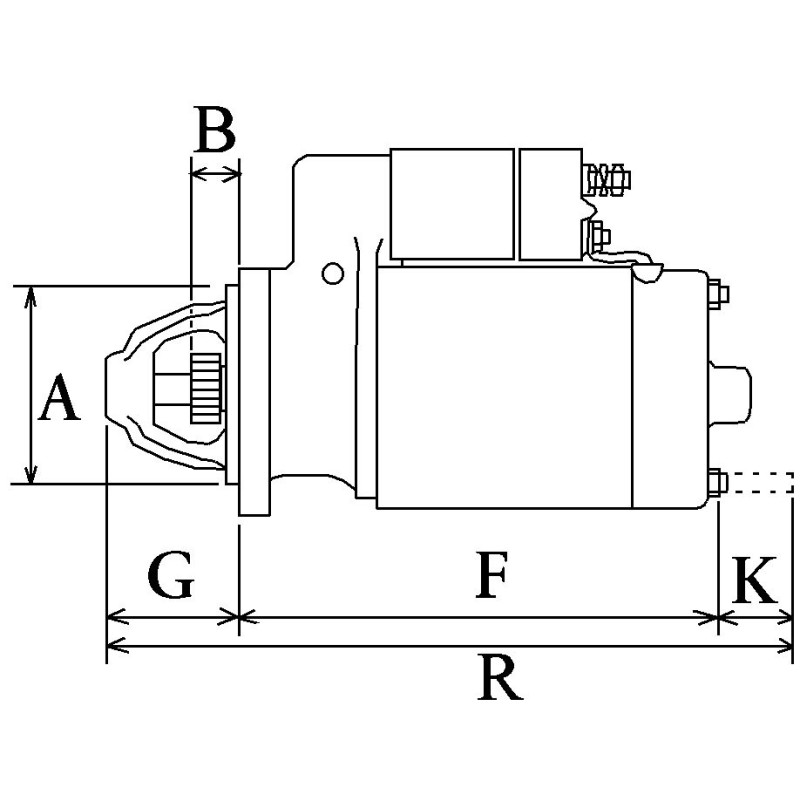

A = Mount flange 82.50

B = Drive distance 43.50,

F = Distance / Back 192.50

G = Distance / Front 78.00

H = Nbr of teeth 10

B+ M8

Gear type Dd

O = Distance mm 101.50

Rotation Cr

Nbr of mounting holes 2 (0)

Clutch Tipo Dry

Drive Tipo Steel

R = Total length mm 272.50

generic brand

replacing

= BOSCH 0001109363 / 0001314047 / 0986018080 / 0001109008 / 0986018081

= DELCO REMY DRS8080

= HATZ 50353420 / 50495900

= HELLA 8EA738258051

= LUCAS LRS01434

                                           NO CORE EXCHANGE NEEDED

                                                             TWO YEARS WARRANTY
