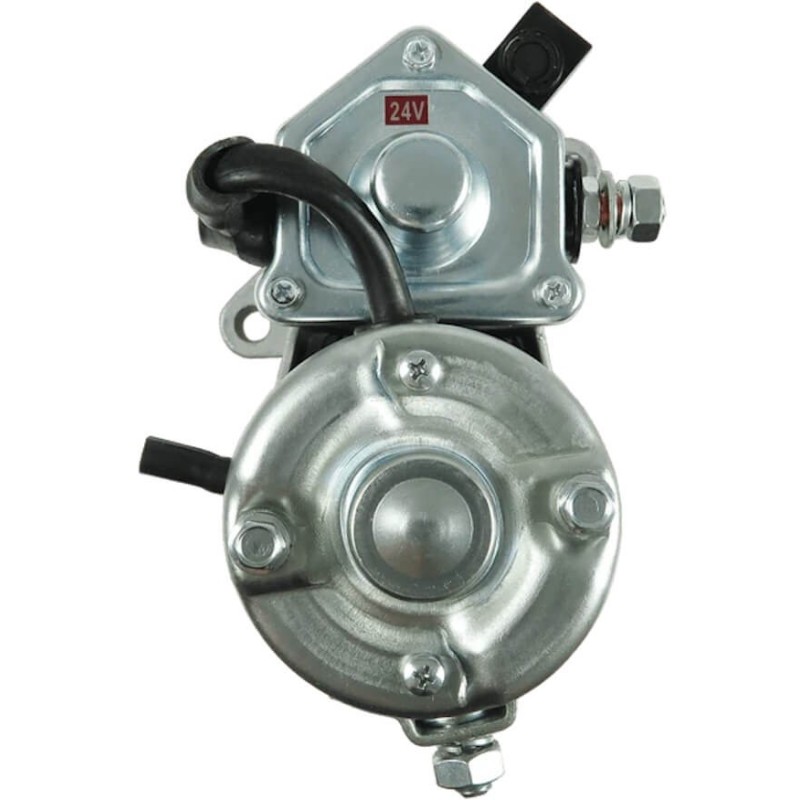

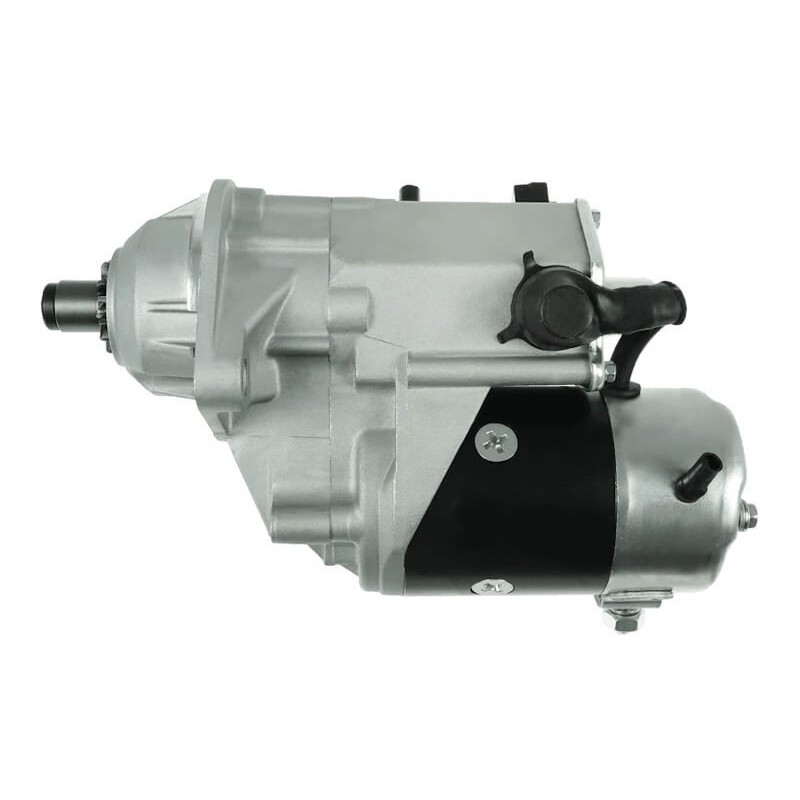

Starter replacing 228000-7900 / 228000-7901 / 228000-7902 / 3934119 / 3957593
017900 | Andre Niermann |
|---|---|
10438308 | Alanko |
10438771 | Alanko |
105536 | Farcom |
114282 | Cargo |
18548 | Lester |
18548N | WAI |
1909046 | PIC |
20130142 | AES |
2280000630 | Denso |
2280000631 | Denso |
More info
Specs Electricals | ||
|---|---|---|
| Voltage | 24 | |
| Kw | 4.5 | |
Specs Physique | ||
|---|---|---|
| H | Nbr of teeth | 10 |
| P | Rotation | Cr |
| N | Gear type | Gr |
| A | Mount flange | 88.50 |
| I | B+ | M10 |
| No./mount. holes | 2 (0) | |
| B | Drive distance | 48.00 |
| E | Mounting holes | 11.00 |
| E | Mounting holes 2 | 11.00 |
| F | Distance / Back | 161.00 |
| G | Distance / Front | 75.00 |
| O | Distance mm | 127.00 |
| R | Total length mm | 298.00 |
Replacing | |
|---|---|
| 228000-7900 | DENSO |
| 228000-7901 | DENSO |
| 228000-7902 | DENSO |
| 3934119 | CUMMINS |
| 3957593 | CUMMINS |
generic brand
fits:
| Brand | Model | Tipo | Year |
| CASE | CX130 | [4TA-390] | 01.2001-12.2007 |
| CASE | CX160 | [4TA-390] | 01.2002-12.2007 |
| CUMMINS | Engine 5.9 | [QSB] | 01/01/04 |
| DRESSER | 510C 6B | 01.1990-12.2003 | |
| DRESSER | 515C 6B | 01.1990-12.2002 | |
| DRESSER | 520C 6B | 01.1990-12.2002 | |
| HITACHI | ZW140 4.5 | [QSB] | 01/01/08 |
| HYUNDAI | HL 740-7 5.9 | [QSB] | 01.2004-12.2007 |
| HYUNDAI | HL740-7 5.9 | [QSB] | 01.2004-12.2007 |
| JCB | 414S 6.7 | [QSB] | 01.1995-12.2013 |
| JCB | 434S 6.7 | [QSB] | 01.2007-12.2013 |
| JCB | 436E 6.7 | [QSB] | 01.2007-12.2013 |
| KOMATSU | FD40ZT-7 | [6D102E] | 01.1998-12.2005 |
| KOMATSU | WA120 4B | 01.1997-12.2007 | |
| KOMATSU | WA120 6B | 01.1997-12.2007 | |
| KOMATSU | WA180 4B | 01.1997-12.2007 | |
| KOMATSU | WA180 6B | 01.1997-12.2007 | |
| KOMATSU | WA180-3 | [S6D102E-1] | 01.1997-12.2007 |
| KOMATSU | WA180-3PTC | [S6D102E-1] | 01.1997-12.2007 |
| KOMATSU | WA200-5 | [SAA6D102E-1] | 01.2006-12.2007 |
| KOMATSU | WA200PT-5 | [SAA6D102E-1] | 01.2006-12.2007 |
| KOMATSU | WA250 4B | 01.1997-12.2007 | |
| KOMATSU | WA250 6B | 01.1997-12.2007 | |
| KOMATSU | WA253 4B | 01.1997-12.2007 | |
| KOMATSU | WA253 6B | 01.1997-12.2007 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
