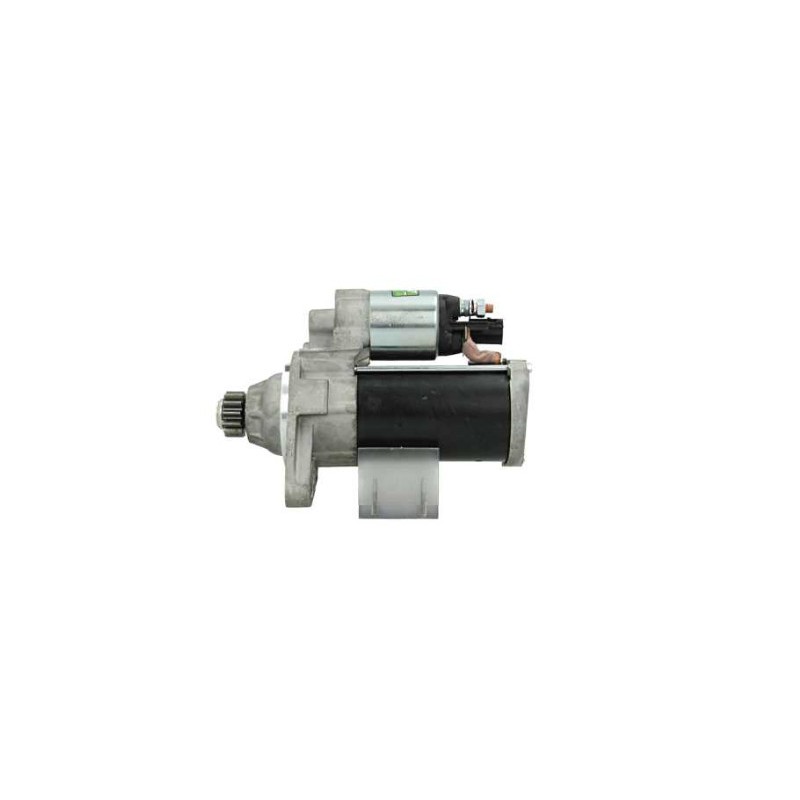

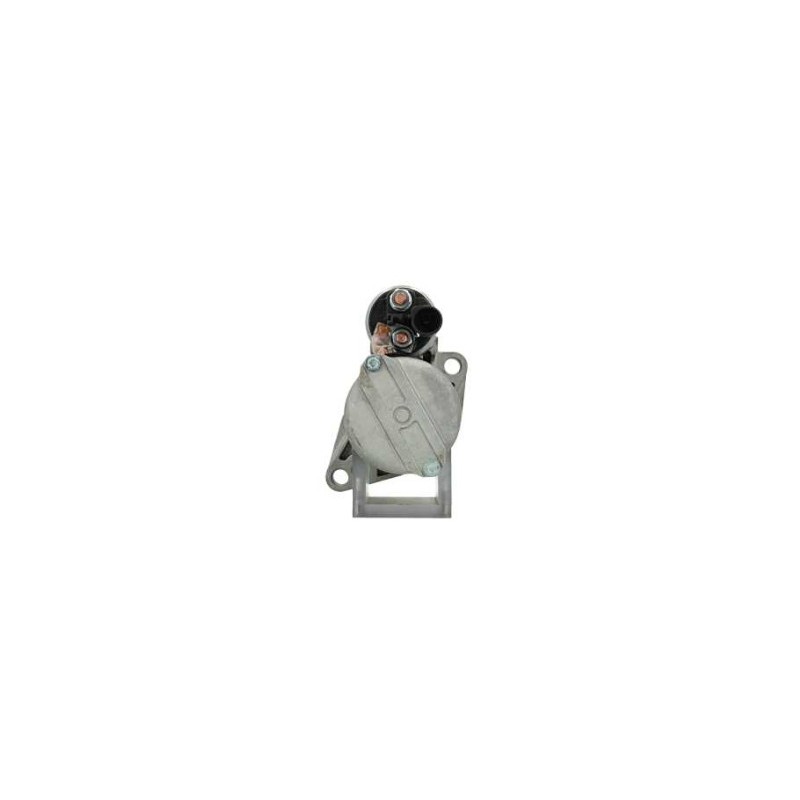

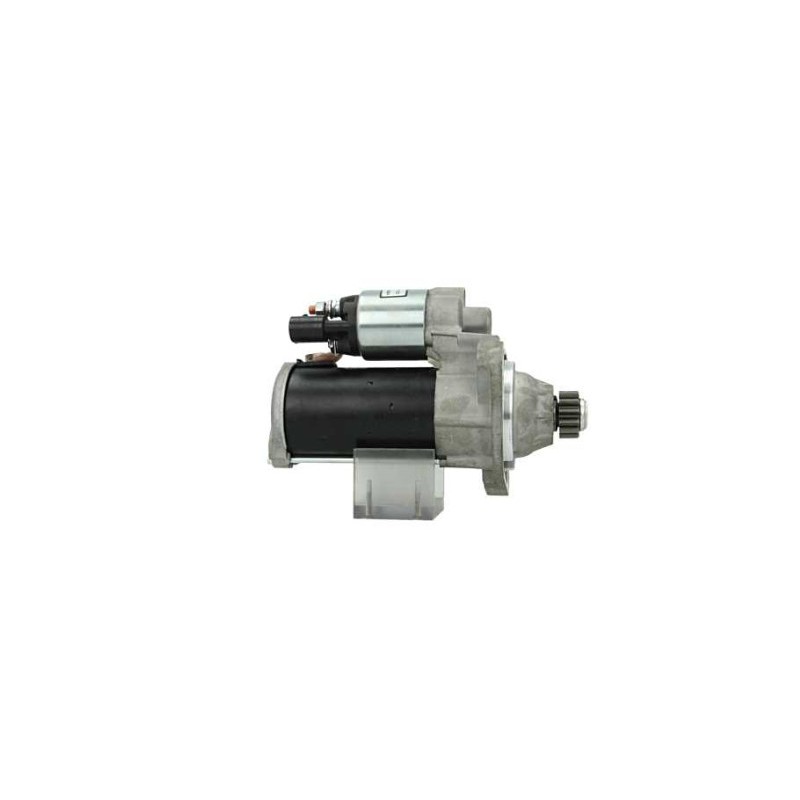

Starter BOSCH 0001179502 / 0001179503 / 0001179514 / 0001179515 / VOLKSWAGEN 02Z911024Q / 02Z911024QX
0986026130 / CST10477GS / DRS0829 / LRS02661
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.5 | |
Physical Information | ||
|---|---|---|

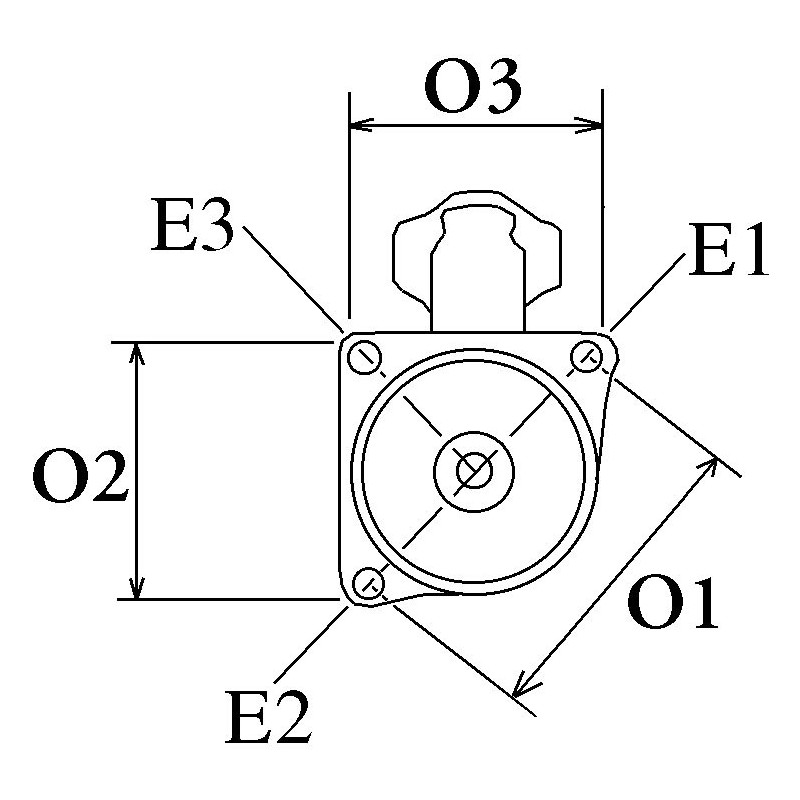

| A | Mount flange | 79.00 |
| E | Mounting holes | 12.50 |
| E | Mounting holes 2 | 12.50 |
| E | Mounting holes 3 | 12.50 |
| B | Drive distance | 52.00 |
| F | Distance / Back | 170.00 |
| G | Distance / Front | 57.00 |
| H | Nbr of teeth | 13 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 17.30 |
| O | Distance 2 | 127.00 |
| O | Distance 3 | 111.25 |
| P | Rotation | COUNTER CLOCKWISE |
| R | Total length mm | 227.00 |
Replacing | |
|---|---|
| 0001179502 | BOSCH |
| 0001179503 | BOSCH |
| 0001179514 | BOSCH |
| 0001179515 | BOSCH |
| 02Z911024Q | VOLKSWAGEN |
brand BOSCH
Mounted on :
VOLKSWAGEN
AUDI
SEAT
SKODA
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
