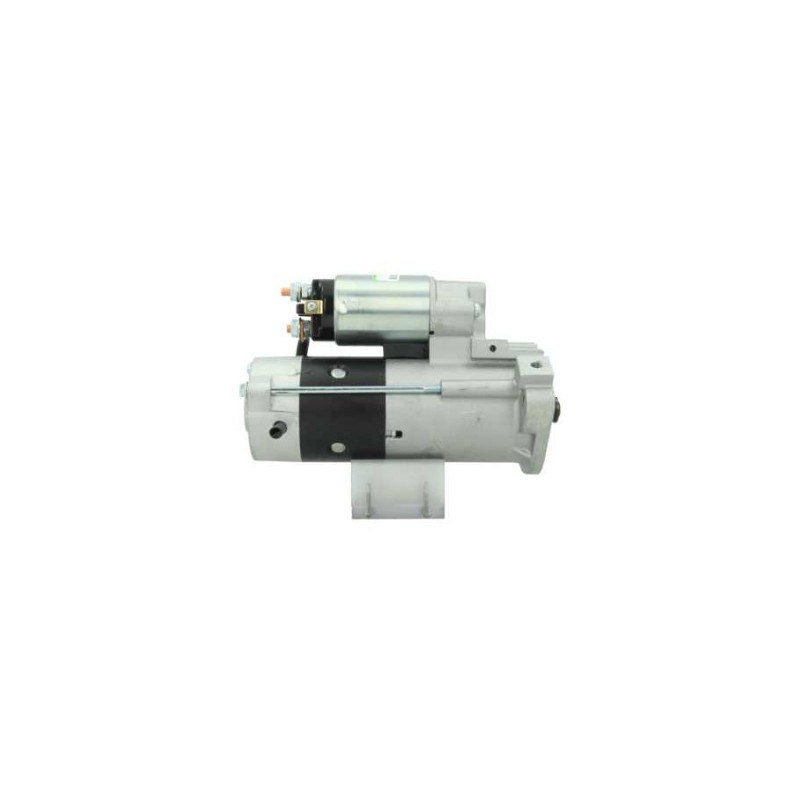

Starter replacing MITSUBISHI M008T75971 / M8T75971 / M8T76171 / ME193061 / ME193880
= DRS0689 / LRS02521
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 2.2 | |

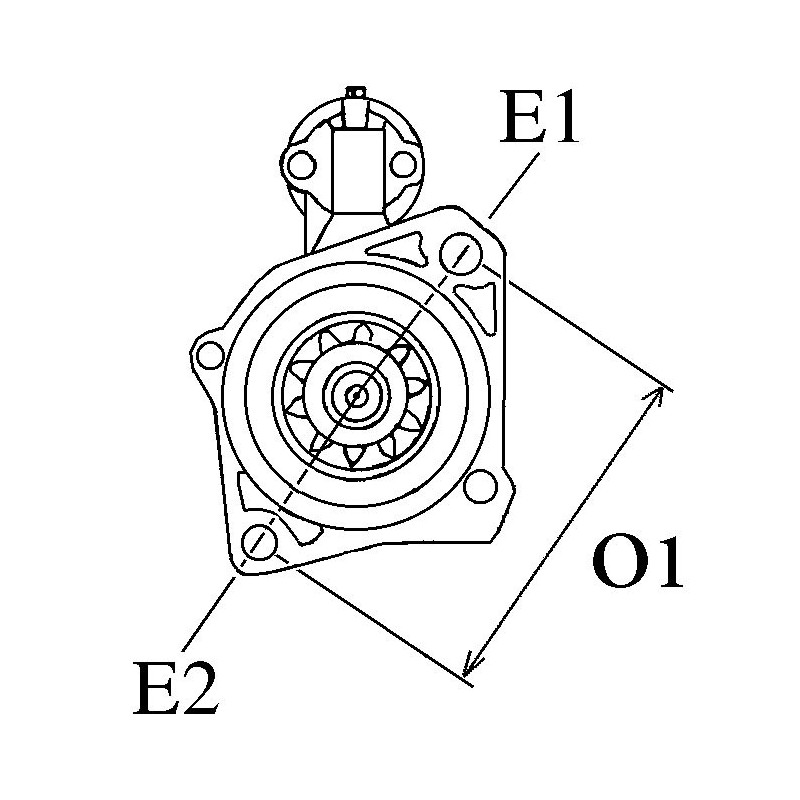

Physical Information | ||
|---|---|---|
| A | Mount flange | 77.00 |
| E | Mounting holes | M10 |
| E | Mounting holes 2 | M10 |
| B | Drive distance | 10.00 |
| F | Distance / Back | 222.00 |
| G | Distance / Front | 17.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 114.50 |
| P | Rotation | CW |
| R | Total length mm | 241.00 |
Replacing | |
|---|---|
| M008T75971 | MITSUBISHI |
| m8t75971 | MITSUBISHI |
| m8t76171 | MITSUBISHI |
| ME193061 | MITSUBISHI |
| me193880 | MITSUBISHI |
Mounted on :
MITSUBISHI Trucks
| Canter | 3C11 | 3.0 | Diesel | 2006 08 | - | 4M42-3AT1 | 81 | 110 | Pick-up | 2977 | 4 | FE7, FE8 | |
| Canter | 3C13 | 3.0 | Diesel | 2001 10 | - | 4M42-0AT | 92 | 125 | Pick-up | 2977 | 4 | FE7, FE8 | |
| Canter | 3C15 | 3.0 | Diesel | 2006 06 | 2010 11 | 4M42-3AT4 | 107 | 146 | Pick-up | 2977 | 4 | FE7, FE8 | |
| Canter | 3C11 | 3.0 | Diesel | 2006 08 | - | 4M42-0AT | 81 | 110 | Pick-up | 2977 | 4 | FE7, FE8 |
