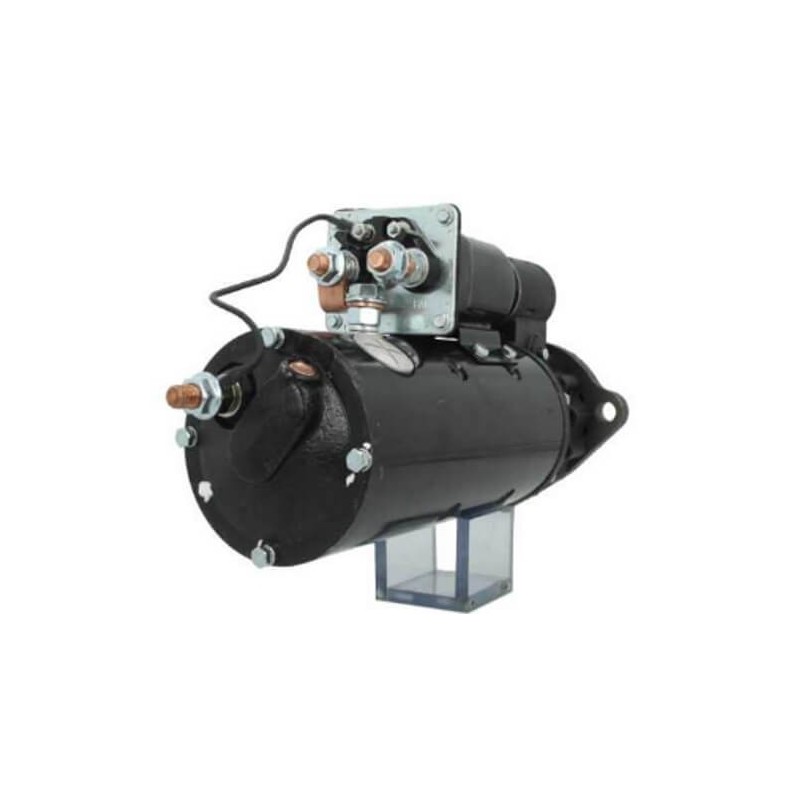

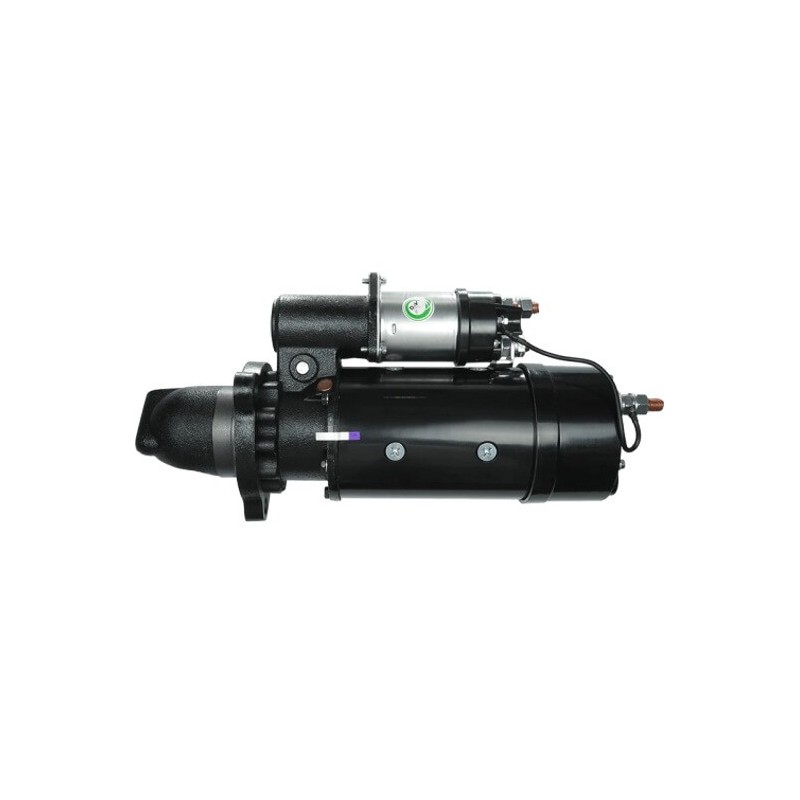

Starter replacing 3604233RX / 0R2186 / 10461031 / M105R3503SE

ws1006

New product

1 Item

for Caterpillar / Cummins / IH / Fiat Allis / Volvo Truck

replaces Delco remy

1113811
1113817
1113827
1113840
1113853
1113901
1113904
1113910
1113919
1113923
1113925
1113928
1113930
1113934
1113942
1113943
1113949
1113950
1113951

319,90 € Inc VAT

More info

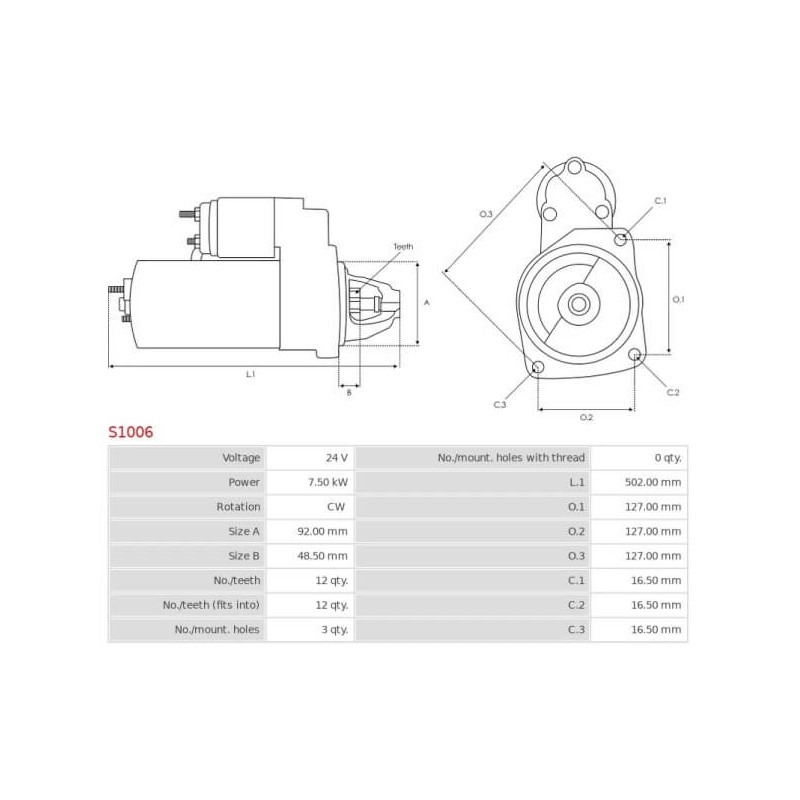

Voltage [ V ]24
Power [ kW ]7.50
RotationCW
Size A [ mm ]92.00
Size B [ mm ]48.50
No./teeth [ qty. ]12
No./teeth (fits into) [ qty. ]12
No./mount. holes [ qty. ]3
No./mount. holes with thread [ qty. ]0
L.1 [ mm ]502.00
O.1 [ mm ]127.00
O.2 [ mm ]127.00
O.3 [ mm ]127.00
C.1 [ mm ]16.50
C.2 [ mm ]16.50
C.3 [ mm ]16.50

generic brand

replacing

0001420001BOSCH3011895CUMMINS
0001420003BOSCH301581RIKUHNER
0001420004BOSCH301581RIDKUHNER
0001420005BOSCH33515EAI
0001420009BOSCH3604233RXCUMMINS
0001420013BOSCH3604484RXCUMMINS
0R2186CATERPILLAR3604784RXCUMMINS
0R4256CATERPILLAR3675120RXCUMMINS
0R4257CATERPILLAR3902661CUMMINS
0R5207CATERPILLAR3907821CUMMINS
0R5270CATERPILLAR3910646CUMMINS
10461025DELCO3938502CUMMINS
10461031DELCO3948NWAI / TRANSPO
10461107DELCO3P0006CATERPILLAR
10461136DELCO3P0007CATERPILLAR
10461345DELCO3P0110CATERPILLAR
10461357DELCO3P3006CATERPILLAR
10461358DELCO3P3007CATERPILLAR
10461533DELCO3R7356CATERPILLAR
10478864DELCO3T2579CATERPILLAR
10478939DELCO3T2647CATERPILLAR
10478942DELCO3T2652CATERPILLAR
10478995DELCO3T2660CATERPILLAR
10479115DELCO3T2772CATERPILLAR
10479118DELCO3T4581CATERPILLAR
10479120DELCO3T4582CATERPILLAR
10479136DELCO3T4584CATERPILLAR
10479178DELCO3T4586CATERPILLAR
10479225DELCO3T6305CATERPILLAR
10479245DELCO3Y8852CATERPILLAR
10479264DELCO45-1267ELSTOCK
106-8552CATERPILLAR4816170FIAT
10797KUHNER4N3181CATERPILLAR
10R0399CATERPILLAR4N3182CATERPILLAR
110302CARGO4N3347CATERPILLAR
1109298DELCO4N3348CATERPILLAR
1109831DELCO4N3350CATERPILLAR
110999CARGO4N7901CATERPILLAR
1113811DELCO50-152-1WAI / TRANSPO
1113817DELCO5A6494CATERPILLAR
1113827DELCO5A6495CATERPILLAR
1113840DELCO5A6522CATERPILLAR
1113853DELCO5R3155CATERPILLAR
1113901DELCO5R3857CATERPILLAR
1113904DELCO6060601SANDO
1113910DELCO60823KUHNER
1113919DELCO60823PKUHNER
1113923DELCO60823WKUHNER
1113925DELCO60827KUHNER
1113928DELCO60827MKUHNER
1113930DELCO60827PKUHNER
1113934DELCO60863KUHNER
1113942DELCO60863DKUHNER
1113943DELCO6360NWAI / TRANSPO
1113949DELCO6363NWAI / TRANSPO
1113950DELCO6823NWAI / TRANSPO
1113951DELCO6N1889CATERPILLAR
1113959DELCO6V5207CATERPILLAR
1113960DELCO6V5537CATERPILLAR
1113962DELCO7T0798CATERPILLAR
1113967DELCO7T0799CATERPILLAR
1113969DELCO7T1082CATERPILLAR
1113982DELCO7T1799CATERPILLAR
1113990DELCO8824CEVAM
1113991DELCO8C3597CATERPILLAR
1113992DELCO8C3647CATERPILLAR
1113993DELCO8C3650CATERPILLAR
1113998DELCO8C3651CATERPILLAR
1114706DELCO8EA730303-001HELLA
1114711DELCO8EA732855-001HELLA
1114712DELCO8N2145CATERPILLAR
1114729DELCO9G4337CATERPILLAR
1114735DELCO9G4339CATERPILLAR
1114740DELCO9G5584CATERPILLAR
1114742DELCO9M1662CATERPILLAR
1114759DELCOA187568CASE
1114767DELCOALT136080SIOM
1114777DELCOALT4850SIOM
1114793DELCOCGB-1083AINDE
1114805DELCOCGB-1139AINDE
1114843DELCOCGB-1252AINDE
1114845DELCOCGB-13479AINDE
1114856DELCOCGB-1502AINDE
1114859DELCOCGB-1503AINDE
1114860DELCOCST60601CASCO
1114862DELCOCST60601ASCASCO
1114872DELCOCST60601ESCASCO
1114905DELCOCST60601GSCASCO
1114910DELCOCST60601OSCASCO
1114914DELCOCST60601RSCASCO
1114917DELCODRZ5115DELCO
1114945DELCOEAA-121363EAA
1114949DELCOEAA-121500EAA
1114953DELCOEAA-141394EAA
1114968DELCOF048972JOHN DEERE
1114980DELCOF6HT11001EAFORD
1114989DELCOF6HZ11002EAFORD
114769A1CASEL118276CASE
128000-7510DENSOLRS01854LUCAS
128000-7520DENSOLRS1854LUCAS
1990204DELCOM0017260MEPRESTOLITE
1990283DELCOM0017280MEPRESTOLITE
1990297DELCOM0017422MEPRESTOLITE
1990324DELCOM007T03774MITSUBISHI
1990343DELCOM007T03777MITSUBISHI
1990357DELCOM105R3503SEPRESTOLITE
1990359DELCOM105R3505SEPRESTOLITE
1990360DELCOM125R3001SEPPRESTOLITE
1990364DELCOM125R3003SEPPRESTOLITE
1990366DELCOM128R3601SEPRESTOLITE
1990373DELCOM128R3837SEPRESTOLITE
1990402DELCOM128R3838SEPRESTOLITE
1990413DELCOM7T03774MITSUBISHI
1990414DELCOM7T03777MITSUBISHI
1990432DELCOMAV626010SIOM
1990433DELCOMAV626040SIOM
1990453DELCOMAV626090SIOM
1990455DELCOMFY6201IPRESTOLITE
1990457DELCOMFY6201KPRESTOLITE
1990474DELCOMFY6401KPRESTOLITE
1990497DELCOMFY6401LPRESTOLITE
1990809DELCOMFY6601IPRESTOLITE
1993704DELCOMFY6601KPRESTOLITE
1993796DELCOMS1-330APRESTOLITE
1993797DELCOMS1-401APRESTOLITE
1993804DELCOMS1-410APRESTOLITE
1993808DELCOMS1-419APRESTOLITE
1993809DELCOMS1-453PRESTOLITE
1993814DELCOMS7-300APRESTOLITE
1993815DELCOMS7-403PRESTOLITE
1993833DELCOMS7-404PRESTOLITE
1993929DELCOMS7-406PRESTOLITE
1993940DELCOMS7-407PRESTOLITE
1993944DELCOMS7-408PRESTOLITE
1993945DELCORE28782JOHN DEERE
1993982DELCORE63094JOHN DEERE
20409106BNREALRE69591JOHN DEERE
20409106OEREALREM1990453WOODAUTO
2071560CATERPILLARS1006AS-PL
228000-0070DENSOSE501454JOHN DEERE
254484KUHNERSTR20012WOODAUTO
254484DKUHNERSTRF0923EFFE
254484PKUHNERSTRF7823EFFE
255569DKUHNERSTRJ6463EFFE
255569PKUHNERSTRL2623EFFE
25900CATERPILLARSTRS0293EFFE
2P2501CATERPILLARSTRS2083EFFE
2S0900CATERPILLARUD02185SAS-PL
2S900CATERPILLARUD12392SAS-PL
US823HC PARTS
US863HC PARTS
F042003074BOSCH
3Y3066CATERPILLAR
441728LOGISTIK
S24DR0089A2SIDAT
339025LOGISTIK

for

BrandModelTypYear
CATERPILLAR320801.1975-01.1984
CATERPILLAR169401.1974-01.1979
CATERPILLAR916 Wheel Loader01/02/93
CATERPILLAR920 Wheel Loader01/02/93
CATERPILLAR922 B01/01/93
CATERPILLAR330601.1975-12.1984
FIAT-ALLISFA 150 8.1 Diesel[8365.25.542]12.1986-03.1999
FIAT-ALLISFD 14E 8.1 Diesel[8365.25.541]12.1988-12.1992
FIAT-ALLISFR 160 8.1 Diesel[8365.25..]01/07/90
