Starter replacing BOSCH 0001417002 for MAN / VOLVO

Information:

Voltage 24

KW 6.6

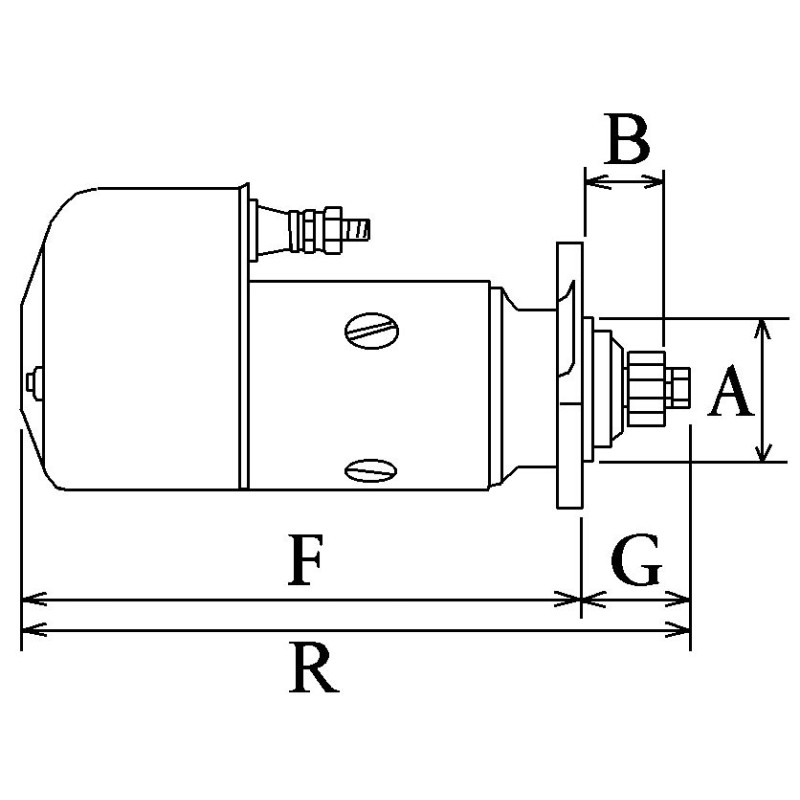

A = Mount flange 88.85

B = Drive distance 48.00

F = Distance / Back 343.00

G = Distance / Front 62.00

H = Nbr of teeth 11

B+ M10

Gear type Dd

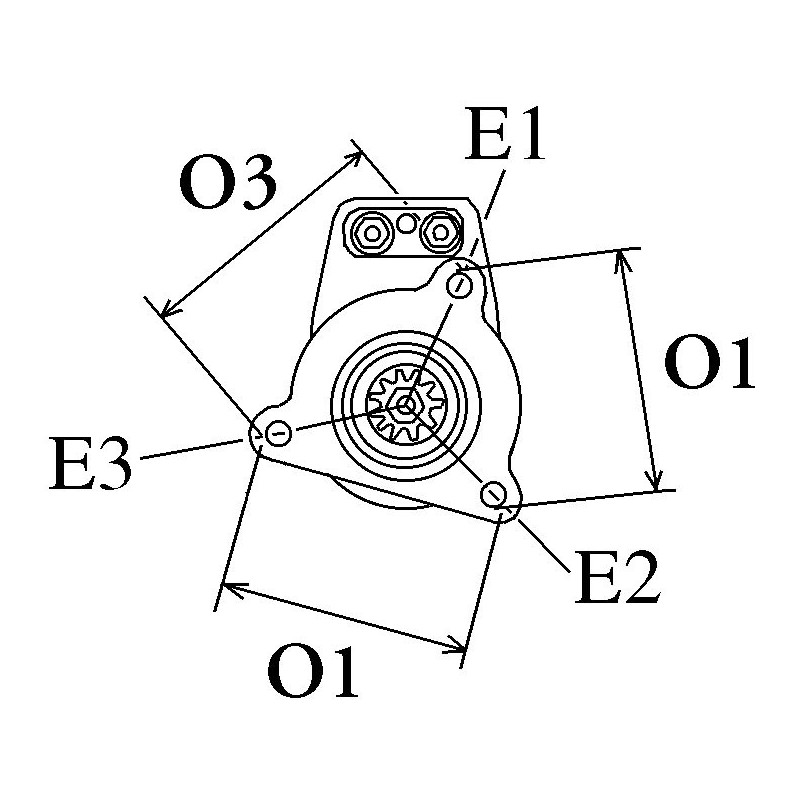

O = Distance mm 126.50

O = Distance 2 90.00

O = Distance 3 90.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 404.00

= AVF im602

= BOSCH 0001417002

= DELCO REMY 19024052

= Elmot R22.06 / 0060000

= VOLVO 4778060

= DEM8188 / KTR1562404226 / STR2392

                   NO CORE EXCHANGE NEEDED

                                                TWO YEARS WARRANTY
