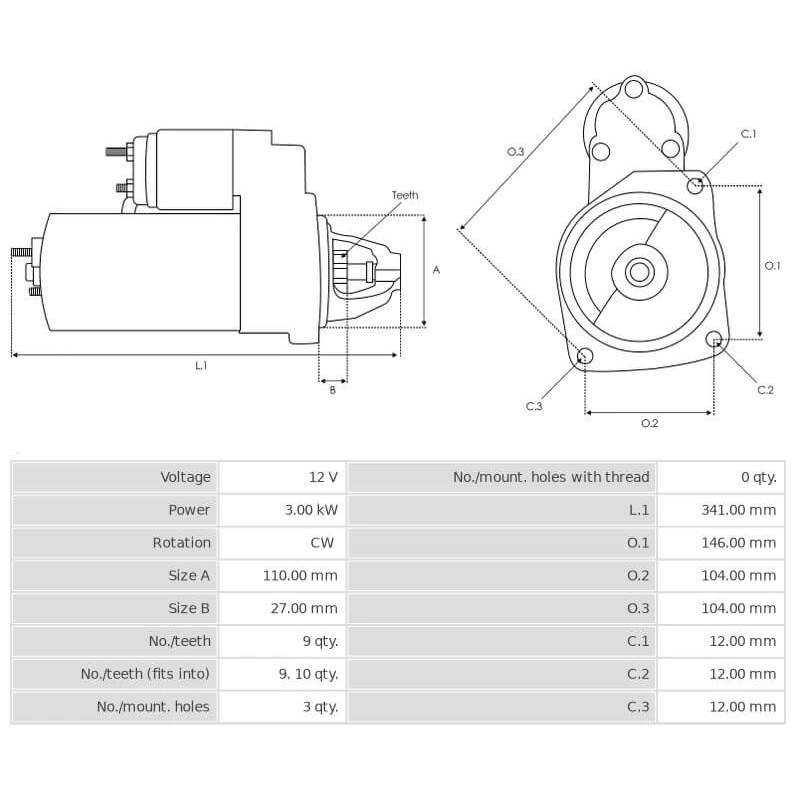

Starter replacing BOSCH 0001367082 / 0001367028 / 0001367023

Information   :

Voltage 12

KW 3.0

A = Mount flange 110.00

B = Drive distance 30.00

F = Distance / Back 255.00

G = Distance / Front 73.00

H = Nbr of teeth 9

B+ M10

Gear type Dd

O1 = Distance 146.00

O2 = Distance 2 103.00

O3 = Distance 3 103.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 340.50

generic brand

replacing

= BOSCH 0001367082 / 0001367028 / 0001367023 / 0001359102 0001359021 / 0986011220/- 0986011221

= CAV 2998200

= lmot R11W / R11.07

= ISKRA AZJ3582 / AZJ3535 / AZJ3517 / AZJ3116 / AZJ3110 / 11.130.410 11.130.403 / 11.130.322 / 11.130.199 / 11.130.140

= MAGNETI MARELLI MT68MB / MT68MA / MT68AD / MT68AC / MT68AB MT68AA / MT68A / MT62BA / M125M3-Z9(3/12) / M125-3/12 / 63224600

63216874  /63216831 / 63216827 / 63216826 / 63216825

63216800 / 63213815 / 30380301 / 063216831010

063216827010

= MAGNETON 9144744

= MAKO 063216831000 / 063216831010 / 063216831020

063296847000

= Efel 11370

= DELCO REMY 19024230 / 19024272

= LUCAS LRS00847

= FIAT 4169093 / 4172113 / 4699705 / 4702248 / 4703751

4737755 / 4755109 / 4807375 / 88205006

= IVECO 4703751 / 4807375 / 500333271 / 500338952

99449113

= VALEO 436073 / 458297

Used onnotamment on :

Tracteur Case :

Serie: AVJ AVJ70,

Serie: JX JX100U, JX1095N, JX1095V, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95,

Serie: VJ VJ70, VJ80

Tracteur FORD :
Serie: 35 4835, 5635, 7635,

Engins / Tracteur NEW HOLLAND :

- 35 Series : 4635, 4835, 5635, 6635, 7635

- TD Series : TD80, TD80 D, TD85, TD85 D, TD90, TD90 D, TD95, TD95 D

SERIE TL : TL100, TL65, TL70, TL80, TL90

Tracteur FIAT :
Serie: 46 65-46, 65-46DT,

Serie: 66 65-66, 65-66DT, 70-66, 70-66DT, 70-66F, 70-66LP, 80-66, 80-66DT, 80-66F,

Serie: 76 70-76F, 70-76LP, 70-76V, 80-76DT, 80-76F,

Serie: 88 65-88, 65-88DT, 70-88, 70-88DT, 80-88, 80-88DT,

Serie: 90 65-90, 65-90DT, 70-90, 70-90DT, 80-90, 80-90DT, 85-90, 85-90DT,

Serie: 93 65-93, 65-93DT, 72-93, 72-93DT, 82-93, 82-93DT, 88-93, 88-93DT,

Serie: 94 65-94, 65-94DT, 72-94, 72-94DT, 82-94, 82-94DT, 88-94, 88-94DT,

Serie: Classique 1000, 1000 Sup, 1000DT, 1000N, 1000S, 550, 580, 600, 640, 670, 680, 780, 880, 900

Serie: L L65, L75, L85, L95

                                   NO CORE EXCHANGE NEEDED

                                                       GARANTIE  1 AN
