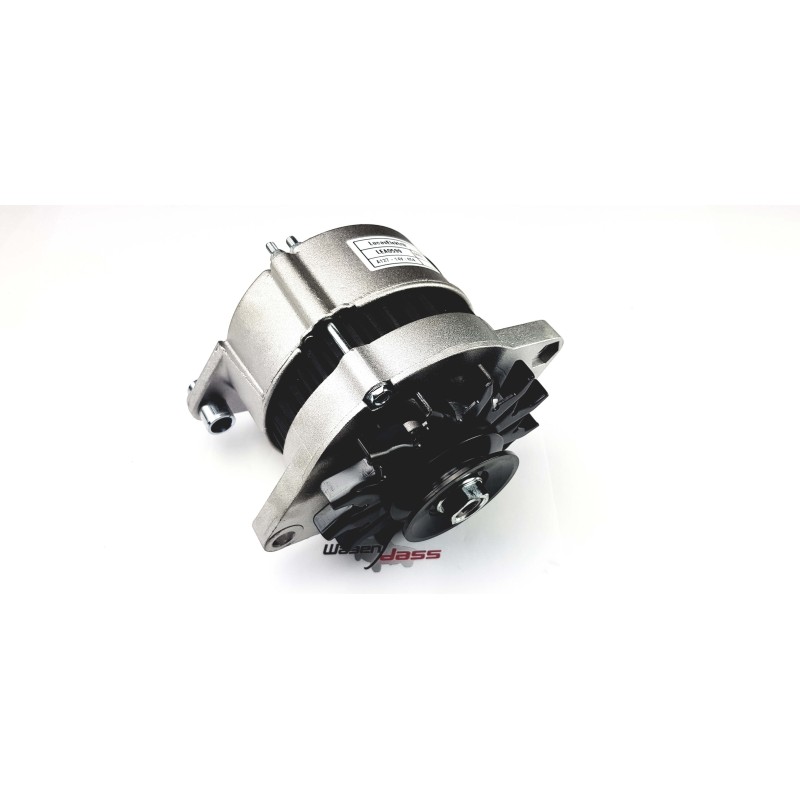

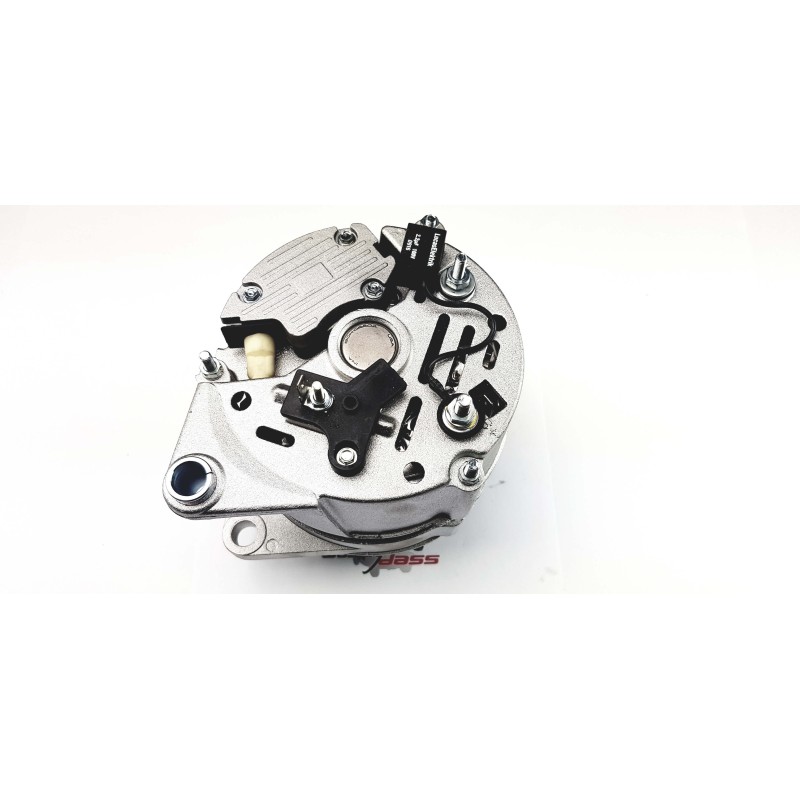

Alternator NEW for ALFA ROMEO, GOLDONI
= BOSCH 0120488194 / 0120488195 / 0986036230
= ISKRA 11.201.071 / 11.201.304 / 11.201.571 / 11.201.600 / aak1117 / aak4138 / aak4518
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Physical Information | ||
|---|---|---|
| D | Bracket hole | 12.20 |
| G | Belt. adj. bracket hole | 10.60 |
| B | Width/holder arm | 15.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 70.00 |
| H | Pulley dia. | 72.50 |
| A | Pulley dist. | 47.00 |
| i | Grooves/pulley | 1 |
| j | Radius | 85.00 |
| j | Radius 2 | 81.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| Q | Tipo prise W | M5-6.3 |
| R | Total length mm | 172.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 55 | |
| Plug type | W | |
Replacing | |
|---|---|
| 0120488194 | BOSCH |
| 0120488195 | BOSCH |
| 0120489019 | BOSCH |
| 0120489402 | BOSCH |
| 0120489457 | BOSCH |
| 0986036230 | BOSCH |
| 11.201.071 | ISKRA |
| 11.201.304 | ISKRA |
| 11.201.571 | ISKRA |
| 11.201.600 | ISKRA |
| 29439660 | SAME |
| 30680316 | MAGNETI MARELLI |
| 451013 | DUCELLIER |
| 46231757 | FIAT |
| 63305120 | MAGNETI MARELLI |
| 63320037 | MAGNETI MARELLI |
| 63321095 | MAGNETI MARELLI |
| 7565560 | FIAT |
| 943321095 | MAGNETI MARELLI |
| 943356316 | MAGNETI MARELLI |
| aak1117 | ISKRA |
| aak4138 | ISKRA |
| aak4518 | ISKRA |
| ca631ir | HC-PARTS |
