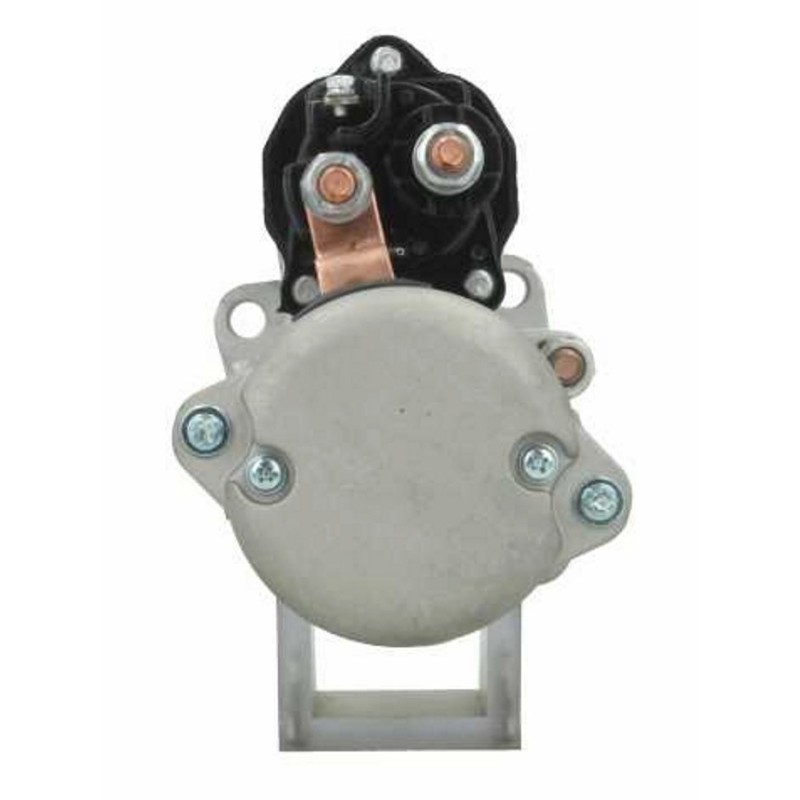

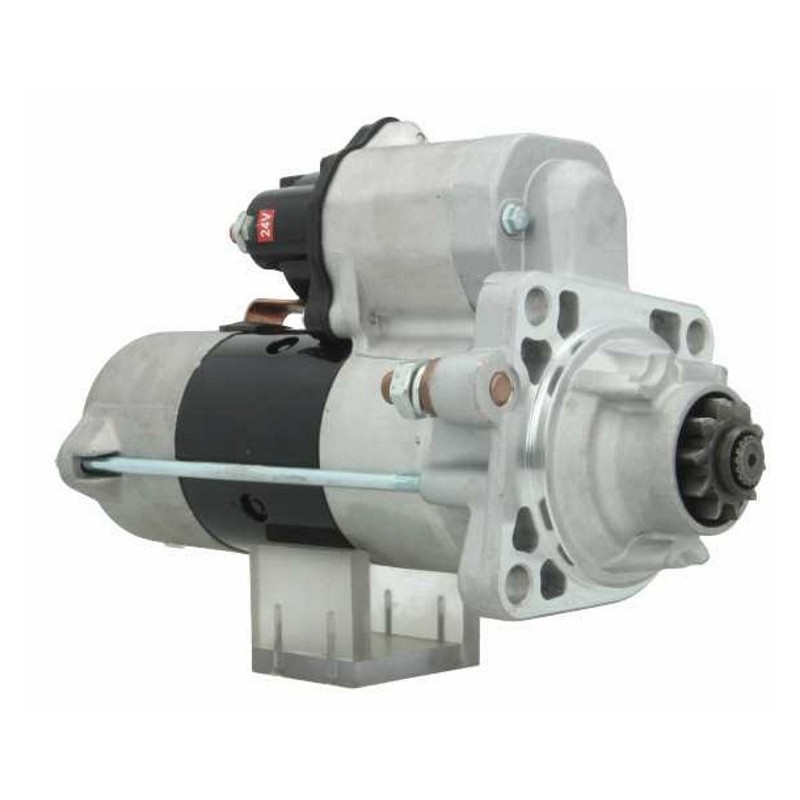

Starter replacing DENSO 228000-9151 / 228000-9150

Information:

Voltage 24

KW 7.5

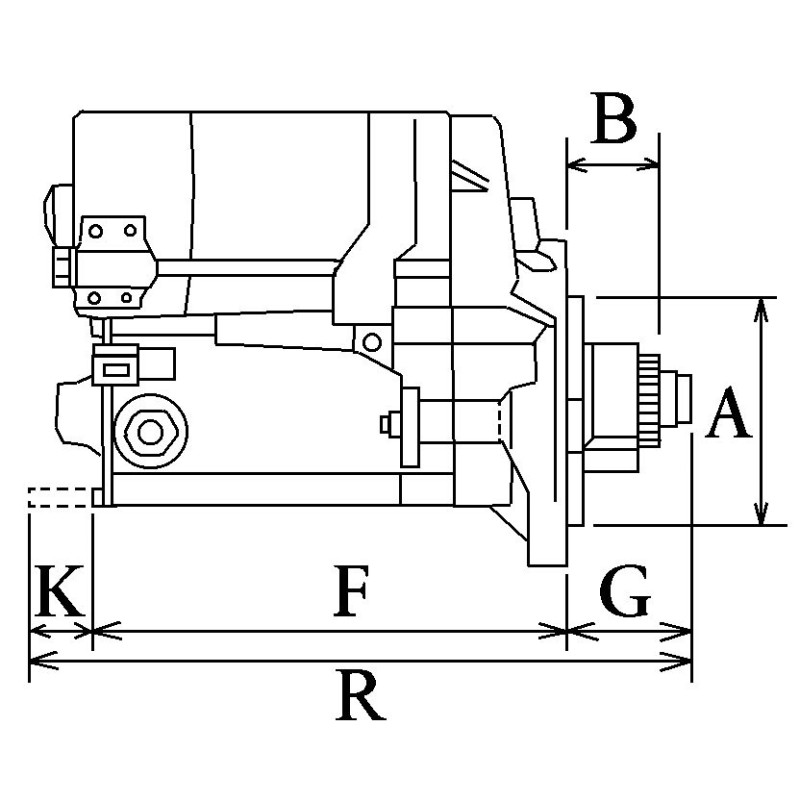

A =Mount flange 88.80

B =Drive distance 47.50

F =Distance / Back 160.50

G =Distance / Front 74.50

Nbr of teeth 11

B+ M12

Gear type Gr

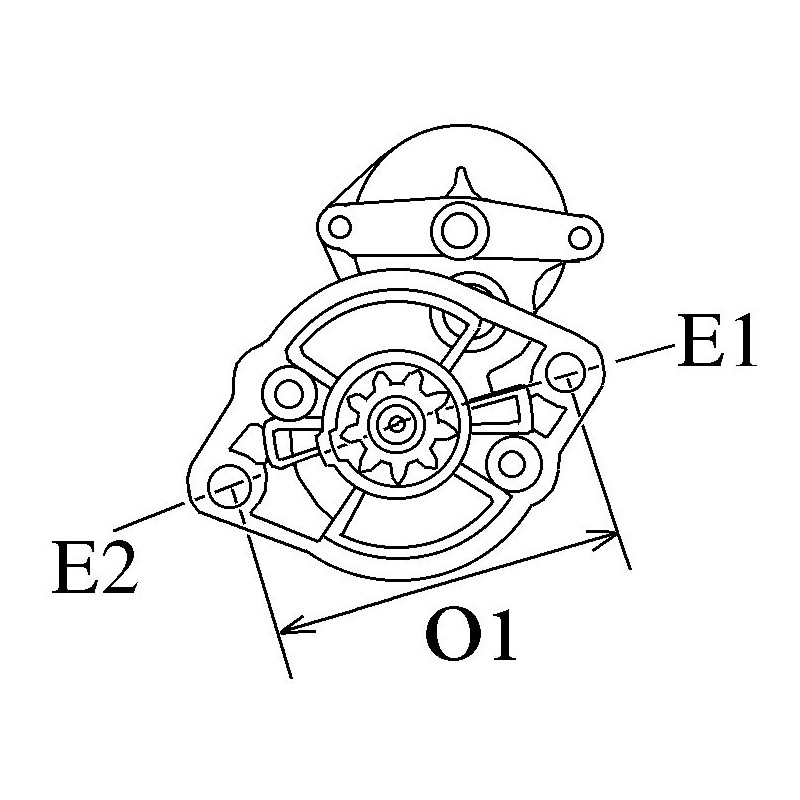

O1 =Distance 127.00

O2 =Distance 2 89.50

O3 =Distance 3 89.50

Rotation Cr

Nbr of mounting holes 3 (0)

Plug type 30h Plug

Total length mm 316.00

= DENSO 228000-9151 /, 228000-9150

= JOHN DEERE RE504245 / RE506103 / RE537519 / RE539695

SE502559 / SE502823

Application :

JOHN DEERE Ag & Industrial  670g Jd 9.0l 155hp Diesel
JOHN DEERE Ag & Industrial  672g Jd 9.0l 170hp Diesel
JOHN DEERE Ag & Industrial  770d
JOHN DEERE Ag & Industrial  770g Jd 9.0l 165hp Diesel
JOHN DEERE Ag & Industrial  772d
JOHN DEERE Ag & Industrial  772g Jd 9.0l 194hp Diesel
JOHN DEERE Ag & Industrial  870d
JOHN DEERE Ag & Industrial  870g Jd 9.0l 180hp Diesel
JOHN DEERE Ag & Industrial  872d
JOHN DEERE Ag & Industrial  872g Jd 9.0l 214hp Diesel

                        NO CORE EXCHANGE NEEDED

                                               TWO YEARS WARRANTY
