Solenoid for starter HITACHI S114-147 / S114-152 / S114-155

Information:

Voltage 12

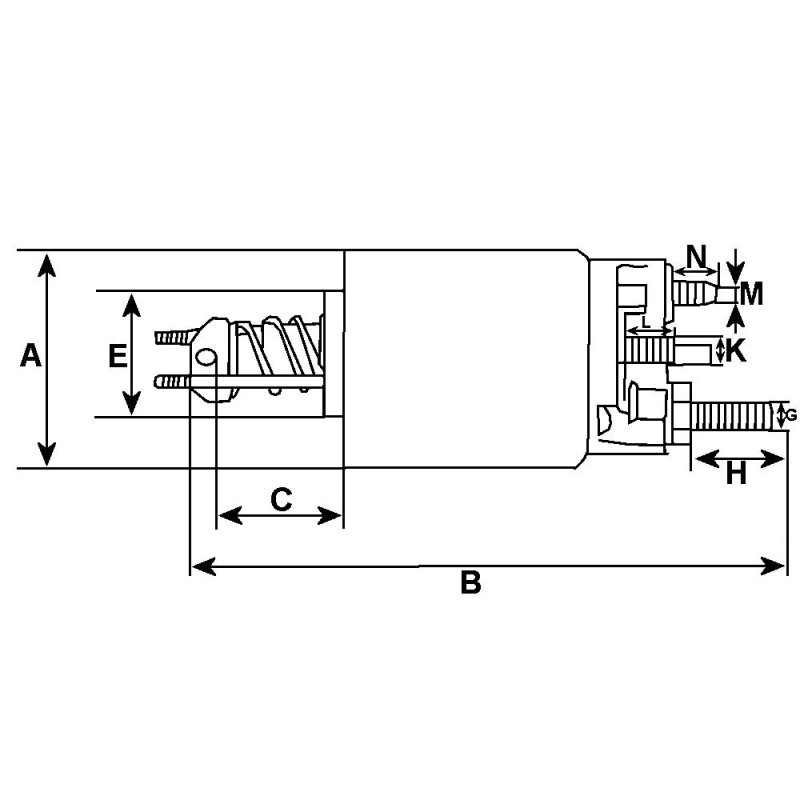

A = DE mm 52.20

B = Total length mm 112.35

M = Bolt Coil M8

D = OD/cover mm 48.45

E = DI capot mm 21.85,

G = B+ M8

H = Height/B+ 17.45

K = Kl. 50/mm 6.30

N = Bolt Coil l. 18.55

L = Height/kl. 50 15.55

No./terminals 3

fits starter HITACHI :

S114-152
S114-155
S114-160
S114-160A
S114-160B
S114-160D
S114-160E
S114-160F
S114-160G
S114-160H
S114-161
S114-161B
S114-161e
S114-161F
S114-162D
S114-163
S114-163B
S114-163E
S114-163F
S114-164
S114-164A
S114-208
S114-225
S114-256B
S114-273
S114-296a
S114-373
S13-47
S13-47A
S13-50
S13-60
S13-64
S13-69

for starter MITSUBISHI :
MWV10R
MWV11R
MWV3R
MWV4R
MWV8R
MWV9R

for starter NISSAN :
23300-18000
23300-18005
23300-18015
23300-18016
23300-47601
23300-48301
23300-B5002
23300-H0100
23300-H0101
23300-H3900
23300-H5000
23300-H5001
23300-H5002
23300-H5003
23300-H5004
23300-H6900
23300-H6901
23300-H6902
23300-H6903
23300-H6904
23300-H7301
2300-M0100
23300-M0101
23300-M0110
23300-M0111
23300-M0112
23300-M0113
23300-M1500
23300-M1501
23300-M1502
23300-M1503
23300-M1510
23300-M1511
23300-M4900
23300-V0702
23300-V0703
23300-V0705
23300-V0706
23300-W1002
23300-W1800
