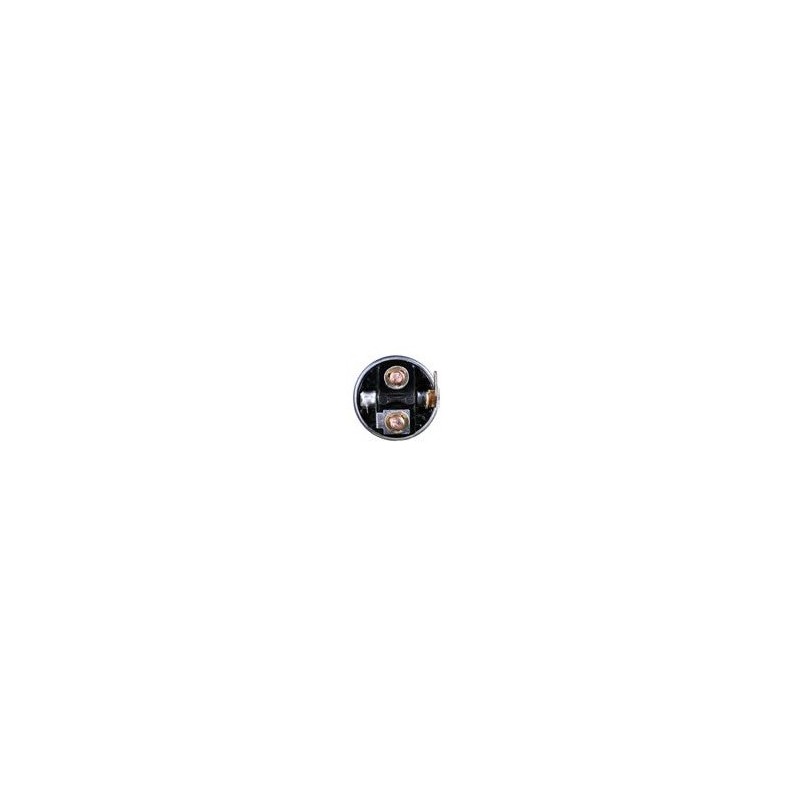

Solenoid for starter MITSUBISHI M0T80381 / M0T80581 / M0T80831

Information :

Voltage 12

A = DE mm 51.15

B = Total length mm 120.80

M = Bolt Coil M8

D = OD/cover mm 45.10

E = DI capot mm 24.85

G = B+ M8

H = Height/B+ 15.00

K = Kl. 50/mm 6.30

N = Bolt Coil l. 14.10

L = Height/kl. 50 20.95

No./terminals 3

also for starter  :

M0T81283 / M0T81284 / M0T82281 / M008T71471 / M008T71471ZE

M0T85981 / m0t87581 / M1T77081 / M1T77381 / M8T71471

FORD F32Z-11002-A, F32Z-11002-ARM; HYUNDAI 36100-02511

MANDO M56290; MAGNETI MARELLI 943253215010, 944280523190, 944280525240, 944280525260, 944280525350, 944280703020; MAZDA FP13-18-400, FP50-18-400, FS05-18-400, FS11-18-400, FS11-18-400A, FS11-18-400B, FS11-18-400R, JE27-18-400D

MITSUBISHI M000T80381, M000T80581, M000T81081, M000T81283, M000T81284, M000T82281, M000T85981, M001T77381, M002T44781, M003T44081, M003T44181; MITSUBISHI Motors MD301348, MD301350, MD301351, MD321445, MD356104, MD360368, MD362207

Original Reference Number RD362207C

VALEO 438120, TM000A04301, TM000A31001, TM000A32101
