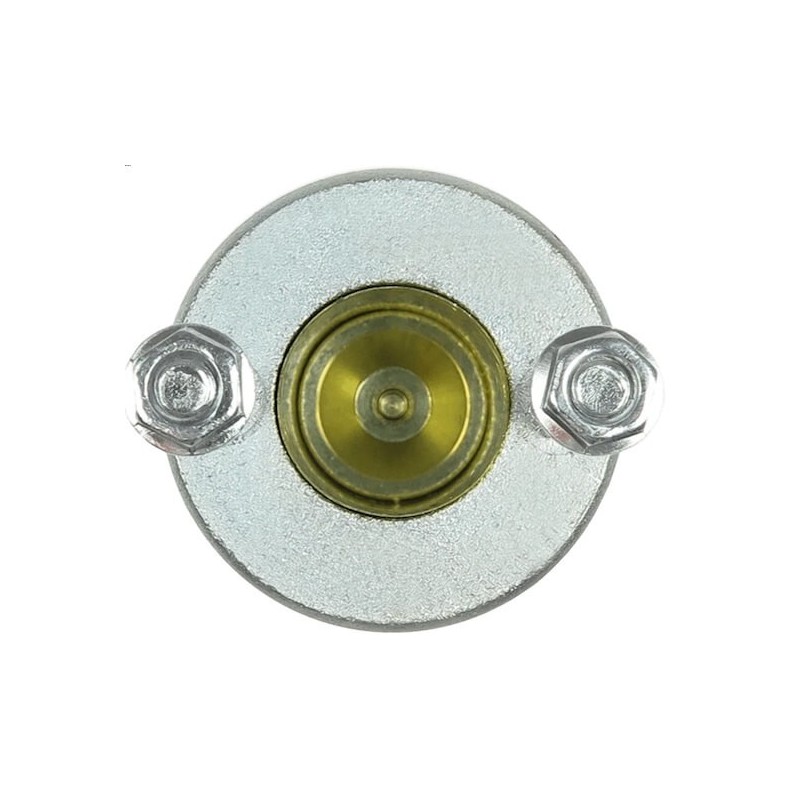

Solenoid for starter LUCAS / MAGNETI MARELLI
= LUCAS tpb119 / tpb118 / tpb116 / tpb111 / tpb104 / SSL0005 / 77228B / 77143 / 77141 / 77139 /77133 / 77132 / 77131 / 77121 / 76397
= MAGNETI MARELLI 85541325 / 85541322 / 85541320
Information:
Voltage 12
A = DE mm 53.85
B = Total length mm 181.00
M = Bolt Coil M8
D = OD/cover mm 60.00
E = DI capot mm 25.90
G = B+ M8
H = Height/B+ 13.00
K = Kl. 50/mm 6.30
N = Bolt Coil l. 13.00
L = Height/kl. 50 14.00
No./terminals 3
= LUCAS tpb119 / tpb118 / tpb116 / tpb111 / tpb104 / SSL0005 / 77143 / 77141 / 77139 /77133 / 77132 / 77131 / 77121
also for starter LUCAS
26213
26227
26291
26316
26329
26330
26352
27500
27502
27515
27518
27528
27539
27541
27564
27565
27568
27569
27570
27572
27583
27588
27590
27592
27595
27598
27599
27608
063227502010
063227510010
063227518010
063227528010
063227539010
063227541010
063227564010
063227565010
063227571010
63227500
63227502
63227510
63227518
63227528
63227539
63227541
CARGO 110565
for starter MAGNETI MARELLI M127 / 63227500 / 63227502 / 63227510 / 63227518 / 63227528
63227539 / 63227541 / 63227547 / 63227564 / 63227565 / 63227568
also for starter PERKINS 2873B072 / 2873B071
Acheteur Vérifié
A rare, period piece that Wagendass was able to provide, thank you. (Translated review)
Acheteur Vérifié
as ordered (Translated review)
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
Original and adaptable
No return of the old
Amex,CB,Visa,MasterCard in 3D Secure and PayPal
France and International
