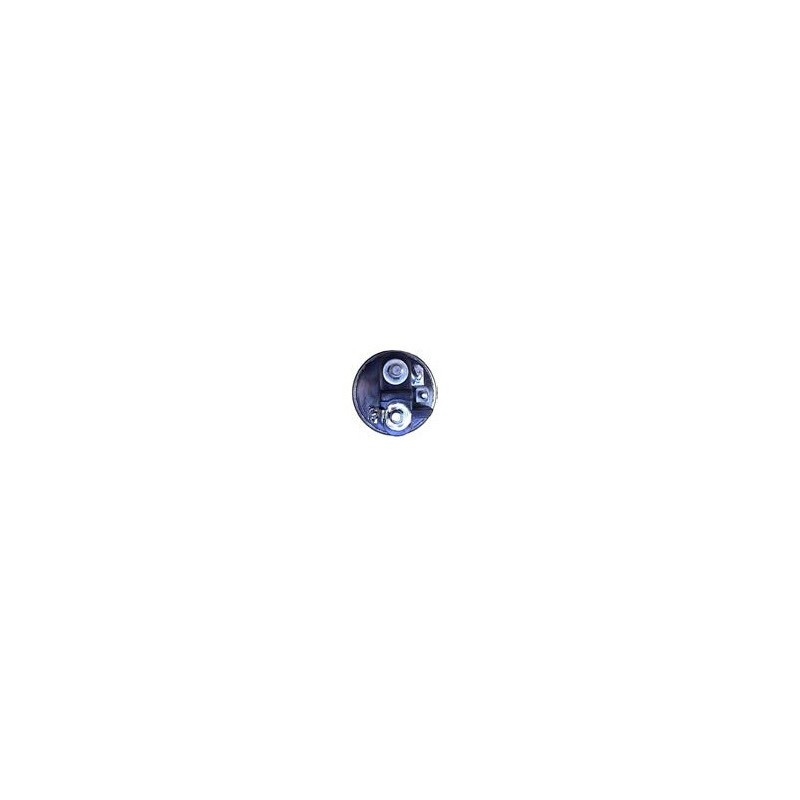

Solenoid for starter BOSCH 0001107019 / 0001108085 / 0001108086

Information:

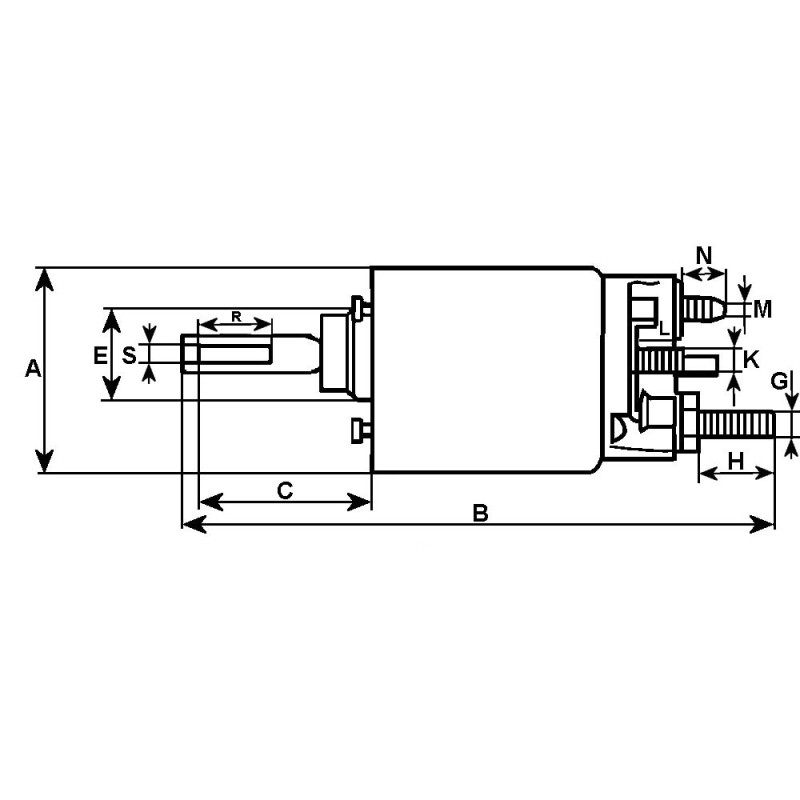

Voltage 12, DE 56.45, Total length mm 128.85, Bolt Coil M8

DE/capot 49.90, DI capot 27.20

Remarks Capuchon: HC-CARGO 231054., B+ M8, Height/B+ 29.45

Kl. 50/mm M5, Bolt Coil l. 18.65, Height/kl. 50 8.15

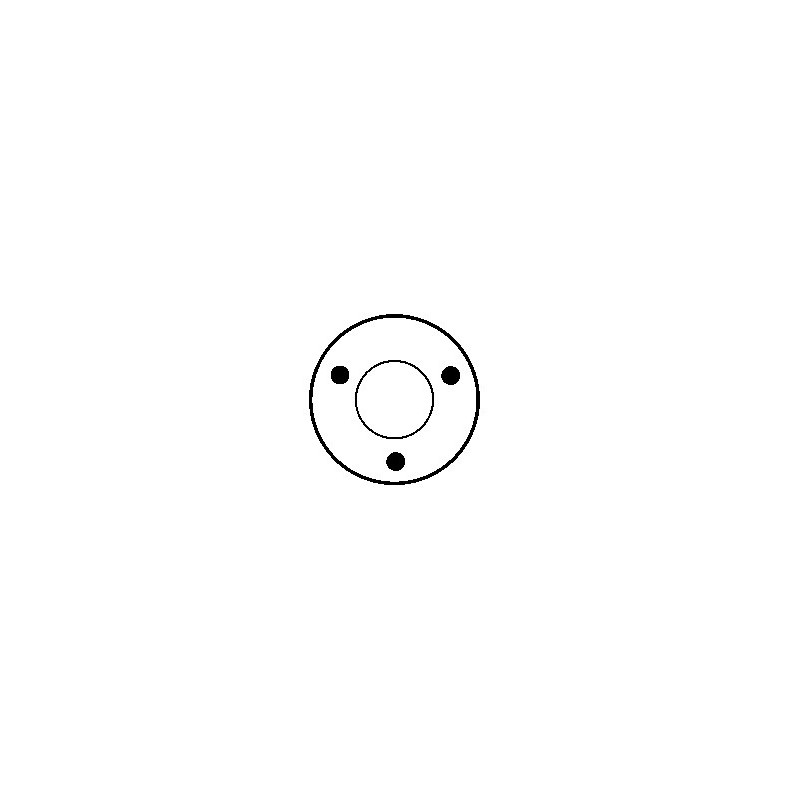

Dessin No20, No./terminals 3

= BOSCH: 39303236 / 0331303630 / 0331303236 / 0331303130

for starter BOSCH:

0001107019

0001108085

0001108086

0001108130

0001108138

B001110044

B001111164

B001111257

B001111258

B001111399
