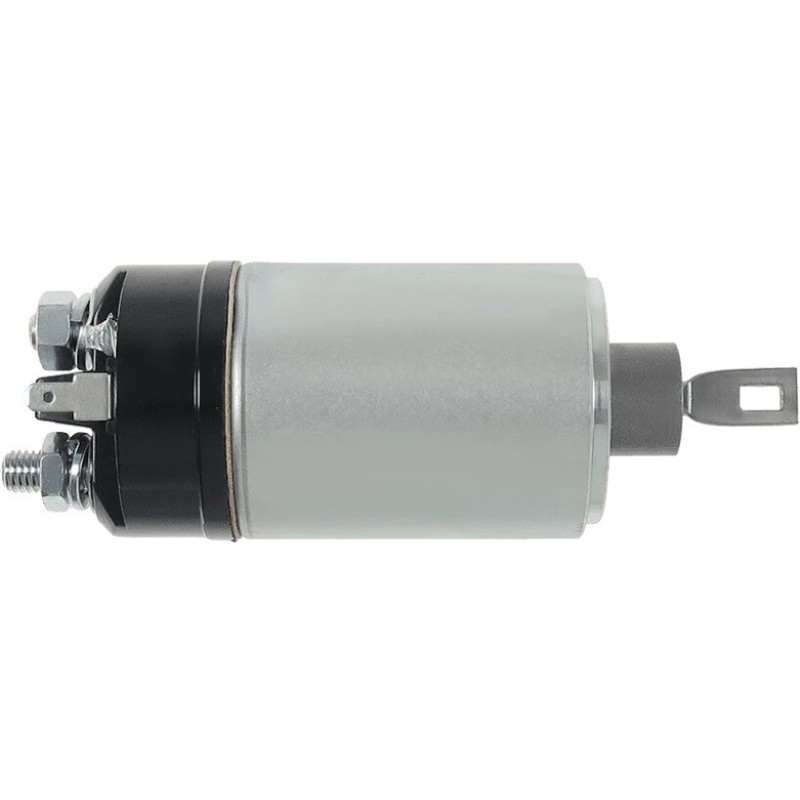

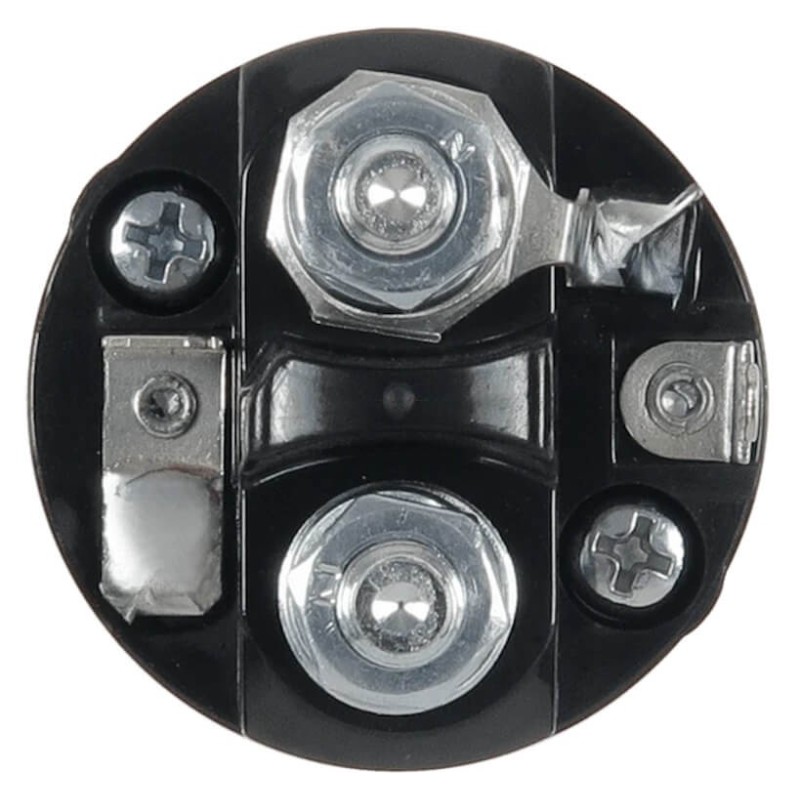

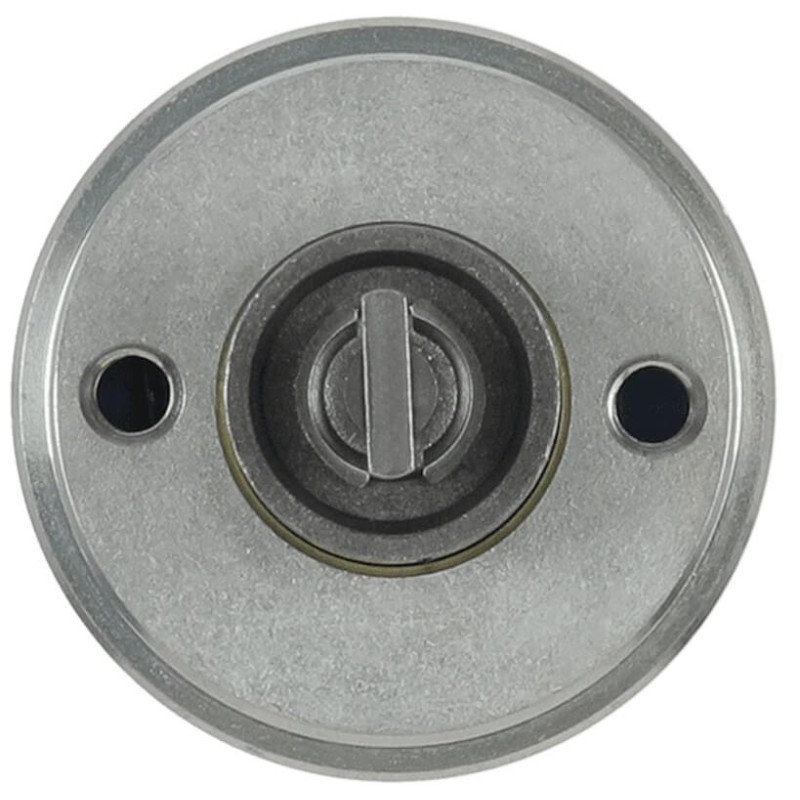

Solenoid for starter BOSCH 0001208006 / 0001208007 / 0001208014
Relay / Solenoid for starter BOSCH 0331302543 / 0331302052 / 0331302043 / 0331302034 0331302030 / 0331302027 / 0331302025 / 0331302011
More info
Information:

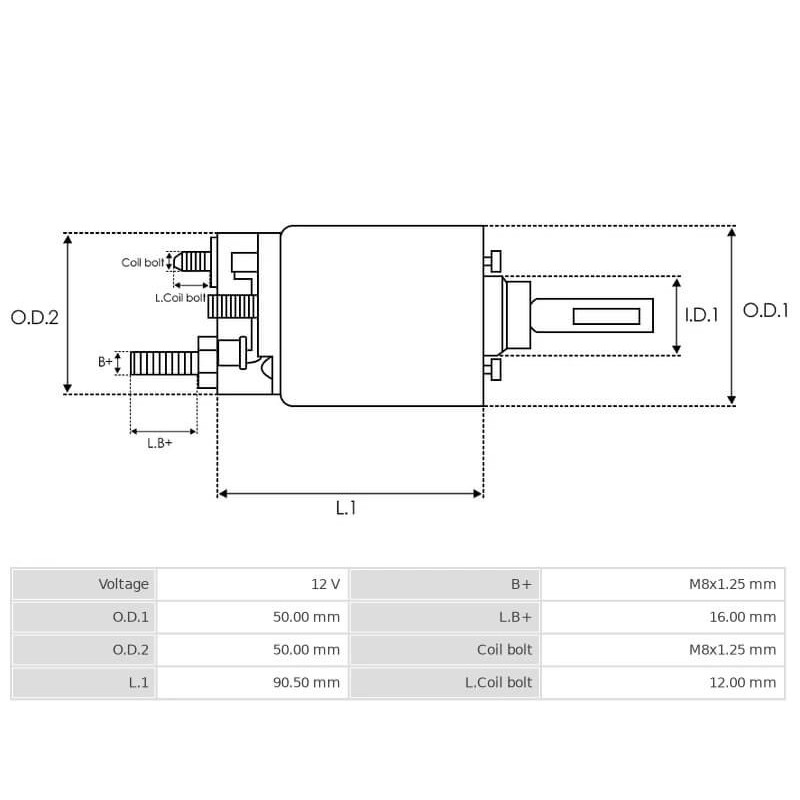

Physical Information | ||
|---|---|---|
| A | DE mm | 50.85 |
| B | Total length mm | 146.70 |
Support | ||
|---|---|---|
| M | Bolt Coil | M8 |
| D | OD/cover mm | 49.70 |
| G | B+ | M8 |
| H | Height/B+ | 17.15 |
| K | Kl. 50/mm | 6.30 |
| N | Bolt Coil l. | 12.75 |
| L | Height/kl. 50 | 12.15 |
| No./terminals | 3 | |
Replacing | |
|---|---|
| 0331302011 | BOSCH |
| 0331302025 | BOSCH |
| 0331302027 | BOSCH |
| 0331302030 | BOSCH |
| 0331302034 | BOSCH |
| 0331302043 | BOSCH |
| 0331302052 | BOSCH |
| 0331302543 | BOSCH |
for starter BOSCH:
0001208006
0001208007
0001208014
0001208017
0001208018
0001208023
0001208024
0001208029
0001208032
0001211005
0001214002
