Rotor for alternator Lucas 24188 / 24188A / 24188C / 24316 / 24316A / 54022130

Display all pictures

Rotor for alternator Lucas 24188 / 24188A / 24188C / 24316 / 24316A / 54022130

Reference: w133845

Condition: New product

1 Item Items

Rotor for alternator :

24316	LUCAS
24316A	LUCAS
24374	LUCAS
54022301	LUCAS
54022351	LUCAS
54022373	LUCAS
54022394	LUCAS
54022396	LUCAS
54022429	LUCAS
54022512	LUCAS
54022513	LUCAS
54022515	LUCAS
54022516	LUCAS

More info

More info

generic brand

Replacing
54206600	Magneti Marelli
54206600	lucas
UEB104	lucas

for alternator :

A4001	AS-PL	24188	LUCAS	54022130	MAGNETI MARELLI
A4002	AS-PL	24188A	LUCAS	54022374	MAGNETI MARELLI
1668894	FORD	24188C	LUCAS	54022425	MAGNETI MARELLI
5021973	FORD	24230	LUCAS	54022459	MAGNETI MARELLI
5026721	FORD	24264	LUCAS	54022495	MAGNETI MARELLI
5026727	FORD	24293	LUCAS	54022564	MAGNETI MARELLI
5027810	FORD	24316	LUCAS	54022575	MAGNETI MARELLI
5027848	FORD	24316A	LUCAS	54022582	MAGNETI MARELLI
5029902	FORD	24374	LUCAS	54022649	MAGNETI MARELLI
5030668	FORD	54022301	LUCAS	54022689	MAGNETI MARELLI
6593477	FORD	54022351	LUCAS	54022690	MAGNETI MARELLI
864F10300FD	FORD	54022373	LUCAS	54022694	MAGNETI MARELLI
864F10300FE	FORD	54022394	LUCAS	54022720	MAGNETI MARELLI
864F10K359FC	FORD	54022396	LUCAS	633241316	MAGNETI MARELLI
864F10K359FD	FORD	54022429	LUCAS	63324188	MAGNETI MARELLI
864F10K359FE	FORD	54022512	LUCAS	63324264	MAGNETI MARELLI
864FX10K359FE	FORD	54022513	LUCAS	63324316	MAGNETI MARELLI
884F10K359AB	FORD	54022515	LUCAS	63324374	MAGNETI MARELLI
894F10300BA	FORD	54022516	LUCAS	63324402	MAGNETI MARELLI
894FX10300BA	FORD	54022537	LUCAS
894X10300AA	FORD	54022538	LUCAS
894X10300AE	FORD	54022539	LUCAS
89FX10300AA	FORD	54022547	LUCAS
89FX10300BA	FORD	54022555	LUCAS
914F10300AA	FORD	54022556	LUCAS
914F10K359AA	FORD	54022557	LUCAS
924F10300AB	FORD	54022558	LUCAS
924F10K359AB	FORD	54022569	LUCAS
924FX10K359AA	FORD	54022583	LUCAS
924X10300AB	FORD	54022588	LUCAS
954F10300AA	FORD	54022610	LUCAS
U88VG10K359AA	FORD	54022615	LUCAS
V94GB10300BB	FORD	54022708	LUCAS
V94GB10K359AC	FORD

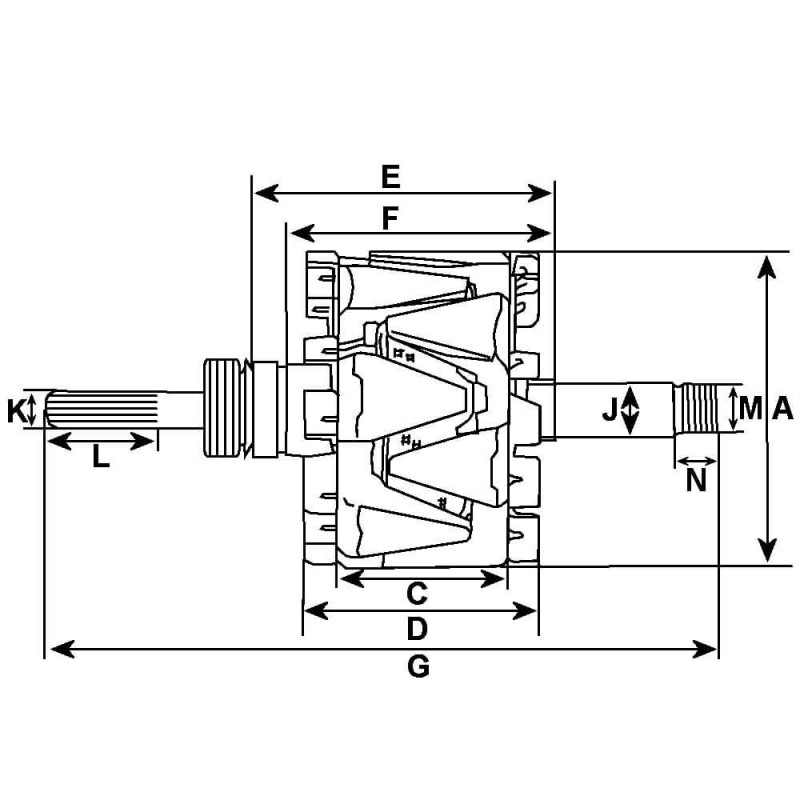

Core information
A	OD mm	89.50
C	Height mm	49.90
	Cooling fan	w/o
	Rotation	CW

Shaft information
G	Total length mm	202.00
J	Shaft dia.	17.00
	Splines	18
M	Thread size	9/16"
N	Thread length mm	22.50

Coil information
	Windings	400

Slip ring information
T	ID mm	17.00

Electrical information
	Voltage	14
	Amp	55
