Rectifier for alternator Bosch 0120468017 / 0120468018 / 0120468019
for alternator Bosch :
| 0120427988 |
| 0120468017 |
| 0120468018 |
| 0120468019 |
| 0120468020 |
| 0120468022 |
| 0120468024 |
| 0120468025 |
| 0120468026 |
| 0120468027 |
| 0120468029 |
| 0120468044 |
| 0120468052 |
| 0120468056 |
| 0120468068 |
| 0120468069 |
| 0120468070 |
| 0120468079 |
More info

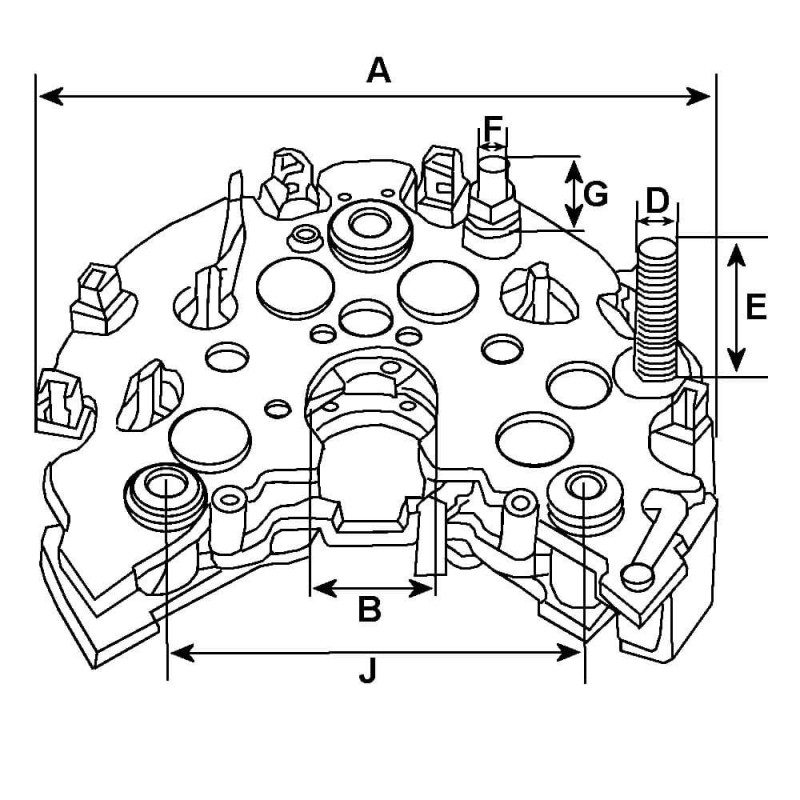

Physical information | ||
|---|---|---|
| A | OD mm | 120.00 |
| B | ID mm | 36.45 |
| J | Mount. dist. | 65.00 |
| B+ type | Screw | |
| D | B+/threaded | M8/33.00 |
| D+ type | Screw | |
| F | D+ threaded | M5/20.00 |
| Diode | w/ | |
| Terminals | 4 | |
| Diode Trio | w/ | |
| No. of diodes | 8 | |
Electrical information | ||
|---|---|---|
| Diode A | 35 | |
generic brand
Replacing | ||
|---|---|---|
| 1127320705 | Bosch | |
| 1127320715 | Bosch | |
| 1127320723 | Bosch | |
| 1127320725 | Bosch | |
| 1127320728 | Bosch | |
| 1127320732 | Bosch | |
| 1127320739 | Bosch | |
| 1127320749 | Bosch | |
| 1205453 | Opel | |
| 90349703 | Opel | |
| 90443928 | Opel | |
| 940038208 | Magneti Marelli | |
| 9944316 | Fiat | |
| RB-54H | Mobiletron | |
| UBB433 | Magneti Marelli | |
for alternator :
| A0070 | AS-PL | 0120469809 | BOSCH |
| A0111 | AS-PL | 0120469810 | BOSCH |
| 0120427988 | BOSCH | 0120469811 | BOSCH |
| 0120468017 | BOSCH | 0120469812 | BOSCH |
| 0120468018 | BOSCH | 0120469815 | BOSCH |
| 0120468019 | BOSCH | 0120469816 | BOSCH |
| 0120468020 | BOSCH | 0120469817 | BOSCH |
| 0120468022 | BOSCH | 0120469822 | BOSCH |
| 0120468024 | BOSCH | 0120469823 | BOSCH |
| 0120468025 | BOSCH | 0120469831 | BOSCH |
| 0120468026 | BOSCH | 0120469832 | BOSCH |
| 0120468027 | BOSCH | 0120469833 | BOSCH |
| 0120468029 | BOSCH | 0120469834 | BOSCH |
| 0120468044 | BOSCH | 0120469835 | BOSCH |
| 0120468052 | BOSCH | 0120469839 | BOSCH |
| 0120468056 | BOSCH | 0120469844 | BOSCH |
| 0120468068 | BOSCH | 0120469845 | BOSCH |
| 0120468069 | BOSCH | 0120469846 | BOSCH |
| 0120468070 | BOSCH | 0120469862 | BOSCH |
| 0120468079 | BOSCH | 0120469864 | BOSCH |
| 0120468101 | BOSCH | 0120469865 | BOSCH |
| 0120468106 | BOSCH | 0120469873 | BOSCH |
| 0120468108 | BOSCH | 0120469885 | BOSCH |
| 0120468109 | BOSCH | 0120469886 | BOSCH |
| 0120468112 | BOSCH | 0120469887 | BOSCH |
| 0120468121 | BOSCH | 0120469888 | BOSCH |
| 0120468123 | BOSCH | 0120469889 | BOSCH |
| 0120468125 | BOSCH | 0120469894 | BOSCH |
| 0120468126 | BOSCH | 0120469896 | BOSCH |
| 0120468141 | BOSCH | 0120469897 | BOSCH |
| 0120469002 | BOSCH | 0120469925 | BOSCH |
| 0120469003 | BOSCH | 0120469926 | BOSCH |
| 0120469011 | BOSCH | 0120469927 | BOSCH |
| 0120469012 | BOSCH | 0120469928 | BOSCH |
| 0120469016 | BOSCH | 0120469929 | BOSCH |
| 0120469017 | BOSCH | 0120469930 | BOSCH |
| 0120469588 | BOSCH | 0120469941 | BOSCH |
| 0120469589 | BOSCH | 0120469942 | BOSCH |
| 0120469590 | BOSCH | 0120469943 | BOSCH |
| 0120469591 | BOSCH | 0120469944 | BOSCH |
| 0120469617 | BOSCH | 0120469945 | BOSCH |
| 0120469618 | BOSCH | 0120469946 | BOSCH |
| 0120469619 | BOSCH | 0120469947 | BOSCH |
| 0120469641 | BOSCH | 0120469948 | BOSCH |
| 0120469642 | BOSCH | 0120469949 | BOSCH |
| 0120469648 | BOSCH | 0120469950 | BOSCH |
| 0120469649 | BOSCH | 0120469961 | BOSCH |
| 0120469667 | BOSCH | 0120469962 | BOSCH |
| 0120469676 | BOSCH | 0120469970 | BOSCH |
| 0120469677 | BOSCH | 0120469971 | BOSCH |
| 0120469690 | BOSCH | 0120469972 | BOSCH |
| 0120469709 | BOSCH | 0120469992 | BOSCH |
| 0120469725 | BOSCH | 0120469993 | BOSCH |
| 0120469726 | BOSCH | 0120469995 | BOSCH |
| 0120469729 | BOSCH | 0120469996 | BOSCH |
| 0120469730 | BOSCH | 0120469997 | BOSCH |
| 0120469731 | BOSCH | 0120469998 | BOSCH |
| 0120469732 | BOSCH | 0120496777 | BOSCH |
| 0120469743 | BOSCH | 0986033150 | BOSCH |
| 0120469744 | BOSCH | 0986033710 | BOSCH |
| 0120469745 | BOSCH | 0986034020 | BOSCH |
| 0120469746 | BOSCH | 0986034030 | BOSCH |
| 0120469757 | BOSCH | 0986035820 | BOSCH |
| 0120469758 | BOSCH | 0986036350 | BOSCH |
| 0120469759 | BOSCH | 0986036360 | BOSCH |
| 0120469777 | BOSCH | 0986036660 | BOSCH |
| 0120469778 | BOSCH | 0986037040 | BOSCH |
| 0120469779 | BOSCH | 0986038200 | BOSCH |
| 0120469780 | BOSCH | 0986038300 | BOSCH |
| 0120469782 | BOSCH | 0986038340 | BOSCH |
| 0120469783 | BOSCH | 1127320725 | BOSCH |
| 0120469790 | BOSCH | 9120690428 | BOSCH |
| 0120469799 | BOSCH | 9120690444 | BOSCH |
| 0120469800 | BOSCH | 9120690454 | BOSCH |
| 0120469801 | BOSCH | 9120690461 | BOSCH |
| 0120469802 | BOSCH | ||
| 0120469804 | BOSCH | ||
| 0120469805 | BOSCH | ||
| 0120469806 | BOSCH | ||
| 0120469808 | BOSCH |
