Rectifier for alternator LUCAS 063321310010 / 063321315010 / 063321316010
Rectifier for alternator LUCAS :
063321310010, 063321315010,063321316010, 063321328010, 063321331010,
063321332010, 063321340010, 063321349010
DENSO : 101210-0160 / 101210-0161 / 101210-0990 / 102211-8260 / 102211-8270 / 102211-8640 / 102211-8641
102211-8650 / 102211-8651
More info
Electrical information | ||
|---|---|---|
| Diode A | 50 | |

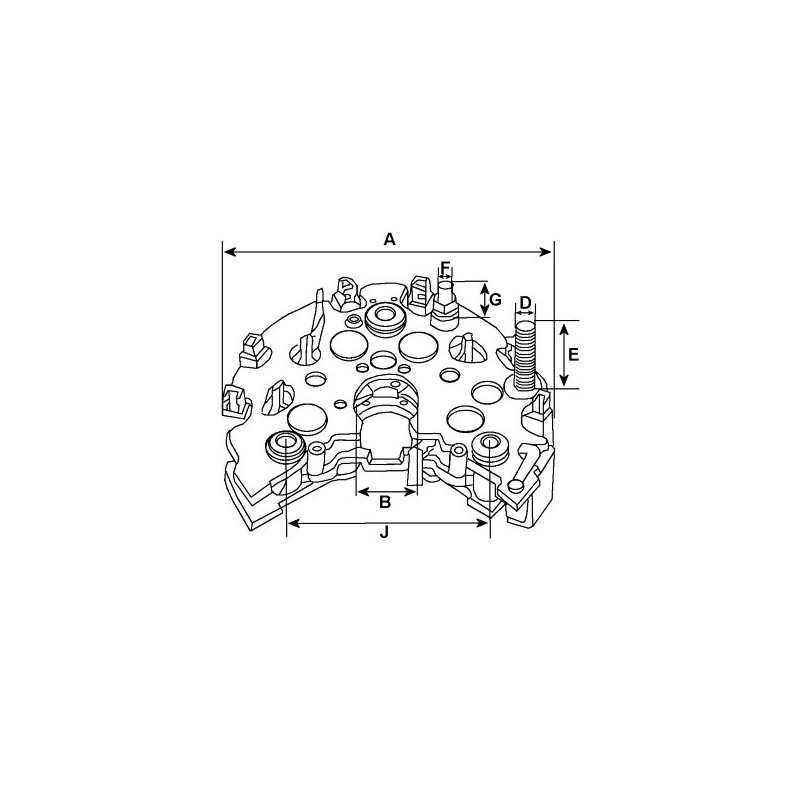

Physical Information | ||
|---|---|---|
| A | DE mm | 122.00 |
| B | DI mm | 70.00 |
| J | Mount. dist. | 85.00 |
| B+ type | Vis | |
| D | B+/Thread | M8/35.00 |
| Diode | Without | |
| Diode type | Avalanche | |
| Capacitor | Without | |
| Plug types | 5 | |
| Number of Diodes | 6 | |
generic brand
Replacing | ||
|---|---|---|
| 063624201010 | LUCAS | |
| 085552105010 | LUCAS | |
| 236578 | Cargo | |
| 63624201 | MAGNETI MARELLI | |
| 63624201 | LUCAS | |
| 63625801 | MAGNETI MARELLI | |
| RDD42 | MAGNETI MARELLI | |
| RDD42A | MAGNETI MARELLI | |
| RI-23H | Mobiletron | |
| UBB814 | LUCAS | |
for alternator :
| A4042 | AS-PL | 063321940010 | MAGNETI MARELLI |
| 101210-0160 | DENSO | 063377005010 | MAGNETI MARELLI |
| 101210-0161 | DENSO | 63320277 | MAGNETI MARELLI |
| 101210-0990 | DENSO | 63320333 | MAGNETI MARELLI |
| 102211-8260 | DENSO | 63321237 | MAGNETI MARELLI |
| 102211-8270 | DENSO | 63321246 | MAGNETI MARELLI |
| 102211-8640 | DENSO | 63321310 | MAGNETI MARELLI |
| 102211-8641 | DENSO | 63321315 | MAGNETI MARELLI |
| 102211-8650 | DENSO | 63321316 | MAGNETI MARELLI |
| 102211-8651 | DENSO | 63321328 | MAGNETI MARELLI |
| 063321310010 | LUCAS | 63321331 | MAGNETI MARELLI |
| 063321315010 | LUCAS | 63321332 | MAGNETI MARELLI |
| 063321316010 | LUCAS | 63321335 | MAGNETI MARELLI |
| 063321328010 | LUCAS | 63321340 | MAGNETI MARELLI |
| 063321331010 | LUCAS | 63321349 | MAGNETI MARELLI |
| 063321332010 | LUCAS | 63321355 | MAGNETI MARELLI |
| 063321340010 | LUCAS | 63321389 | MAGNETI MARELLI |
| 063321349010 | LUCAS | 63321390 | MAGNETI MARELLI |
| 063321355010 | LUCAS | 63321391 | MAGNETI MARELLI |
| 063321390010 | LUCAS | 63321395 | MAGNETI MARELLI |
| 063321391010 | LUCAS | 63321398 | MAGNETI MARELLI |
| 063321395010 | LUCAS | 63321401 | MAGNETI MARELLI |
| 063321398010 | LUCAS | 63321402 | MAGNETI MARELLI |
| 063321401010 | LUCAS | 63321418 | MAGNETI MARELLI |
| 063321402010 | LUCAS | 63321419 | MAGNETI MARELLI |
| 063321418010 | LUCAS | 63321423 | MAGNETI MARELLI |
| 063321419010 | LUCAS | 63321426 | MAGNETI MARELLI |
| 063321423010 | LUCAS | 63321436 | MAGNETI MARELLI |
| 063321426010 | LUCAS | 63321453 | MAGNETI MARELLI |
| 063321436010 | LUCAS | 63321461 | MAGNETI MARELLI |
| 063321453010 | LUCAS | 63321485 | MAGNETI MARELLI |
| 063321461010 | LUCAS | 63321489 | MAGNETI MARELLI |
| 063321485010 | LUCAS | 63321491 | MAGNETI MARELLI |
| 063321497010 | LUCAS | 63321497 | MAGNETI MARELLI |
| 063321804010 | LUCAS | 63321501 | MAGNETI MARELLI |
| 063377490010 | LUCAS | 63321506 | MAGNETI MARELLI |
| 063377491010 | LUCAS | 63321507 | MAGNETI MARELLI |
| 54022669 | LUCAS | 63321792 | MAGNETI MARELLI |
| 63321800 | MAGNETI MARELLI | ||
| 63321801 | MAGNETI MARELLI | ||
| 63321802 | MAGNETI MARELLI | ||
| 63321803 | MAGNETI MARELLI | ||
| 63321804 | MAGNETI MARELLI | ||
| 63321805 | MAGNETI MARELLI | ||
| 63321806 | MAGNETI MARELLI | ||
| 63321814 | MAGNETI MARELLI | ||
| 63321815 | MAGNETI MARELLI | ||
| 63321816 | MAGNETI MARELLI | ||
| 63321827 | MAGNETI MARELLI | ||
| 63321838 | MAGNETI MARELLI | ||
| 63321858 | MAGNETI MARELLI | ||
| 63321940 | MAGNETI MARELLI | ||
| 63377004 | MAGNETI MARELLI | ||
| 63377005 | MAGNETI MARELLI | ||
| 63377490 | MAGNETI MARELLI | ||
| 63377492 | MAGNETI MARELLI |
