Rectifier for alternator DENSO 100211-1280 / 100211-1520 / 100211-1550 / 100211-1280 / 100211-1520 / 100211-1550 / 100211-1560 / 100211-1570 / 100211-1571 / 100211-1580 / 100211-1590 / 100211-3370 / 101211-2380

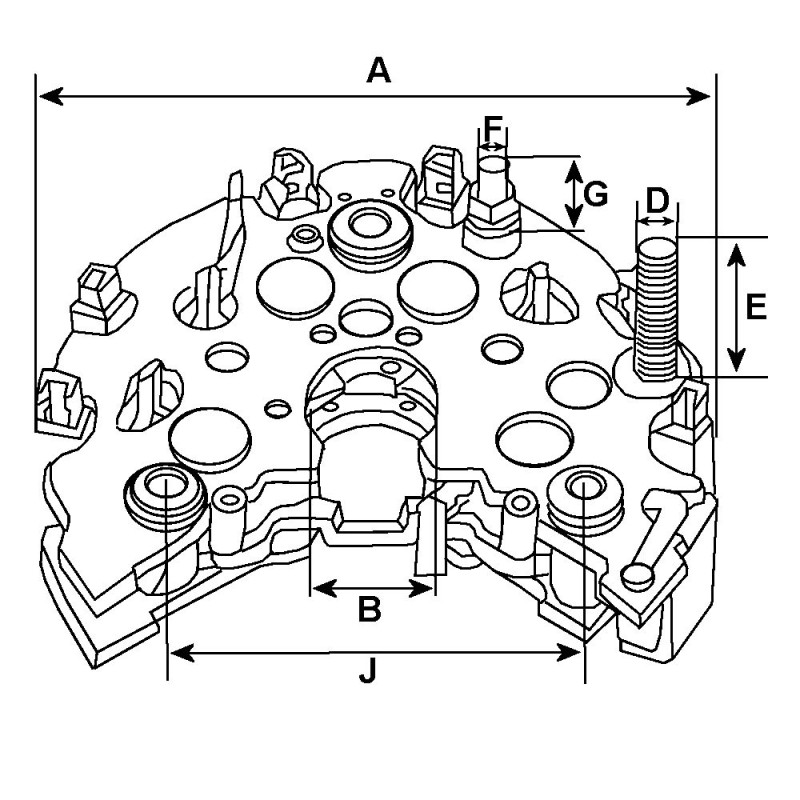

Physical Information | ||
|---|---|---|
| B+ type | Bolt | |
| A | DE mm | 88.00 |
| J | Mount. dist. | 58.55 |
| D | B+/Thread | M6/44.00 |
| Capacitor | Without | |
| Number of Diodes | 8 | |
| DiodeA | 70 | |
| Remarks | With Terminal W | |
Replacing | |
|---|---|
| 021580-3130 | DENSO |
| 021580-3340 | DENSO |
| 021580-4310 | DENSO |
| 021580-4340 | DENSO |
| 27357-72120 | TOYOTA |
| 27357-72150 | TOYOTA |
| 27375-72150 | TOYOTA |
CATERPILLAR 1142869
DAIHATSU Motor Co 27357-87708-000
GM 94455159, 96051992
HONDA 31127-PZ1-J01
ISUZU 8-97046-338-0, 8941357540, 8944551590, 8944551650
SUZUKI 31621-86510
generic brand
Used on :
CATERPILLAR Ag. & Ind. (1991-2014) , CHEVROLET (1985-1991) , DAIHATSU (1988-1992) , DAIHATSU - Europe (1989-1998) , Geo (1989-1995) , Hino (1984-1995) , ISUZU (1984-1995) , MERCURY (1994-2000) , OPEL - Europe (1994-1998) , PONTIAC (1985-1995) , Rigmaster Power Inc. (2004-2009) , SUZUKI (1985-1995) , SUZUKI - Europe (1983-1995) , TOYOTA (1987-2007) , TOYOTA - Europe (1984-1999)
For Alternator :
CARRIER TRANSICOLD 961012K;
CATERPILLAR 0R4327, 0R9273, 105-2811, 105-2812, 144-9952, 144-9954, OR-9700;
DAIHATSU Motor Co 27060-87603, 27060-87603-000, 27060-87706-000, 27060-87710-000, 27060-87714, 27060-87721, 2706087605000, 2706087606000, 2706087608000, 2706087714000, 2706087721000
DELCO REMY 96068024
DENSO 100211-1410, 100211-1411, 100211-1430, 100211-1440, 100211-1550, 100211-1551, 100211-1560, 100211-1570, 100211-1571, 100211-1620, 100211-4070, 100211-4071, 100211-4110, 100211-4111, 100211-4130, 100211-4131, 100211-4150, 100211-4160, 100211-4170, 100211-4171, 100211-4260, 100211-4290, 100211-4320, 100211-4350, 100211-4351, 100211-4410, 100211-6270, 100211-6600, 100211-6720, 100211-6810, 100211-6860, 100211-6870, 100211-6930, 100211-6931, 100211-6940, 100211-6941, 100211-6950, 100211-6951, 100211-6960, 100211-6961, 100211-6970, 100211-6990, 100211-9310, 100211-9430, 100211-9431, 100213-0810, 100213-0811, 100213-0812, 101211-2020, 101211-2021, 101211-2022, 101211-2100, 101211-2130, 101211-2240, 101211-2310, 101211-2360, 101211-2770, 101211-2780, 101211-3020, 101211-3021, 101211-3030, 101211-3170, 101211-3380, 101211-3400, 101211-3580, 101211-3680, 101211-3730, 101211-3731, 101211-3860, 101211-8580, 101211-8810, 121000-2750, 121000-2751, 9761211-202
GM 94449781, 94462986, 96030337, 96055601, 96056770, 96056922, 96060337, 96068024
Hino 27020-1290A, 27020-1810A, 27020-1811A, 27040-1290, 27040-1290A, 27050-1290A;
HONDA 31100-PJ7-003, 31100-PJ7-013, 31100-PJ7-0132, 31100-PJ7-0134, 31100-PZ3-0130, CGE22;
HYSTER 3142305;
ISHIKAWAJIMA 18504-6470;
ISUZU 2911232180, 8-94462-986-1, 8941012551, 8944497810, 8944497811, 8944629860, 8970428521, 8970428522, 8971211930;
MERCURY MARINE 821663, 821663-1, 821663-A1, 828506;
SUZUKI 31400-60A84, 31400-60B11, 31400-60B40, 31400-82611, 31400-83010, 31400-86010, 31400-86210, 31400-86510, 3140060B4, 3140060BA0, 3140060V40, 3140080E00;
TOYOTA 27040-10010, 27060-10030, 27060-10050, 27060-10051, 27060-10070, 27060-10071, 27060-10080, 27060-10100, 27060-10100, 27060-11080, 27060-11250, 27060-11250-84, 27060-11260, 27060-58010, 27060-58070, 27060-72080, 27060-72081, 27060-72111, 27060-72140, 27060-72141, 27060-76305, 27060-78153-71, 27060-78156, 27060-78156-71, 27060-78201-71, 27060-78202-71, 27060-78203-71, 27060-78304, 27060-78304-71, 27060-78305, 27060-78305-71, 27060-87603, 27070-23001, 27070-23001-71, 27070-23041, 27070-23041-71, 27070-23061-71, 27070-31720-71
VALEO TA000B43801Z
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
