Pulley for alternator DENSO 101210-0950 / 101210-0951 / 101210-0960

Information:

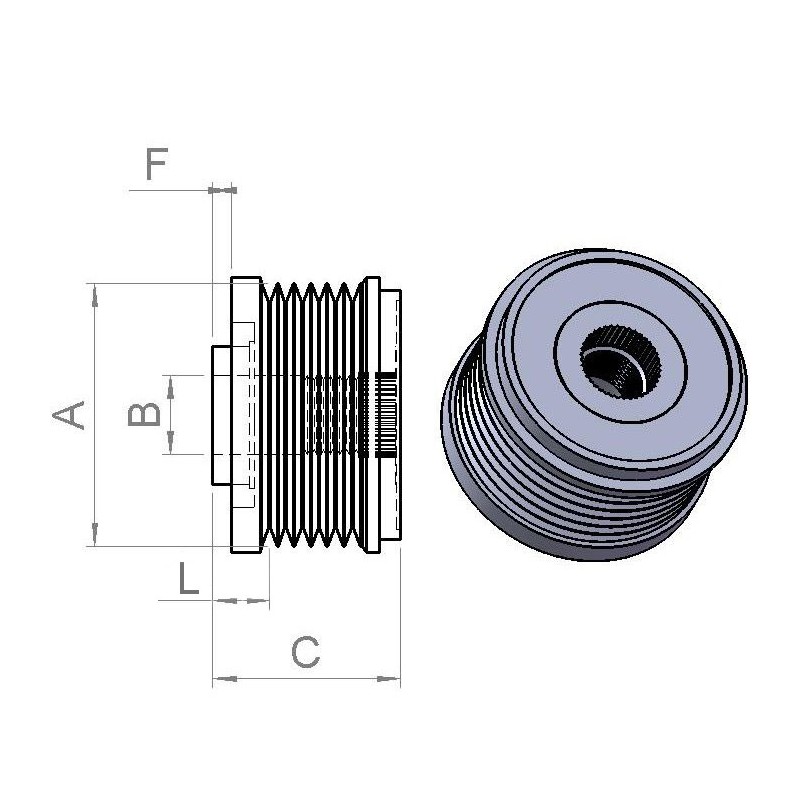

A = DE mm 54.00

E = Depth mm 14.00

C = Height mm 37.40

Pulley type Serpentine Pulley/ Freewheel pulley

Grooves 6

Belt type Multi Belt

Fan Without

Free run With

B = Bore dia. 17.00

F = Distance / Back 4.30

Thread size M17-1.5

Rotation Clockwise

L = Measurement 1. groove 9.00

= DENSO 121041-0580

= Luk 5350151000 / 535015110 / 535019210

= INA F-557928 / F-557928.01

= IKA 335961 / 353901

for alternator DENSO :

101210-0950

101210-0951

101210-0960

101210-0961

101210-0970

101210-0971

101210-1120

101210-1190

102211-8610

102211-8620

102211-8630

for alternator MAGNETI MARELLI :

063377423010
063377424010
063377425010
63377423
63377424
63377425
63377495
