Pulley for alternator BOSCH 0120000024 / 0121615002 / 0125811009

Information:

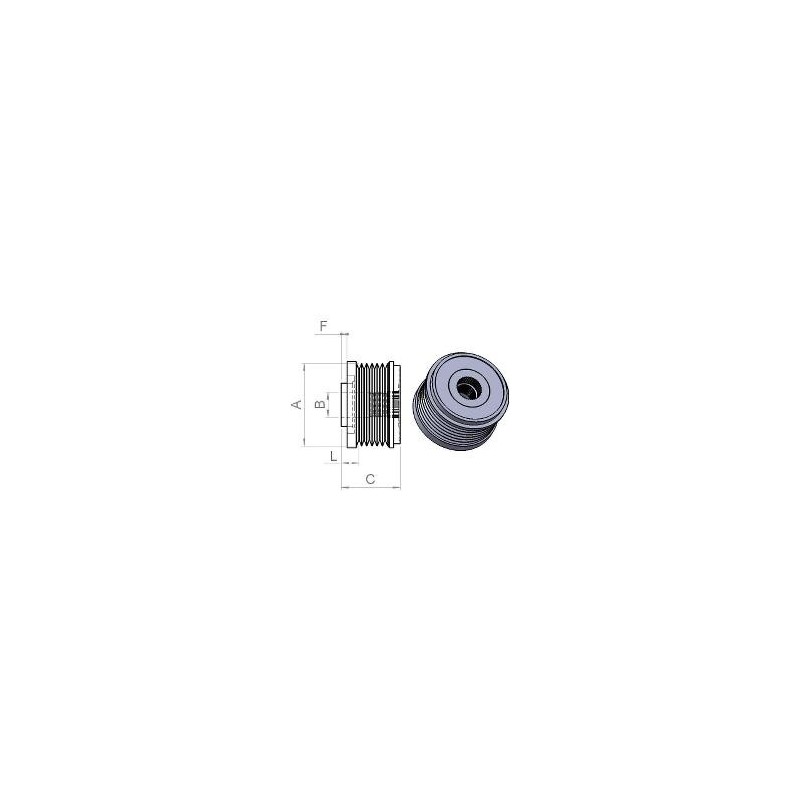

A = DE mm 58.70

E = Depth mm 11.10

C = Height mm 36.30

Pulley type Serpentine Pulley/ Freewheel pulley

Grooves 6

Belt type Multi Belt

Fan Without

Free run With

B = Bore dia. 17.00

F = Distance / Back -1.50

Thread size M16-1.50

Rotation Clockwise

L = Measurement 1. groove 8.00

brand wai

BOSCH F00M349877, F00M391107, F00M391118, F00M391120, F00M599403, F00M599496, F00M349877, F00M391107, F00M391118, F00M391120, F00M599403

FIAT 77364082

INA Bearing Co 535 0160 10, F-230866.11, F-554766, F-554766.01, F-554766.1

VALEO 588033

fits alternator :

AUDI / VOLKSWAGEN 03L 903 024 F, 03L 903 024 FX, 03L-903-023R, 03L-903-023RX

BOSCH 0 120 000 024, 0 121 615 002, 0 125 711 001, 0 125 711 017, 0 125 711 058, 0 125 711 059, 0 125 711 101, 0 125 711 102, 0 125 711 131, 0 125 811 005, 0 125 811 006, 0 125 811 009, 0 125 811 013, 0 125 811 014, 0 125 811 020, 0 125 811 021, 0 125 811 027, 0 125 811 028, 0 125 811 029, 0 125 811 034, 0 125 811 036, 0 125 811 051, 0 125 811 052, 0 125 811 083, 0 125 811 091, 0 125 811 092, 0 125 811 109, 0 125 811 110

CITROEN 9676143580; FIAT 965814468, 9658144680, 965991808, 9659918080, 9674987580, 967614358, 9677608580, 9678867980; FORD 1352430, 1404791, 1572736, 1581843, 1712779, 1745661, 1747021, 1762862, 1768612, 1797966, 1874991, 1889371, 2073243, 4M5T10300AB, 6C1T-10300-BA, 6C1T-10300-BB, 6C1T-10300-BC, 6C1T-10300-BD, AC1T-10300-BA, AC1T-10300-BB, BJ32 10300 CB, BK2T 10300 DB, BK2T-10300-BB, BK2T-10300-DA, BK2T-10300-DB, CC1T 10300 BD, CC1T-10300-BA, CC1T-10300-BB, CC1T-10300-BC, REAC1T-10300-BB

FORD ENGINEERING 6C1T-BA, 6C1T-BB, 6C1T-BC; JAGUAR BJ32 10300 CA, BJ32 10300 CB

LAND ROVER BJ32 10300 CA, BJ32 10300 CA, BJ32 10300 CB, BJ32 10300 CB, BJ32-10300-CA, BJ32-10300-CC, LR0 28121, LR0 31027, LR028121, LR031223, LR031223, LR067840

MAGNETI MARELLI 063536151210, 063537110590

PSA PEUGEOT CITROEN 1609842580, 5705 EA, 9674987580, 9677608580; VOLVO 30644805, 30659131, 30659136, 36000209, 36001341, 36001341-0, 36012382, 36012619, 36012619-0
