Freewheel Pulley INA F-226804.04 / F-226804.5 / F-226804.6 for alternator Bosch
for alternator Bosch :
| 0123310035 |
| 0123310039 |
| 0123310049 |
| 0123320031 |
| 0123320032 |
| 0123320037 |
| 0123320059 |
| 0123505018 |
| 0123510047 |
| 0123510099 |
| 0123515018 |
| 0123515021 |
| 0123525001 |
More info

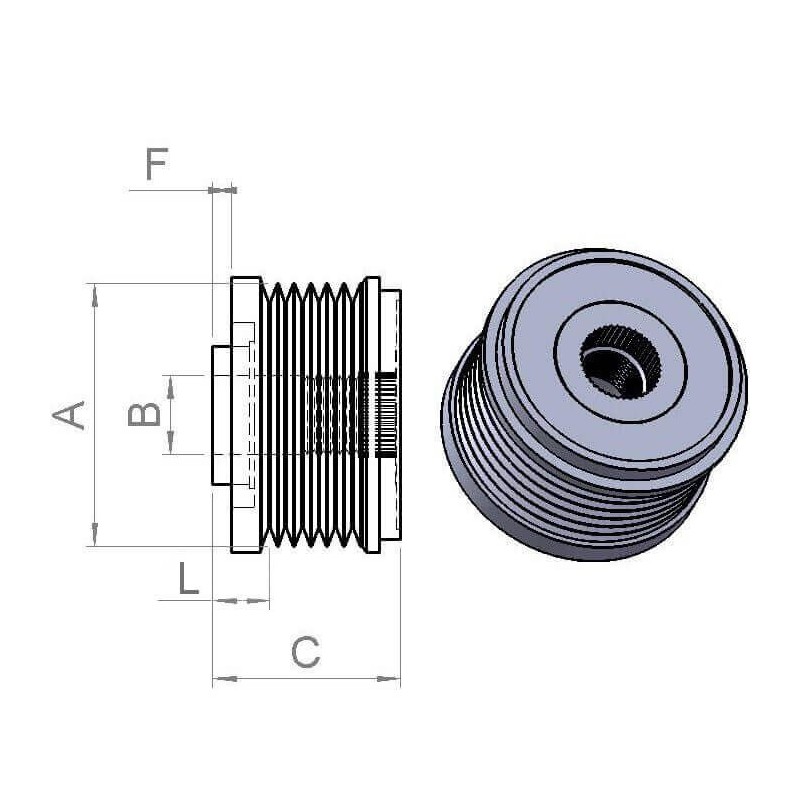

Physical information | ||
|---|---|---|
| Rotation | CW | |
| A | OD mm | 55.90 |
| C | Width mm | 41.00 |
| B | Bore dia. | 17.00 |
| Thread size | M16-1.50 | |
| E | Depth mm | 16.00 |
| F | Dist./back | 1.00 |
| Pulley type | SP/FW | |
| Grooves | 6 | |
| Belt type | Multi Belt | |
| Free run | w/ | |
| Blower | w/o | |
| L | Measurement 1. groove | 14.60 |
Replacing | ||
|---|---|---|
| 038903119 | Volkswagen | |
| 038903165 | Volkswagen | |
| 1126601559 | Bosch | |
| 1127011844 | Bosch | |
| 1127011845 | Bosch | |
| 16.907.299 | Mahle Letrika | |
| 335161 | Ika | |
| 5350010000 | Luk | |
| 535001010 | Luk | |
| 85-42-02 | Visnova | |
| F00M991388 | Bosch | |
| F-226804.04 | Ina | |
| F-226804.05 | Ina | |
| F-226804.07 | Ina | |
| F-226804.09 | Ina | |
| F-226804.4 | Ina | |
| F-226804.5 | Ina | |
| F-226804.6 | Ina | |
| F-226804.7 | Ina | |
for alternator :
| A0233 | AS-PL |
| 0123310032 | BOSCH |
| 0123310034 | BOSCH |
| 0123310035 | BOSCH |
| 0123310039 | BOSCH |
| 0123310049 | BOSCH |
| 0123320031 | BOSCH |
| 0123320032 | BOSCH |
| 0123320037 | BOSCH |
| 0123320059 | BOSCH |
| 0123505018 | BOSCH |
| 0123510047 | BOSCH |
| 0123510099 | BOSCH |
| 0123515018 | BOSCH |
| 0123515021 | BOSCH |
| 0123525001 | BOSCH |
| 0986040860 | BOSCH |
| 0986041000 | BOSCH |
| 0986041010 | BOSCH |
| 0986046010 | BOSCH |
| F042301050 | BOSCH |
| 98VW10300BA | FORD |
