Pinion / drive
= FIAT 4169960 / 4226442 / 4474695 / 4475032
= MAGNETI MARELLI 74871431 / 74827301
= Zen 0608
Information:
Splines A 6
Nbr of teeth 9

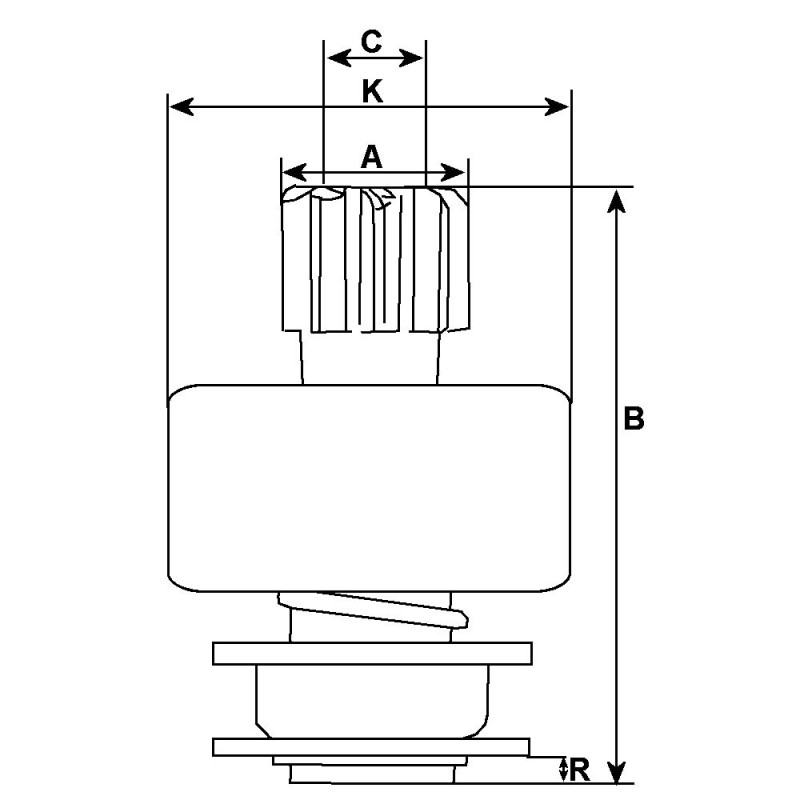

A = DE mm 34.88
B = Total length mm 83.35
K = DE/house mm 60.00
Rotation Cr
C = DI mm 17.00
generic brand
for starter FIAT :
4169912
4172004
4172113
4187587
4187590
4232191
4234741
4269114
for starter MAGNETI MARELLI :
63224170
63224500
63224580
63224600
63224602
M125M3-Z9-3/12
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
