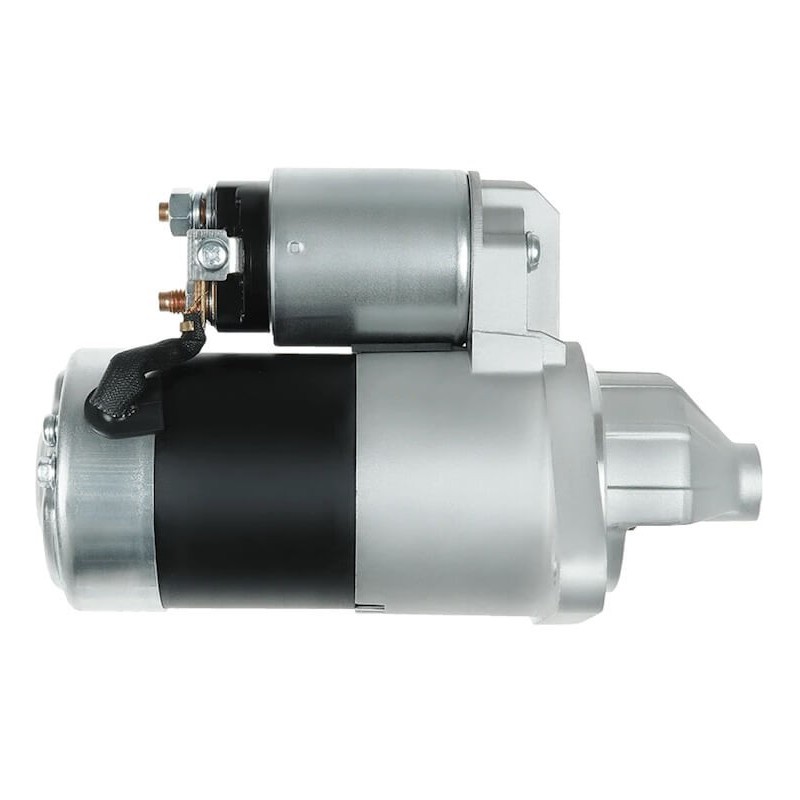

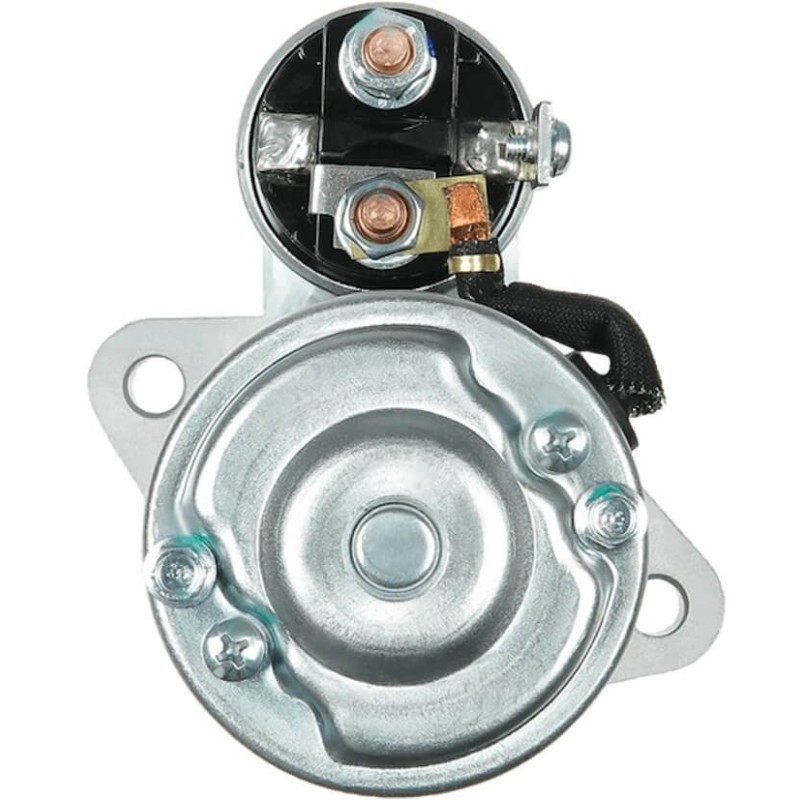

Starter for YANMAR
= YANMAR 128170-77010 / 128170-77010d
= HITACHI S114-303 / S114-303a
Engine / Engine 1GM / 1GM10 / 2GM / 2GM20 / 2GMF / 2QM30 / 3GM / 3GM30 / 3GMD / 3GM30
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.0 | |
Physical Information | ||
|---|---|---|

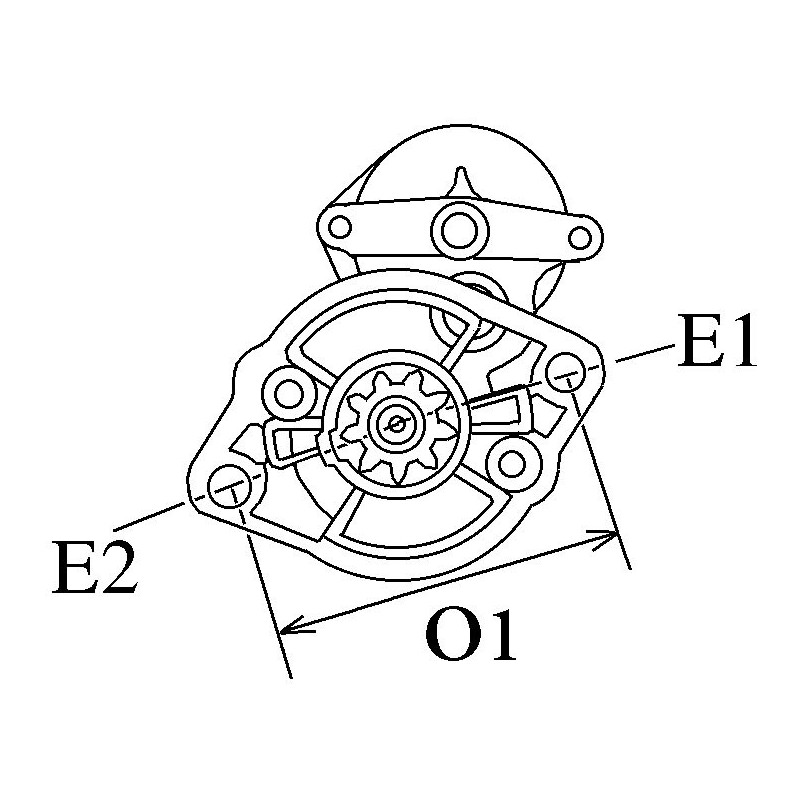

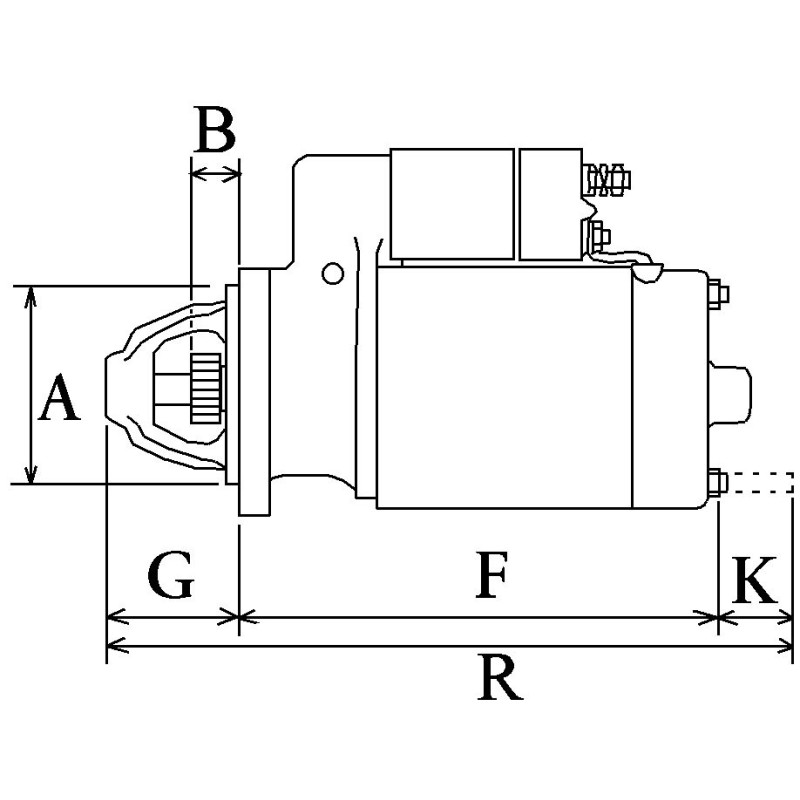

| A | Mount flange | 70.00 |
| E | Mounting holes | 10.70 |
| E | Mounting holes 2 | 10.70 |
| B | Drive distance | 17.50 |
| F | Distance / Back | 150.00 |
| G | Distance / Front | 52.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Dd/gr |
| O | Distance mm | 109.70 |
| P | Rotation | CW |
| R | Total length mm | 206.00 |
Generic brand
fits :
|
Motor |
Typ |
|
YANMAR |
1GM |
|
YANMAR |
2GM |
|
YANMAR |
3GM |
|
YANMAR Marine |
1GM |
|
YANMAR Marine |
1GM10 |
|
YANMAR Marine |
20GM |
|
YANMAR Marine |
2GM |
|
YANMAR Marine |
2GM20 |
|
YANMAR Marine |
2GMF |
|
YANMAR Marine |
30GM |
|
YANMAR Marine |
3GM30 |
|
YANMAR Marine |
3GMD |
|
YANMAR Marine |
3GMF |
|
YANMAR Marine |
GMF |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Joao L.
Identical to the original, except for the small excitation screw, which is larger than the original, but can be easily adapted by drilling into the original lug. (Translated review)
Acheteur Vérifié
(Translated review)
Acheteur Vérifié
Faithful to the product ordered, very interesting price for a new product, very satisfied. (Translated review)
Acheteur Vérifié
Excellent (Translated review)
Acheteur Vérifié
Not marine grade at all. Too bad for a specific marine starter. So disassembled, varnished, then primed and painted, external connectors to be checked over time, as well as starter contacts. (Translated review)
